Icron USB 3.0 Spectra 3022 Quick Start Manual

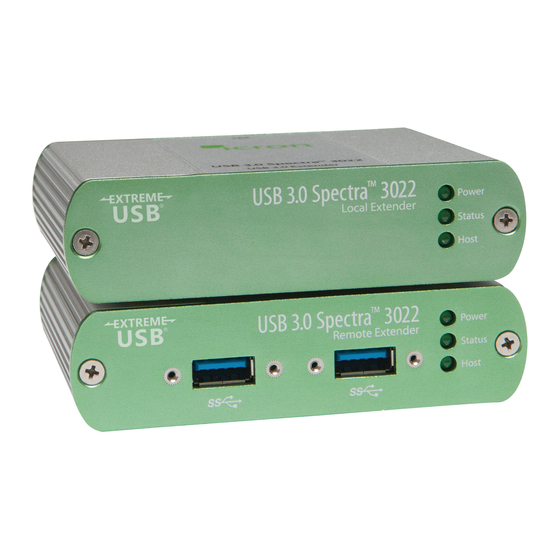

USB 3.0 Spectra ™
2-Port USB 3.0 Multimode Fiber Extender
Quick
Start
Guide
For additional details on configuration
and operation of your USB 3.0 Spectra
3022, refer to the complete user guide
available online at:
icron.com/3022
For technical support with your
Spectra 3022 product, contact:
icron.com/support
icron.com
Icron's USB and Video
Extension Solutions
Machine Vision
KVM Extension
Pro AV
Medical Imaging
Industrial Automation
Digital Projection
90-01059-A02

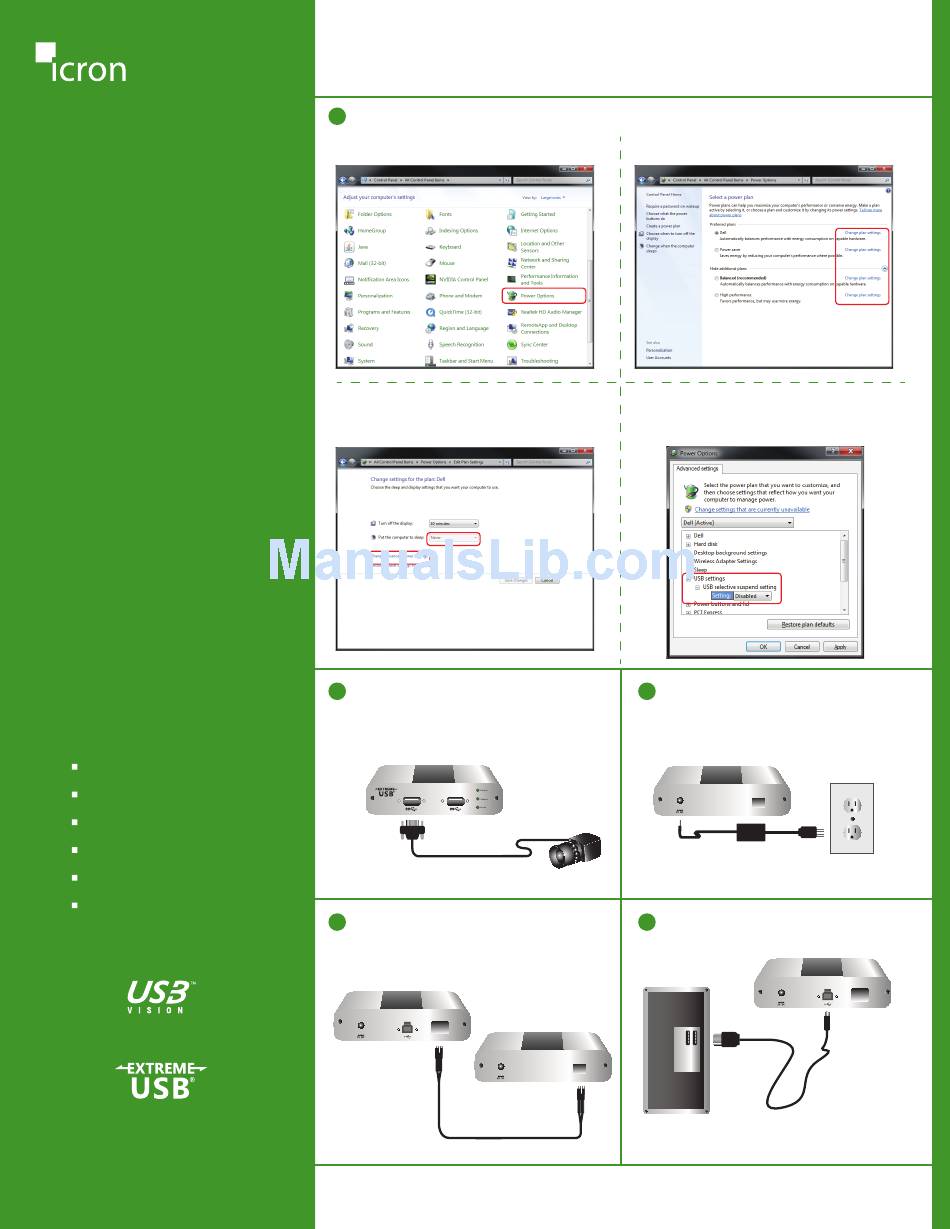

Before you get started, ensure that all the drivers required for your USB device(s) are installed.

Disable Suspend settings on your computer.

1 1
3022
a. For Windows 7 or 8 open the Control Panel,
then select Power Options.
c. Select Never for Put the computer to sleep
for all the configurations presented.
Then click Change advanced power settings.
Place the REX (Remote Extender) unit
2
where desired and attach the USB 3.0
device(s) to the REX.
REX (front view)
Note: USB3 Vision locking USB connectors supported.
Directly connect the LEX (Local Extender)
4
1
and REX units with a duplex LC-LC crossover
multimode fiber cable (not included).
LEX (rear view)
Max. distance between LEX and REX is 100m (330 ft)
LEX = Local Extender, REX = Remote Extender
USB 3.0 Spectra ™ 3022
Remote Extender
Link
Link
OM3 Multimode Fiber
b. For each of the plans listed click on
Change plan settings.
d. Expand USB settings.
Expand USB selective suspend setting.
Select Disabled for all options listed.
Power the REX with the included
3
5V AC adapter. and tighten the
locking ring.
REX (rear view)
Link
Connect the LEX to a computer with
5
the included USB cable.
Computer
Note: Power adapter is not required at LEX for operation.
Link
