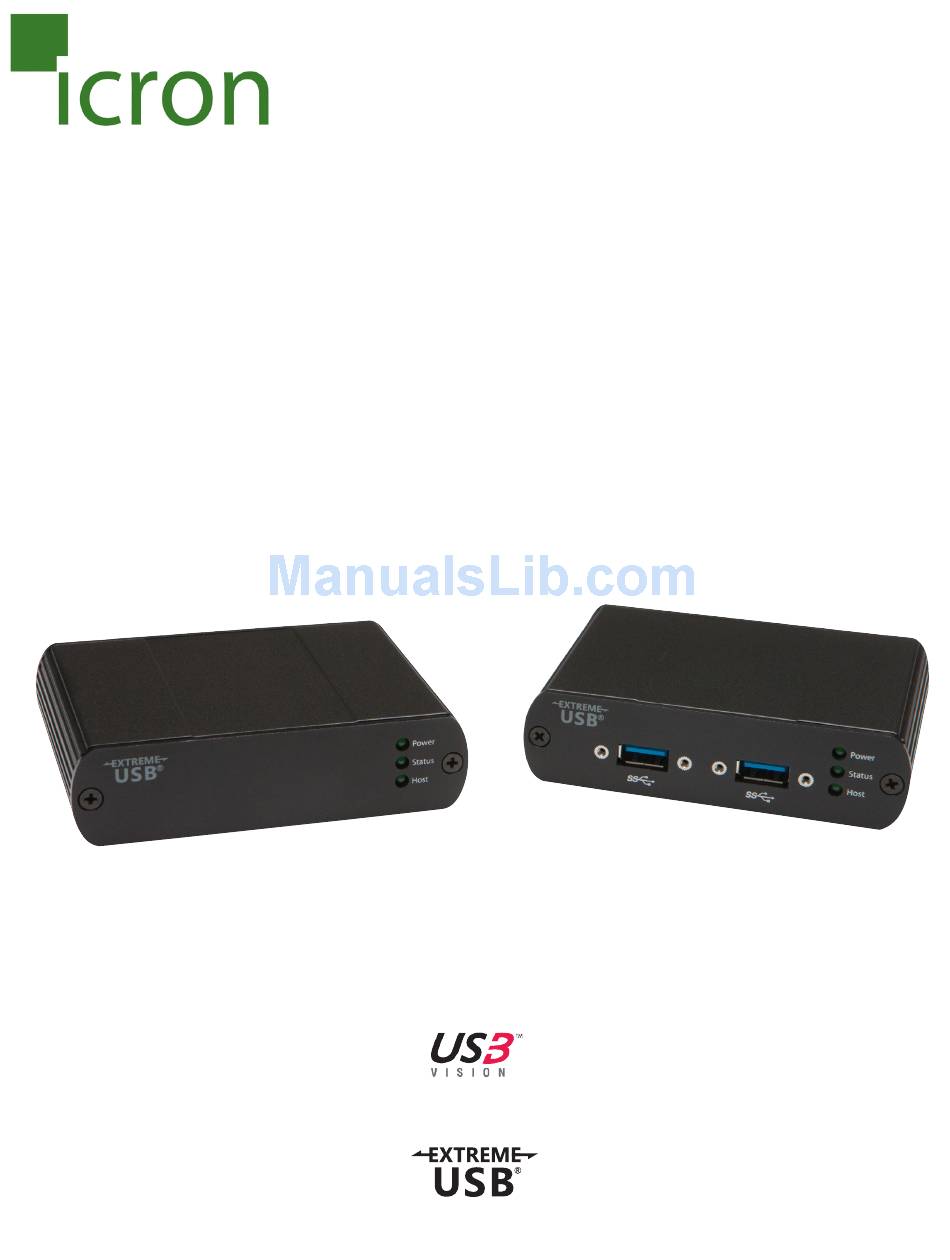

Page 1: User Guide
USB 3.0 SP3022 2-Port USB 3.0 100m Multimode Fiber Extender System User Guide... - Page 2 CE Statement We, Icron Technologies Corporation, declare under our sole responsibility that the Spectra 3022, to which this declaration relates, is in conformity with European Standard EN 55022, EN 55024, EN 61000-3-2, and EN 61000-3-3.
-
Page 3: Table Of Contents
Contents Introduction ......................3 SP3022 Product Contents......................... 3 Features ..............................3 The Local Extender ..........................4 The Remote Extender ........................5 Installation Guide ....................6 Requirements ............................6 Fiber Optic Link Cabling........................6 Installing the SP3022 System ......................7 Preparing Your Site ..........................7 Preparing Your Computer......................... -
Page 4: Introduction
Quick Start Guide and Warranty Information Features The SP3022 incorporates Icron’s patented ExtremeUSB® technology, enabling users to extend beyond the standard 3m cable limit for USB 3.0 peripheral devices. With the SP3022, USB 3.0 devices can be located up to 100 meters from the computer. -
Page 5: The Local Extender

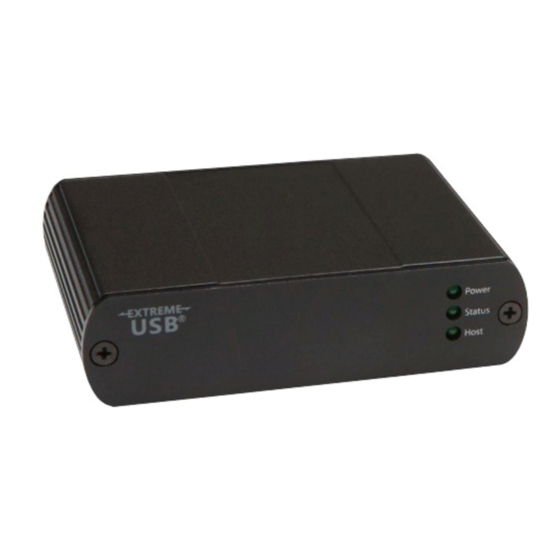

The Local Extender The Local Extender connects to the computer using a standard USB 3.0 cable. Power for this unit is provided by the USB on the host computer. Front View Rear View ITEM TYPE DESCRIPTION Power ON Unit is powered properly. Power OFF Unit is not powered or not powered properly. -
Page 6: The Remote Extender
The Remote Extender The Remote Extender provides USB Type A ports for USB 3.0 devices. The Remote Extender allows you to connect up to two USB 3.0 devices directly. The Remote Extender is powered by an external AC adapter and can supply up to 900mA to each USB port. -
Page 7: Installation Guide
Installation Guide Example Application USB 3.0 Camera USB 3.0 up to 100m Computer & Monitor over multimode ber Local Extender Remote Extender Assembly Line Requirements To complete installation of the SP3022, you will also require the following items that are not included with the product: •... -
Page 8: Installing The Sp3022 System
Installing the SP3022 System Preparing Your Site Before you can install the SP3022, you need to prepare your site: Determine where the computer is to be located and set up the computer. Determine where you want to locate the USB device(s). Ensure fiber optic cabling is in place, prepared, properly terminated, and within the maximum distances as defined for the cabling standard used. - Page 9 For each of the plans listed: a. Click on Change Plan Settings Select “Never” for “Put the computer to sleep” for all the configurations presented. a. Click Change advanced power settings.
- Page 10 b. Expand “USB settings” c. Expand “USB selective suspend setting” Select “Disabled” . OS X To disable “suspend” settings on your computer: Open System Preferences and select Energy Saver.
- Page 11 For both Battery and Power Adapter power settings, move slider bar to “Never” for “Computer Sleep” . In the popup warning window, click OK.
-
Page 12: Connecting A Usb 3.0 Device
Connecting a USB 3.0 Device Install any software required to operate the USB device(s). Refer to the documentation for the USB device(s), as required. Connect the USB device to the device port on the Remote Extender. If you are using a USB3 Vision compliant locking USB cable, then you can use the locking knobs to lock the cable to the port on the Remote Extender. -
Page 13: Checking The Installation
Open the Start menu, right click on “Computer” then select: Manage >> Device Manager Compatibility The SP3022 complies with USB 3.0 specifications governing the design of USB devices. However, Icron Technologies Corporation does not guarantee that all USB 3.0 devices are compatible with the SP3022, as there are a number of different configurations that may impact the operation of USB 3.0 devices over... -
Page 14: Troubleshooting
Troubleshooting The following table provides troubleshooting tips. The topics are arranged in the order in which they should be executed, in most situations. If you are unable to resolve the problem after following these instructions, please contact Technical Support for further assistance. PROBLEM CAUSE SOLUTION... - Page 15 PROBLEM CAUSE SOLUTION Host LED on Local/ • The host computer is not 1. Disconnect all USB devices from the Remote Remote Extendes powered on. Extender. are off. • The Local Extender is not 2. Disconnect the Local Extender from the connected to the computer computer.
-
Page 16: Contacting Technical Support
Contacting Technical Support IIf you are experiencing problems not referenced in the Troublehooting Guide, contact Technical Support at the company where you purchased this product and provide them with the following information: • Host computer make and model • Type of Operating System installed (e.g. Windows XP, Mac OS X, Windows 7 etc.) •... -
Page 17: Technical Glossary
Technical Glossary USB Connectors USB cables have two classes of connectors. The Type A connectors are used to connect the cable from a USB device to a Type A port on a computer or hub. The Type B connectors are used to attach the USB cable from a USB host to a USB device or hub. -
Page 18: Specifications
Specifications Range Up to 100m (330 ft) USB Device Support & Throughputs USB 3.0 up to 5Gbps (Note: not backward compatible with USB 2.0/1.1) USB Host Support xHCI controllers (Intel, AMD, Renesas (NEC), Fresco, AsMedia) AC Adapters 100-240V AC Input, 5V DC Output, Locking Power Available to USB Device at REX 900mA for each USB Port Enclosure Material...
