SolarMax MaxWeb XPN Installation Instructions Manual page 26

Wifi settings

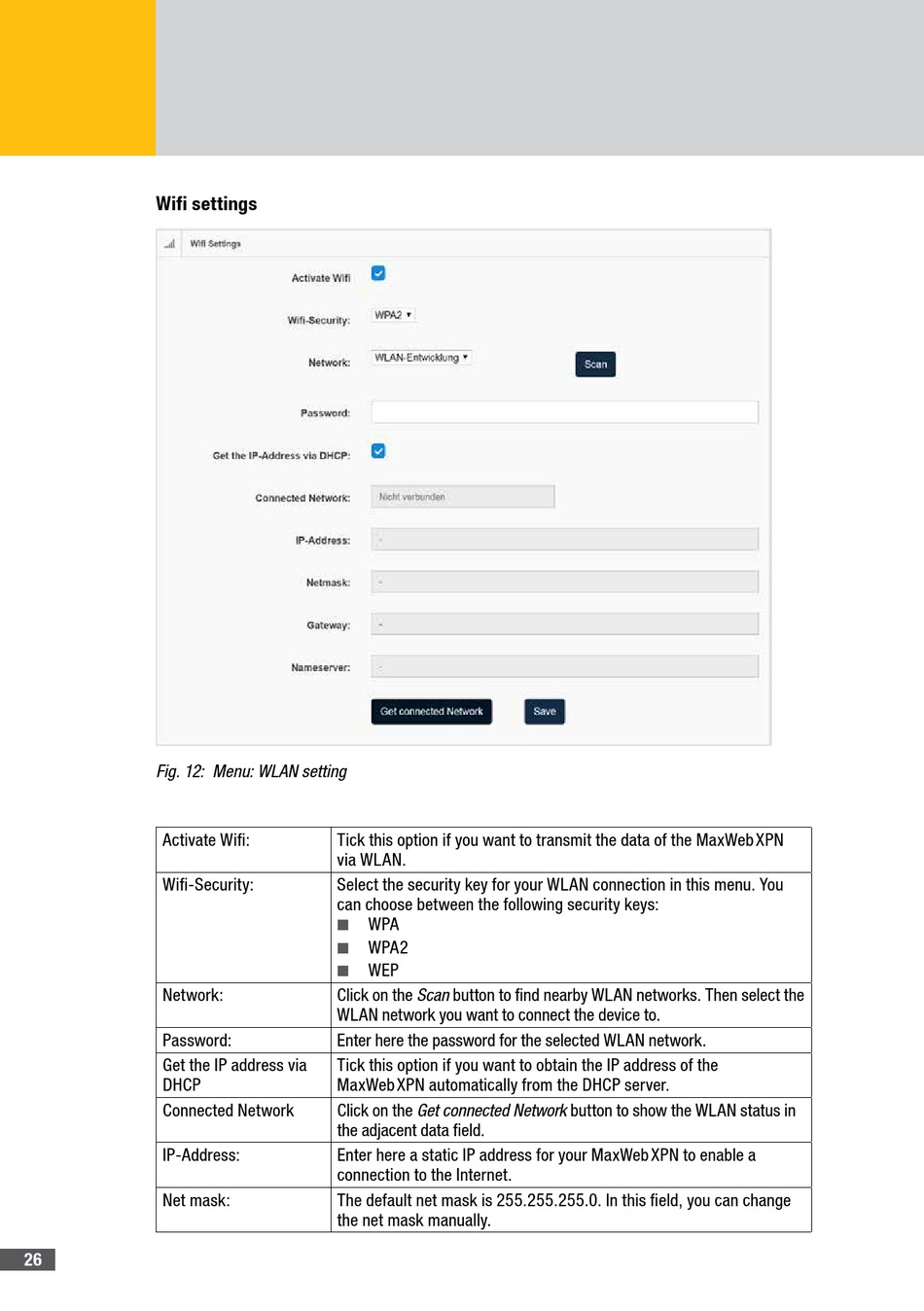

Fig. 12: Menu: WLAN setting
Activate Wifi:
Wifi-Security:
Network:
Password:
Get the IP address via
DHCP
Connected Network
IP-Address:
Net mask:
26
Tick this option if you want to transmit the data of the MaxWeb XPN
via WLAN.
Select the security key for your WLAN connection in this menu. You
can choose between the following security keys:
WPA
■ ■
WPA2
■ ■
WEP
■ ■
Click on the Scan button to find nearby WLAN networks. Then select the
WLAN network you want to connect the device to.
Enter here the password for the selected WLAN network.
Tick this option if you want to obtain the IP address of the
MaxWeb XPN automatically from the DHCP server.
Click on the Get connected Network button to show the WLAN status in
the adjacent data field.
Enter here a static IP address for your MaxWeb XPN to enable a
connection to the Internet.
The default net mask is 255.255.255.0. In this field, you can change
the net mask manually.
