3�2
Front

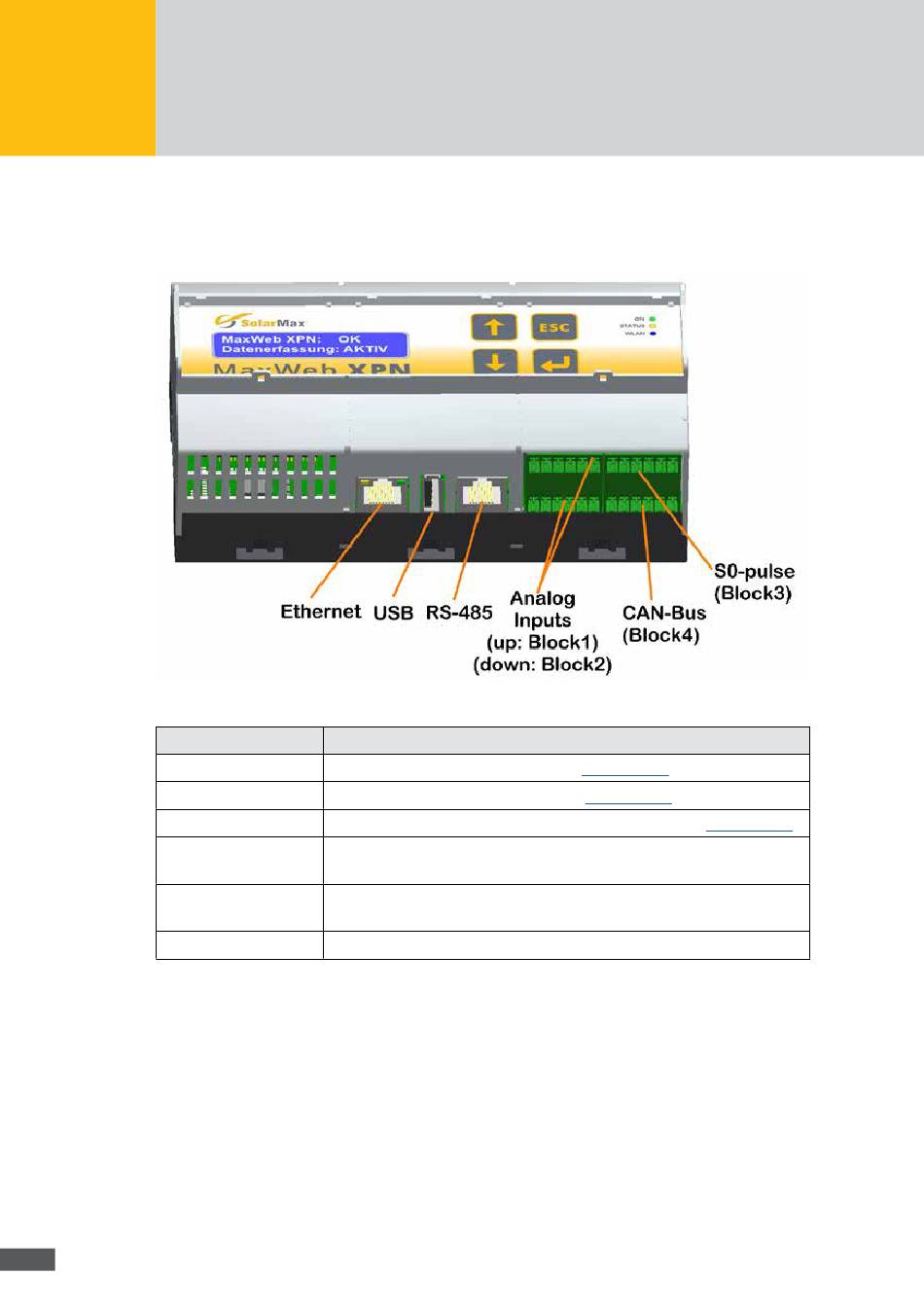

Fig. 2: Connections on the front of the MaxWeb XPN
Port
S0 pulse
CAN bus
8 analogue inputs
RS485
USB
Ethernet
10
Connections
Purpose
Pulse inputs for counting energy (see
Connection for CAN bus systems (see
Connection for irradiance and temperature sensors (see
RJ45 sockets for connecting the MaxComm network cable, galvani-
cally isolated
Type-A USB socket for connecting USB flash drives, hard disc drives,
notebook, etc.
RJ45 socket for the Ethernet connection cable 10 / 100 Mbit/s
Section
8.5.1)
Section
8.5.1)
Section
8.5.1)
