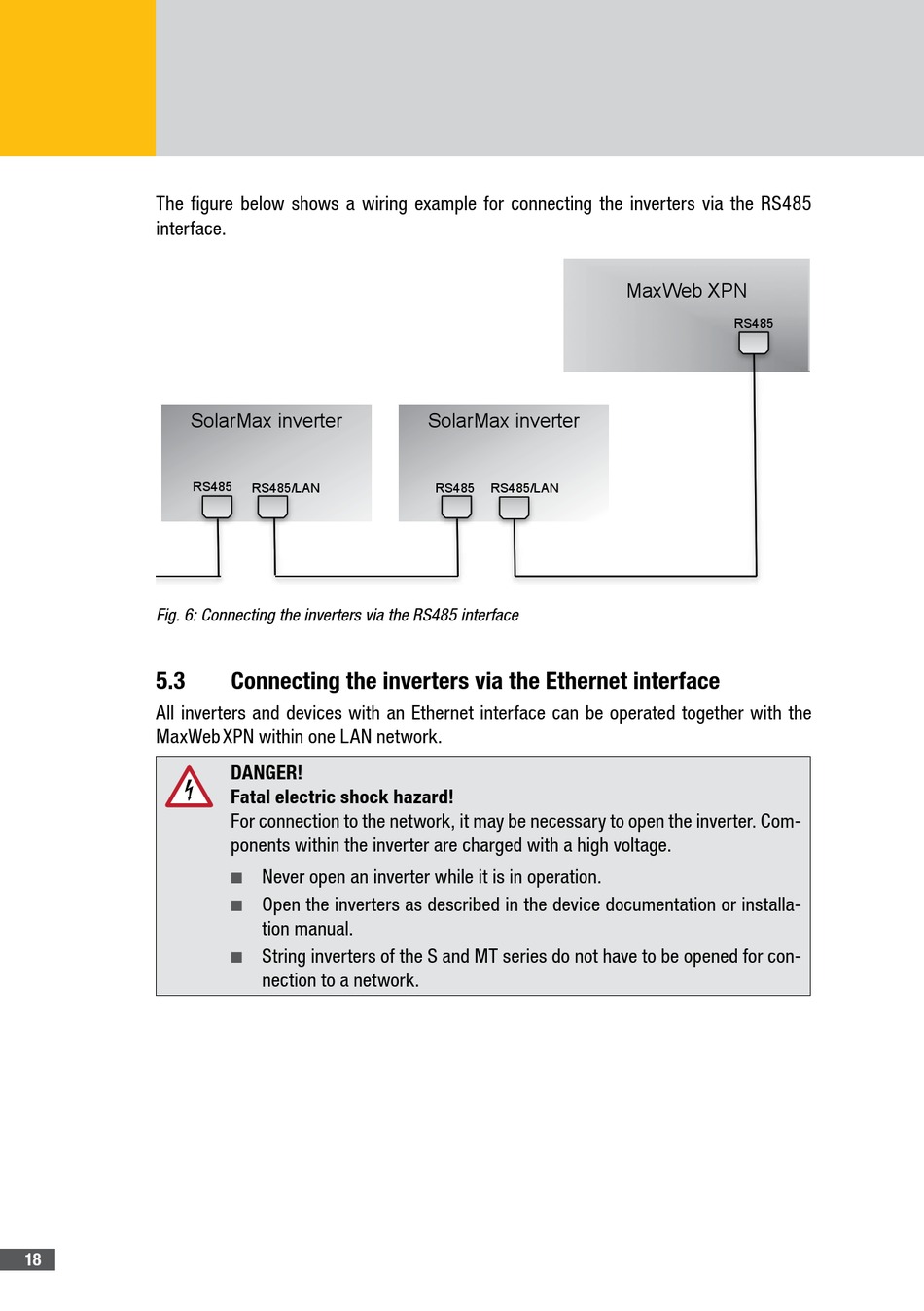

The figure below shows a wiring example for connecting the inverters via the RS485
interface.
SolarMax inverter
RS485
Fig. 6: Connecting the inverters via the RS485 interface
5�3
All inverters and devices with an Ethernet interface can be operated together with the
MaxWeb XPN within one LAN network.
18
RS485/LAN
Connecting the inverters via the Ethernet interface
DANGER!
Fatal electric shock hazard!
For connection to the network, it may be necessary to open the inverter. Com-
ponents within the inverter are charged with a high voltage.
Never open an inverter while it is in operation.
■ ■
Open the inverters as described in the device documentation or installa-
■ ■
tion manual.
String inverters of the S and MT series do not have to be opened for con-
■ ■
nection to a network.
SolarMax inverter
RS485
RS485/LAN
MaxWeb XPN
RS485
