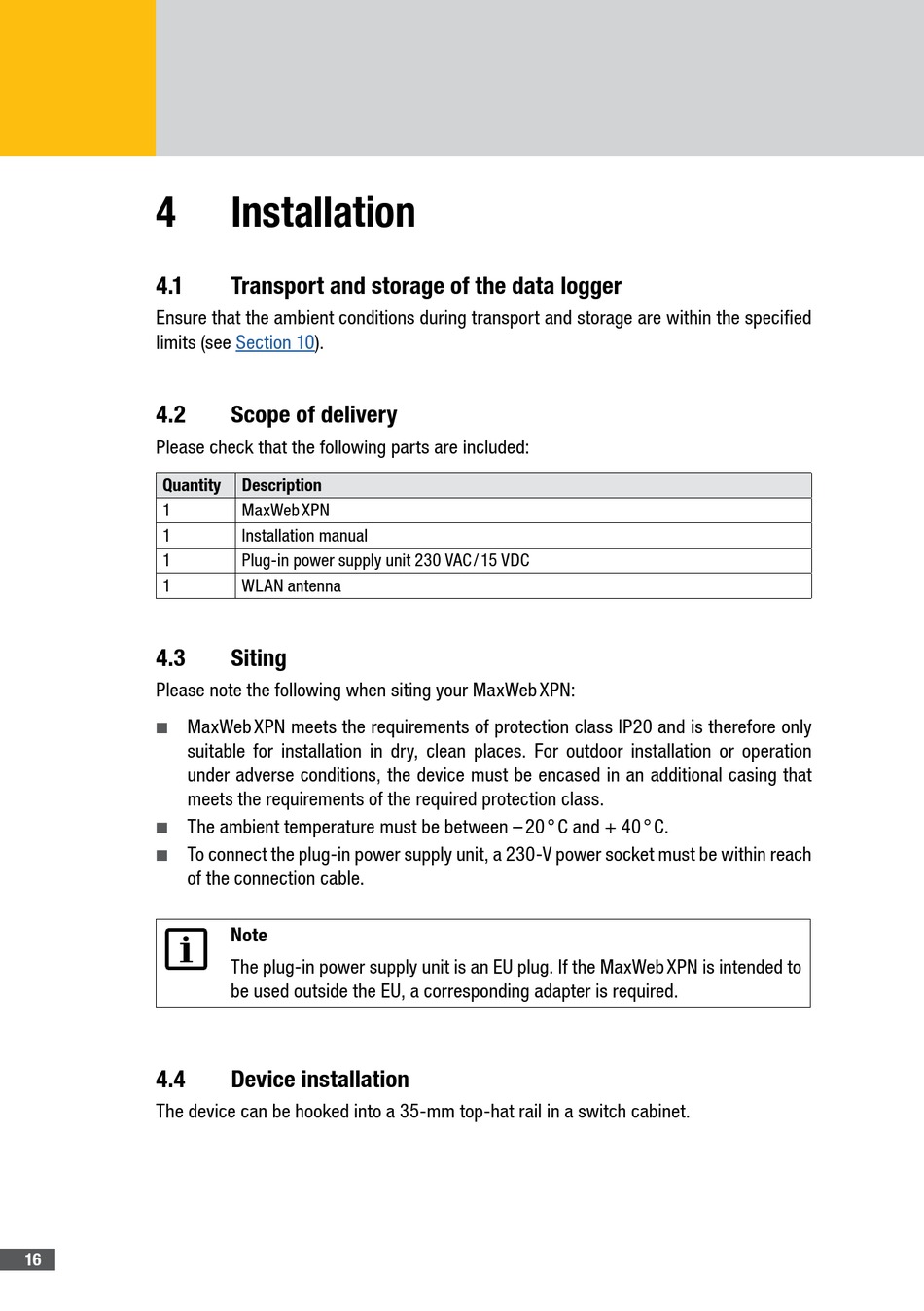

Installation; Transport And Storage Of The Data Logger; Scope Of Delivery; Siting - SolarMax MaxWeb XPN Installation Instructions Manual

4
4�1
Ensure that the ambient conditions during transport and storage are within the specified
limits (see
4�2
Please check that the following parts are included:
Quantity
1
1
1
1
4�3
Please note the following when siting your MaxWeb XPN:
MaxWeb XPN meets the requirements of protection class IP20 and is therefore only
■ ■
suitable for installation in dry, clean places. For outdoor installation or operation
under adverse conditions, the device must be encased in an additional casing that
meets the requirements of the required protection class.
The ambient temperature must be between – 20 ° C and + 40 ° C.
■ ■
To connect the plug-in power supply unit, a 230-V power socket must be within reach
■ ■
of the connection cable.
4�4
The device can be hooked into a 35-mm top-hat rail in a switch cabinet.
16

Installation

Transport and storage of the data logger

Section 10).

Scope of delivery

Description
MaxWeb XPN
Installation manual
Plug-in power supply unit 230 VAC / 15 VDC
WLAN antenna

Siting

Note
The plug-in power supply unit is an EU plug. If the MaxWeb XPN is intended to
be used outside the EU, a corresponding adapter is required.

Device installation
