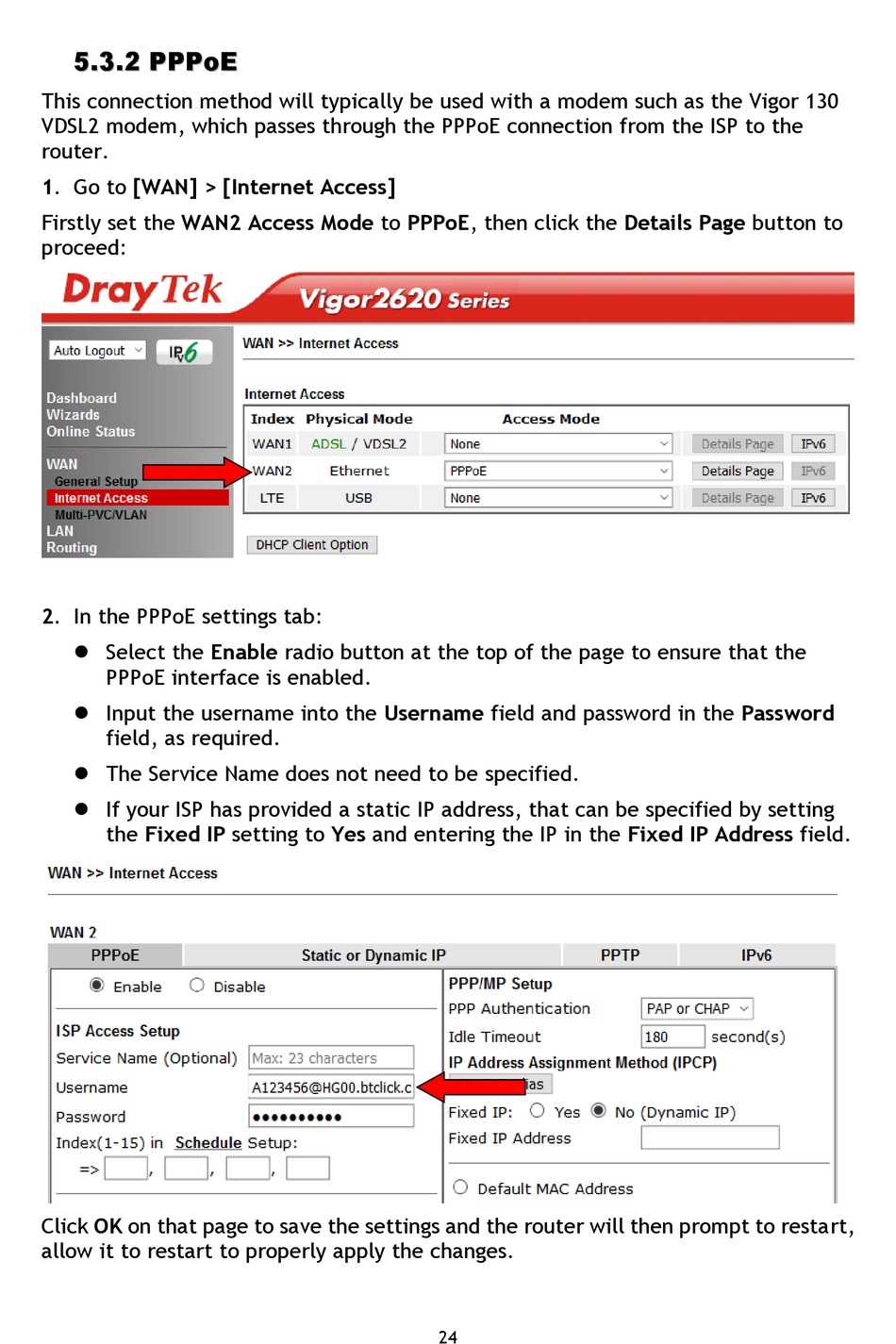

5 . 3 . 2 P P P o
5 . 3 . 2 P P P o
This connection method will typically be used with a modem such as the Vigor 130
VDSL2 modem, which passes through the PPPoE connection from the ISP to the
router.
1. Go to [WAN] > [Internet Access]
Firstly set the WAN2 Access Mode to PPPoE, then click the Details Page button to
proceed:
2. In the PPPoE settings tab:
 Select the Enable radio button at the top of the page to ensure that the
PPPoE interface is enabled.
 Input the username into the Username field and password in the Password
field, as required.
 The Service Name does not need to be specified.
 If your ISP has provided a static IP address, that can be specified by setting
the Fixed IP setting to Yes and entering the IP in the Fixed IP Address field.
Click OK on that page to save the settings and the router will then prompt to restart,
allow it to restart to properly apply the changes.
