5. Ethernet-based Internet Connections: The LAN port P2 can be switched to
operate as the Ethernet WAN port. This must be configured in the router's
web interface before it can operate in this mode – Section 5.3.1 of this
Quick Start Guide details how to do that.
With the P2 port configured for Ethernet WAN mode, connect the cable
Modem/DSL Modem/Media Converter to the WAN port of the router with
Ethernet cable (RJ-45).
4 . 3 W a l l - M o u
4 . 3 W a l l - M o u

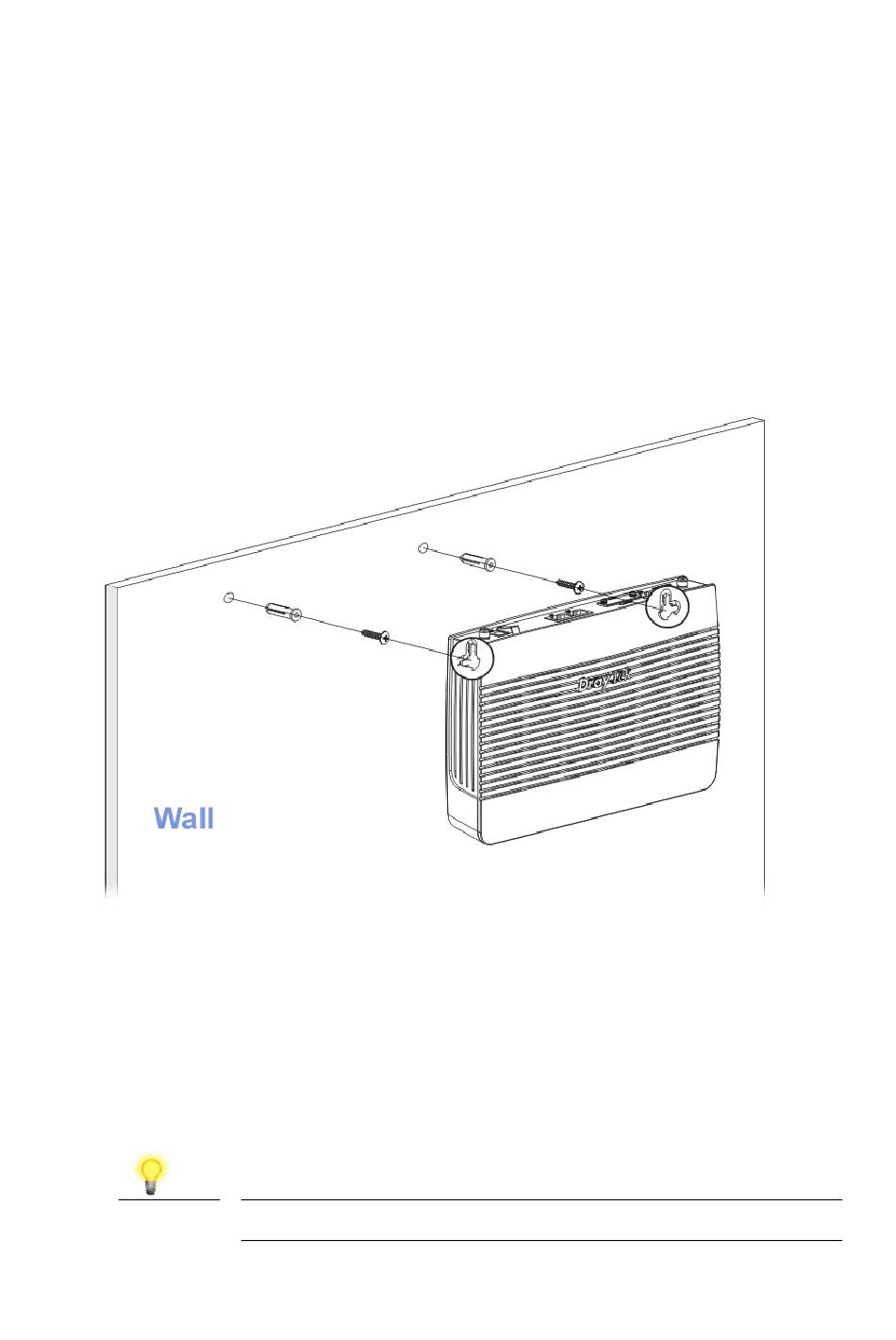

DrayTek Vigor 2620 series routers have keyhole type mounting slots on the
underside to hang the router on, using screws attached to a wall or other
surface.
1. A template is provided in the Vigor router packaging box to enable you to
space the screws correctly on the wall
2. Place the template on the wall in the desired position and drill holes
through the cardboard template at the marked points
3. Fit screws into the wall using the appropriate type of wall plug
4. With the screws installed, the router can be slotted into place
Note
n t e d I n s t a l l a
n t e d I n s t a l l a
The recommended drill diameter shall be 6.5mm (1/4").
t i o n
t i o n
9
