Draytek Vigor2620 Series Quick Start Manual page 25

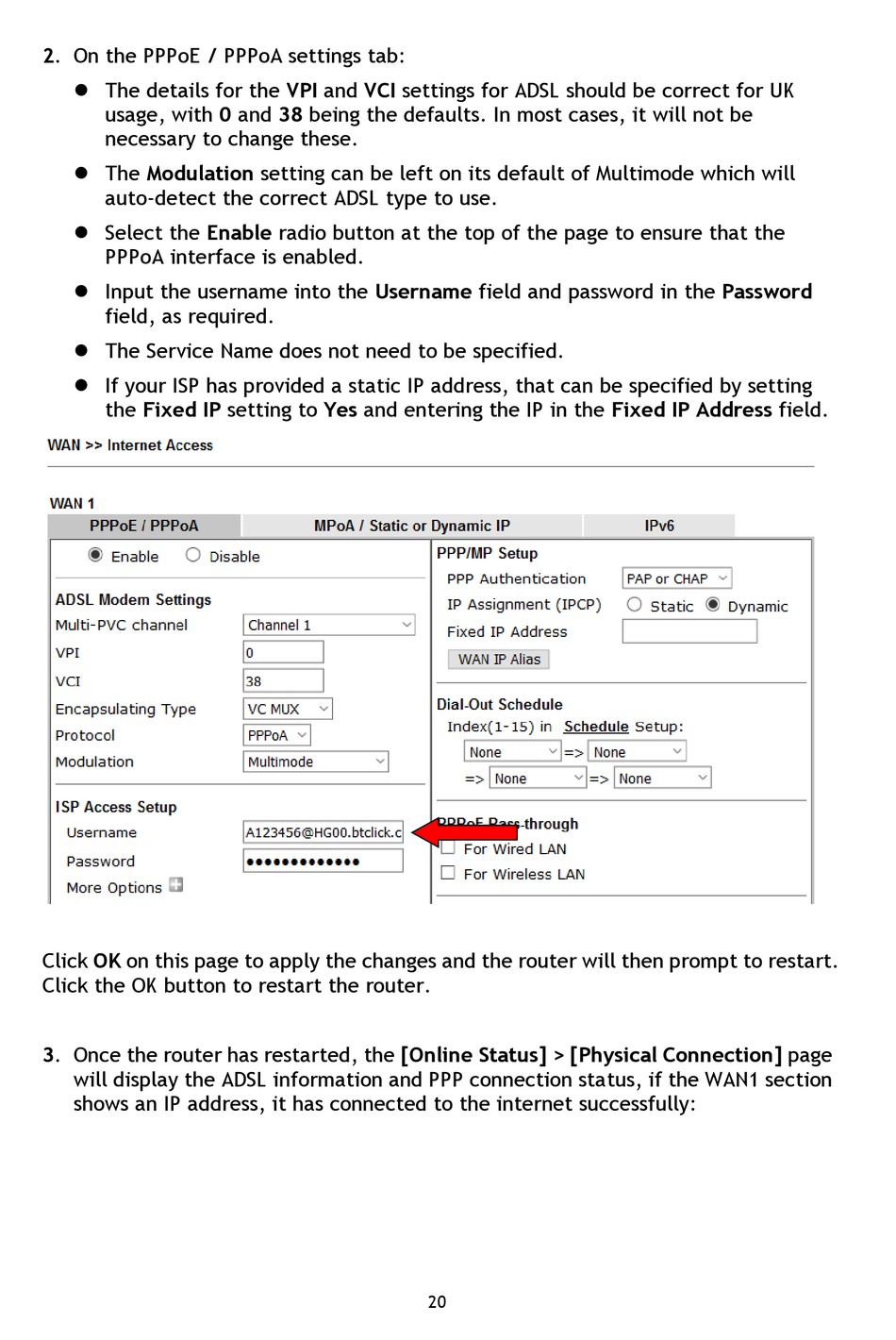

2. On the PPPoE / PPPoA settings tab:
 The details for the VPI and VCI settings for ADSL should be correct for UK
usage, with 0 and 38 being the defaults. In most cases, it will not be
necessary to change these.
 The Modulation setting can be left on its default of Multimode which will
auto-detect the correct ADSL type to use.
 Select the Enable radio button at the top of the page to ensure that the
PPPoA interface is enabled.
 Input the username into the Username field and password in the Password
field, as required.
 The Service Name does not need to be specified.
 If your ISP has provided a static IP address, that can be specified by setting
the Fixed IP setting to Yes and entering the IP in the Fixed IP Address field.
Click OK on this page to apply the changes and the router will then prompt to restart.
Click the OK button to restart the router.
3. Once the router has restarted, the [Online Status] > [Physical Connection] page
will display the ADSL information and PPP connection status, if the WAN1 section
shows an IP address, it has connected to the internet successfully:
