①
Proceed carefully, as incorrect wiring can cause damage.
②
Use a DC power supply with sufficient capacity and a low ripple.
③
Turn off the power supply to remove and insert the connector.
④
Never rotate the right angled type connector as it is not designed to rotate.

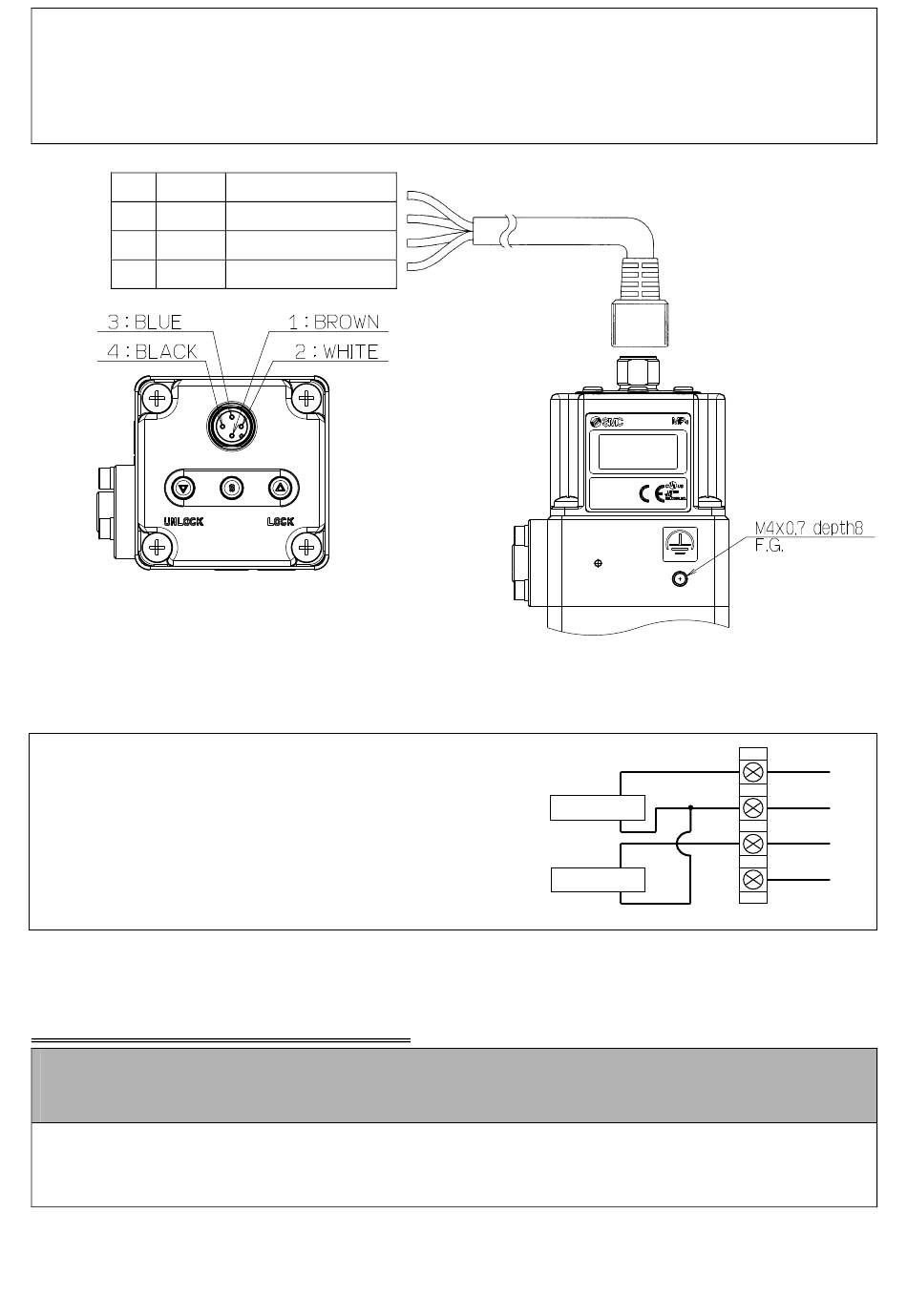

Brown
1
2 White
Blue
3
Black
4
(Note) The wire colour is shown
for when an alternative cable is used.
Current / Voltage type（ITVX2030-0, ITVX2030-1, ITVX2030-2, ITVX2030-3）
Power supply 24 VDC
Input signal 4～20mADC
0～20mADC
0～ 5VDC
0～10VDC
Wiring diagram（ （ （ （ Monitor output） ） ） ）
When the monitor output is not being used, prevent the unused wires from touching the other
wires, as this can cause a malfunction.
Power supply
Input signal
GND (Common)
Monitor output
（ITVX2030-0）
（ITVX2030-1）
（ITVX2030-2）
（ITVX2030-3）
△ △ △ △
, ！ ！ ！ ！
+
○
P o w e r s u p p l y
-
○
+
○
I n p u t
s i g n a l
-
○
Caution
- 7 -
B r o w n
１ ：
B l u e
３ ：
W h i t e
２ ：
B l a c k
４ ：
