5-Line Scans and Grid Scans
Conquest

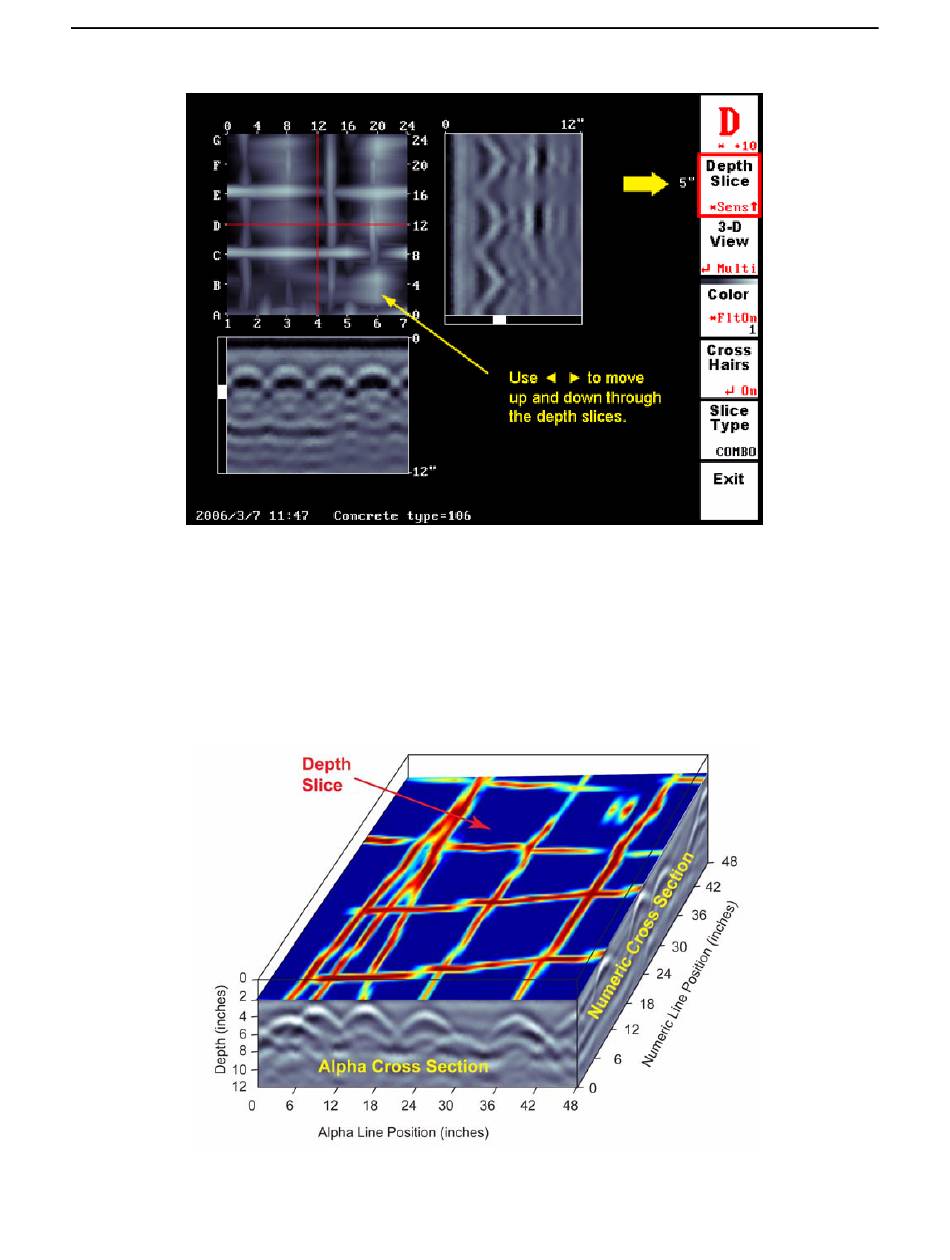

Figure 5-3:3D image of concrete as displayed by Conquest. The depth slice image is displayed in the
upper left corner and represents the plan map view looking down on the grid scan area (see Figure 5-4).
The images to the right and below the depth slice image are the Numeric and Alpha cross sectional views
through the concrete defined by the cross-hairs on the depth slice. Conceptually, the cross-section views
are like looking at the sides of the cube (see Figure 5-4).
The best way to think of the depth slice images are as photograph-like views from above. The
rectangular regions to the bottom and the right should be thought of as cross sections through
the concrete in each direction at the positions of the cross-hairs (Figure 5-4).
Figure 5-4:A conceptual Conquest Grid Scan image to understand the relationship between depth slice
images, Alpha cross section images and Numeric cross section images.
