6. Turn on the system by pressing any button on the Monitor Keypad. Note that this
MUST be done on the Monitor Keypad and not the Sensor Keypad or the Remote
Keypad. After the system is powered on, the red LED on the Monitor Keypad will be
illuminated.
7. Once the main menu is displayed on the LCD monitor screen, you are ready to begin
scanning with Conquest!
8. Use the Help option (Section 6: P31) from the main menu to learn how to scan and
generate depth slice images.
9. In high dust environments, keep the carry case lid tilted down over the back of the
monitor to minimize the amount of dust settling in ventilation slots.
2.2

Attaching the Handle

Conquest Enhanced comes with a handle to allow the operator to stand up during data collection
on floors.
Retract the spring-loaded knobs on the end of the handle, align with the two holes at the back of
the Sensor Head and release them to lock into position.

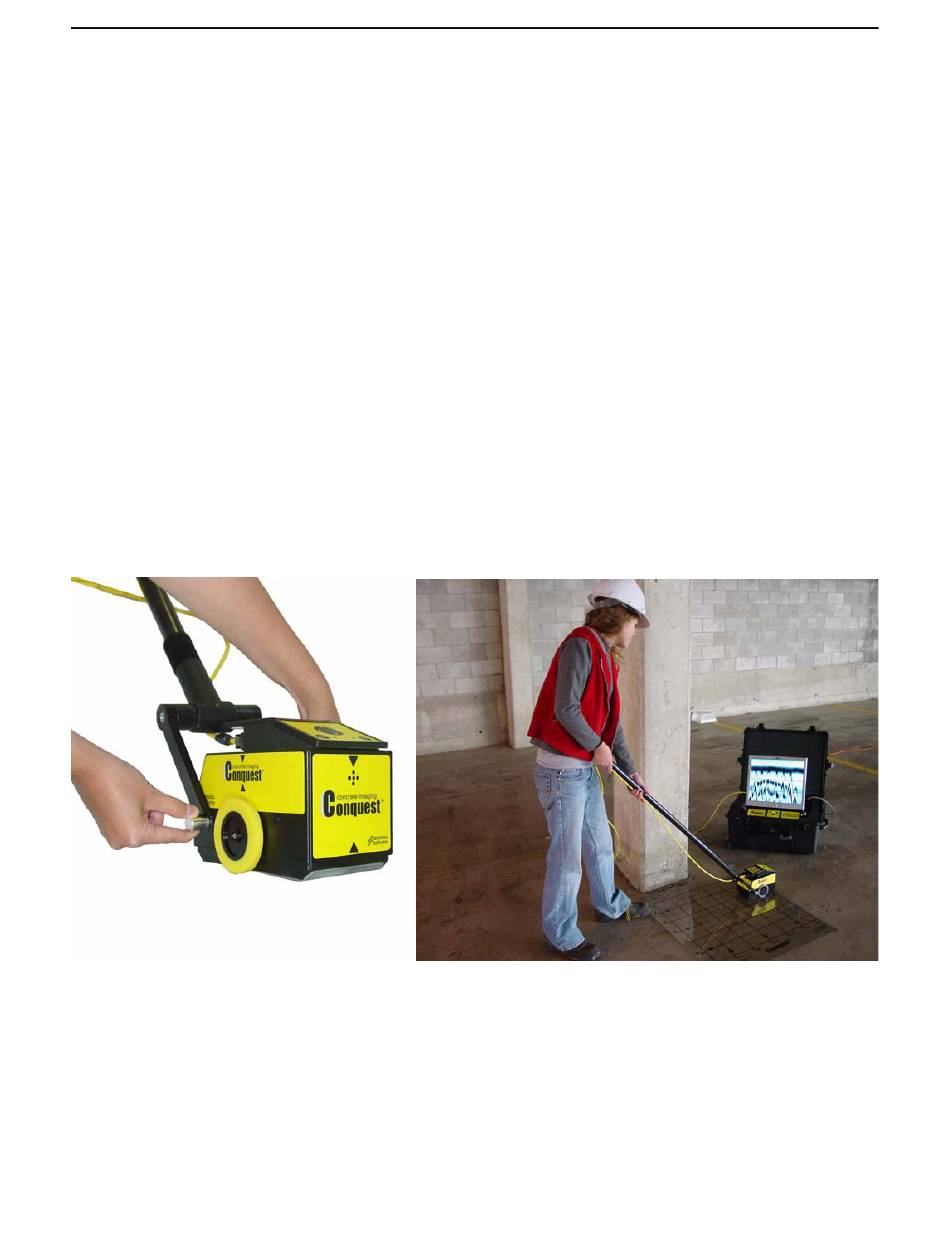

Figure 2-4:Connecting the optional handle to the Sensor Head allows data collection to be performed from
There is an additional set of handle mounting holes which can be used under unique
circumstances like scanning a vertical surface or in confined spaces when pulling the sensor
head towards the user may be preferable to pushing it.
a standing position.
5
2-Assembling Conquest
