2-Assembling Conquest
Conquest

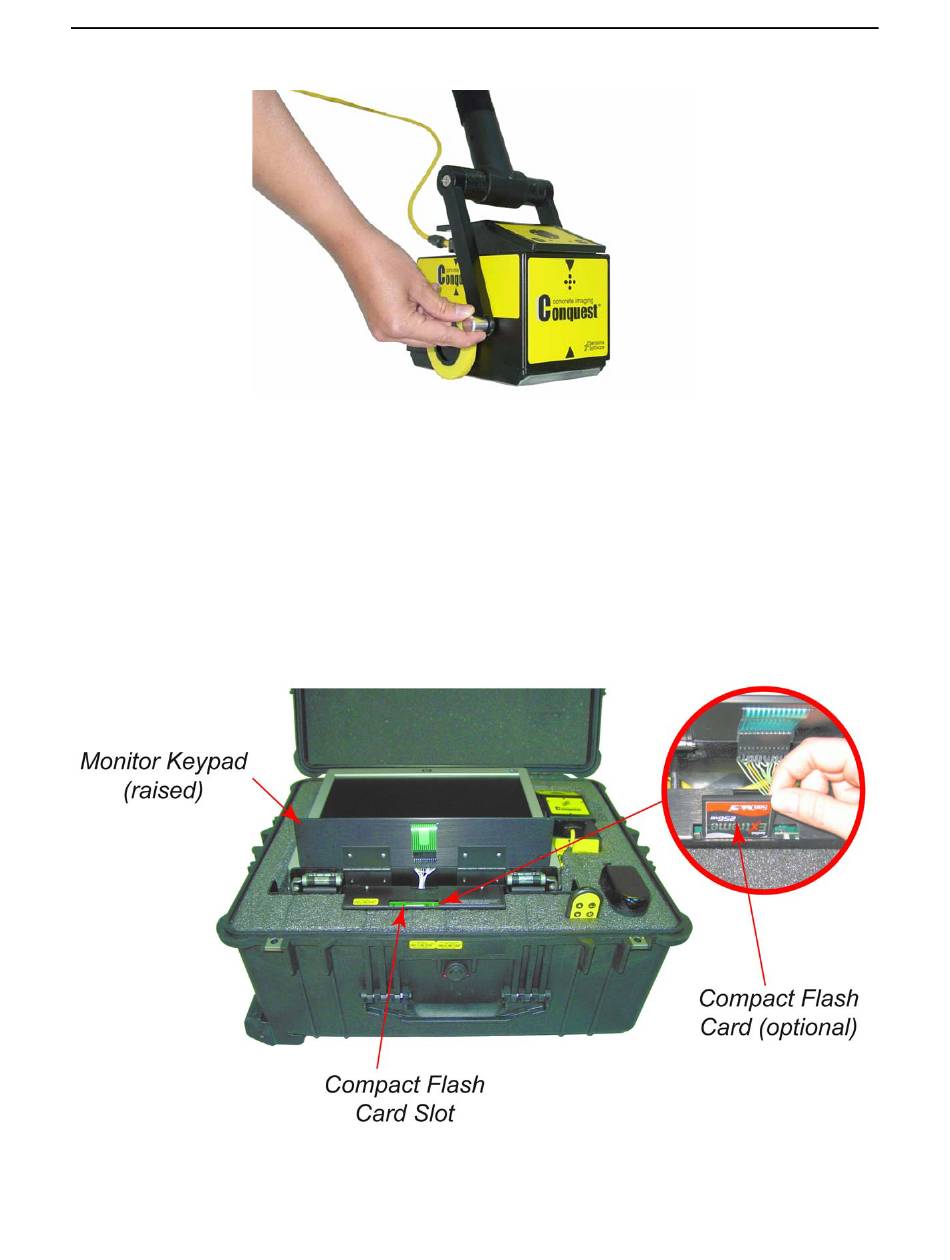

Figure 2-5:The optional handle can also be attached to the Sensor Head using the holes in the front. This
mounting position can make it easier to scan walls or complete surveys in situations where pulling the Sen-
sor Head is preferable to pushing it.
2.3
Using the Compact Flash
To save data to the optional Compact Flash card, make sure the system is powered down, tilt the
monitor down into its storage position, tilt up the Monitor Keypad and insert the card into the card
slot. Data are always saved to the internal memory but, when a removable card is present, the
data can be copied to the removable card using the Export function accessible from the Tools
menu.
Figure 2-6:The Compact Flash card slot is located under the Monitor Keypad. Conquest data can be
saved to a Compact Flash card and transferred to a PC for plotting and processing.
6
