The PCD

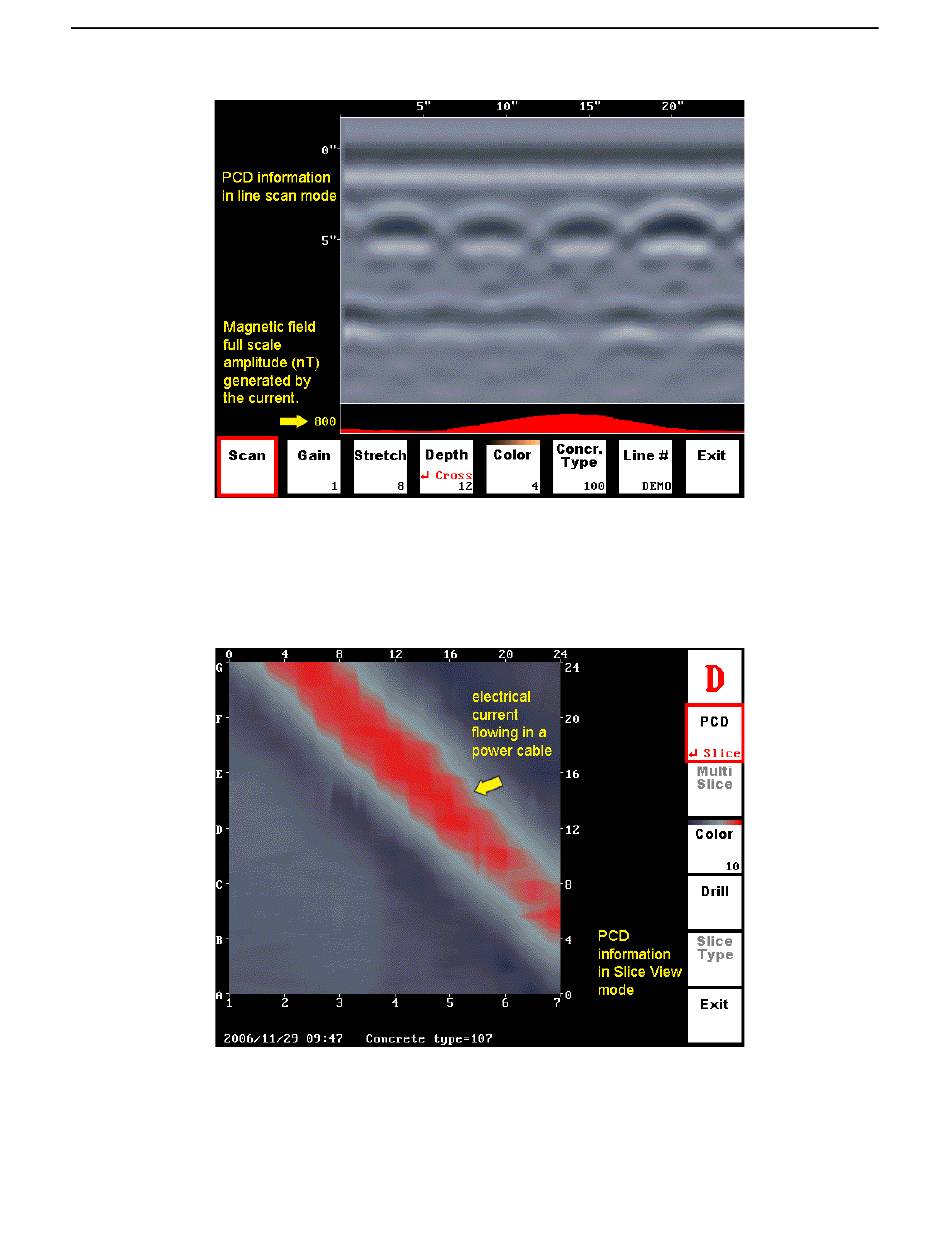

Figure 4-16:In Line Scan mode, the PCD profile appears under the GPR cross-section image.
profile also appears after collecting each line in a Grid Scan.
Figure 4-17:After Grid Scan data have been processed into depth slice images, the PCD image can also
be displayed.
The magnetic field generated by current flowing in wires can be simple or highly contorted
depending on how the wires are oriented. Examples of simple and twisted wires are shown in
Figure 4-18.
