Conquest 4-Principles of Operation
4.4

Grid Scan Collection

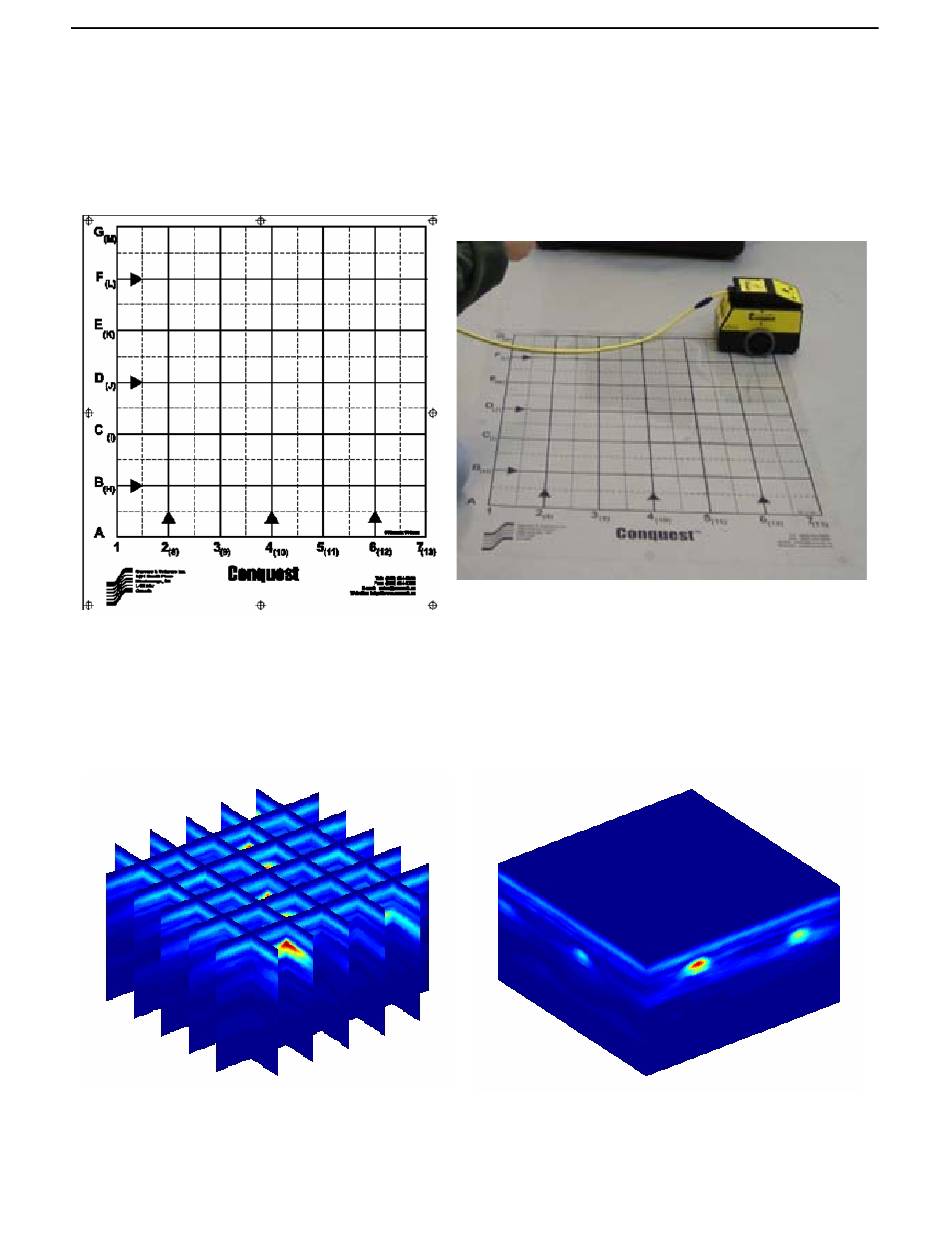

A Conquest grid scan consists of collecting a series of parallel line scans in two directions
perpendicular to one another (Figure 4-10).
Figure 4-10:Grid Scans are based on collecting multiple line scans in two directions on a grid.
Together, these line scans sample a 3D volume or cube of concrete. This is shown conceptually
in Figure 4-11a. Processing the data results in a solid data volume, again, conceptually shown in
Figure 4-11b.
b
a
Figure 4-11:(a) A series of lines scans on a grid cover a volume. (b) Processing interpolates data into the
gaps between lines to produce a solid volume.
13
