Assembling Conquest; Basic Assembly - Sensors & Software Conquest Series Manual

Conquest
2

Assembling Conquest

2.1

Basic Assembly

Use the following steps to assemble the Conquest unit:
1. Undo the 4 plastic latches that secure the lid of the Conquest carry case and open the
lid.
2.The LCD monitor is held on a piston-hinged frame that can be raised and lowered to
hold the monitor at any angle for viewing. Gently pull up the edge of the monitor to the
desired angle.
3. The Conquest system will have 3 or 4 cables, depending on options. These cables
are stored in the deeper storage area under the monitor. Identify the following cables:

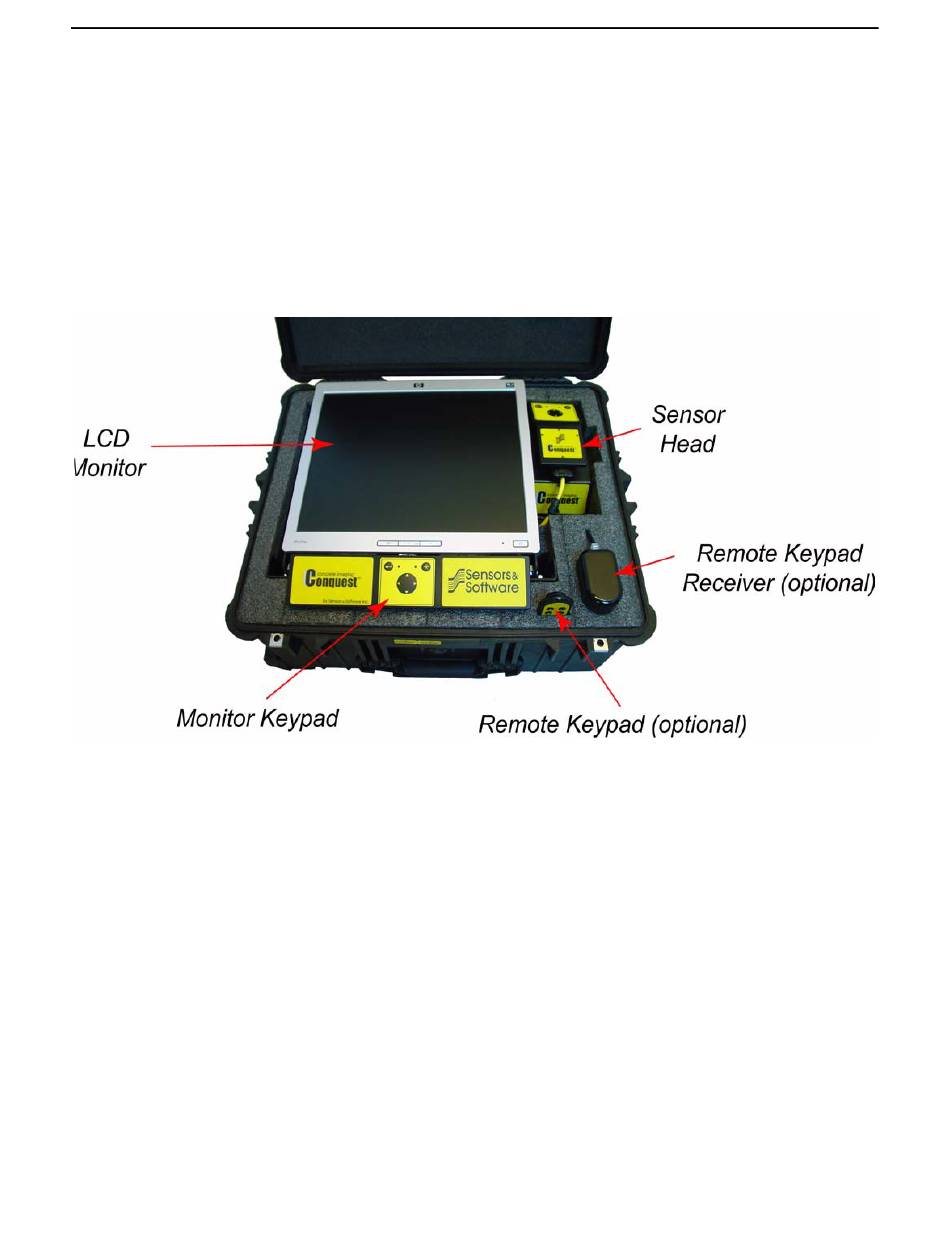

Figure 2-1:The main components of a Conquest system.
a) System power cable with AC plug
b) LCD power cable with AC plug
c) Yellow cable attached to the Sensor Head
d) Cable to the Remote Receiver (optional)
