AN12020

MPC574xR Clock Calculator Guide

How to use MPC574xR tool to easily calculate device frequency domains

Rev. 5 — October 2018

by:

NXP Semiconductors

1 Introduction

NXP's MPC574xR is a dual-core 32-bit microcontroller intended for scalable

engine control and powertrain applications. This application note will refer to

any device in the MPC574xR family, MPC5743R, MPC5745R, and MPC5746R,

as simply "MPC5746R."

The MPC5746R supports an 8-40 MHz external oscillator (XOSC), a 16 MHz

internal RC oscillator (IRCOSC), and two phase locked loops (PLL) for a

maximum operating frequency of 200 MHz. The IRCOSC is selected out of

reset so increasing the operating frequency from 16 MHz requires additional

configuration. The MPC574xR Clock Calculator is meant to complement the

reference manual. It seeks to simplify the clock configuration process by providing a graphical, interactive tool to help the user

find the correct register settings in order to achieve the desired clock frequencies.

Accompanying this application note is the clock calculator. You can download it from MPC574xR_Clock_Calculator.

The clock calculator makes use of macros to perform functions like resetting the spreadsheet to initial values, configuring all clock

frequencies to the maximum allowable settings, and copying generated code. Macros must be enabled in the user's MS Excel to

access these features. If macros are turned off, however, the tool will still be able to calculate clock frequencies, but the

aforementioned features will be disabled. To turn on macros in MS Excel 2016, go to the Developer tab on the top toolbar and

click on Macro Security. A popup window will appear, select Enable all macros.

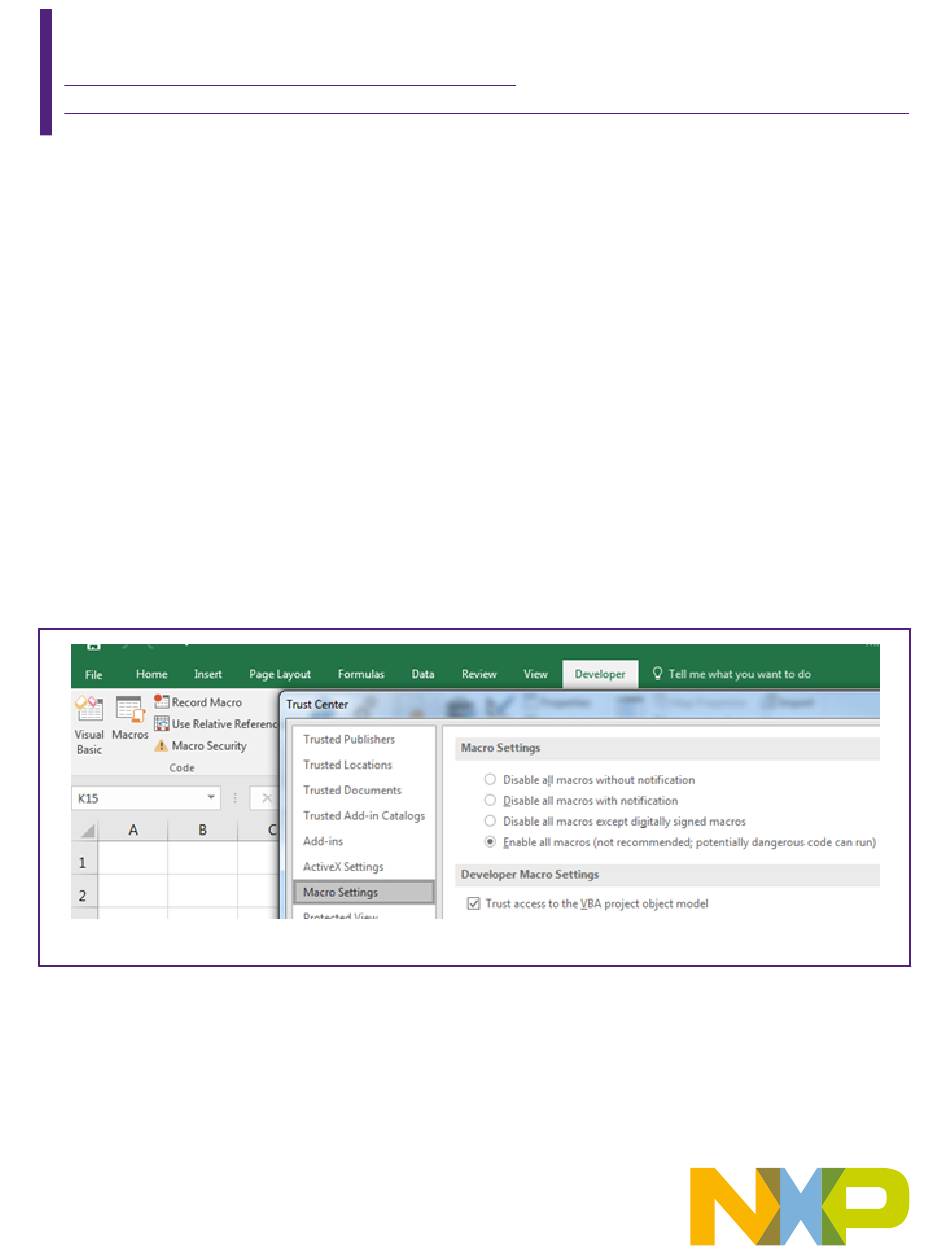

Figure 1. Enable macros

2 Clock calculator design

The MPC574xR clock calculator takes the form of an interactive Microsoft Excel spreadsheet organized into multiple tabs as shown

in the following figure.
