Summary of Contents for NXP Semiconductors MPC-LS-VNP-RDB

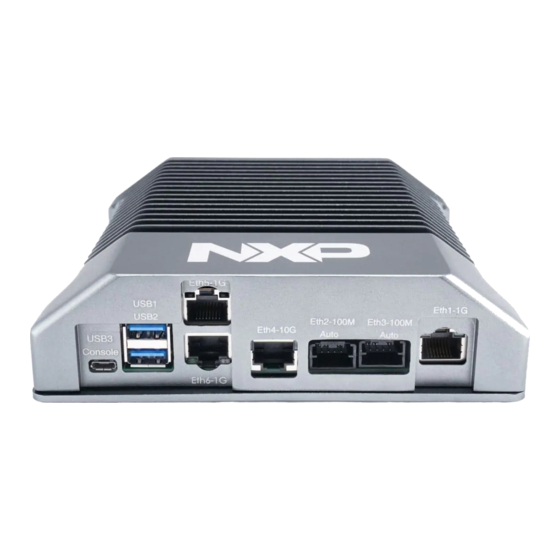

- Page 1 Quick Start Guide MPC-LS Vehicle Network Processing Reference Design Board An advanced automotive gateway solution using NXP’s MPC5748G gateway microcontroller and LS1043A communications processor MPC-LS-VNP-RDB...
- Page 2 DIP switch (SW3) LS1043A JTAG MPC5748G header (J9) JTAG header (J8) RJ45 connector (J37) LS1043A console port (J39) USB 3.0 RJ45 RJ45 TJA1102 Type A connector connector Ethernet ports connector (P4) (J2) (J27, J28) (J15) Figure 1: Front side of MPC-LS-VNP-RDB...
- Page 3 MPC-LS-VNP-RDB The NXP MPC-LS VNP RDB brings an advanced automotive gateway solution using NXP’s MPC5748G gateway microcontroller and LS1043A communications processor. The combination of a real-time microcontroller with microprocessor application processing enables new gateway use cases and service- oriented gateways.
- Page 4 Quick Start Guide MPC-LS-VNP-RDB FEATURES Hardware MPC5748G Automotive Microcontroller SJA1105S Automotive Ethernet Switches • AEC-Q100, Grade 2 • AEC-Q100, Grade 2 • ISO 26262 ASIL B Functional Safety • 1024-entry MAC address learning table • Processors • Hardware support for IEEE 802.1AS and IEEE 802.1Qav for AVB networks...
- Page 5 MPC-LS-VNP-RDB FEATURES CONT. Software • MPC5748G: MCAL, Bare-metal • LS1043A: Linux, fast path packet forwarding • Inter-Platform Communications Framework (IPCF)
- Page 6 1. Download and Install the Tera Term terminal emulator, if not installed Connect power supply to the power already jack of the MPC-LS-VNP-RDB board and micro-B USB cable to the LS1043A Go to http://download.cnet.com/Tera- USB3 console port. Make sure the Term/3001-2094_4-75766675.html...
- Page 7 1. Connect the power supply Platform Communications Framework) Connect power supply to the power application is auto executed on login. jack of the MPC-LS-VNP-RDB board and micro-B USB cable to the WARNING MPC5748G USB4 Console port. Make sure the power status LED is glowing The RDB enclosure provides thermal green on the board.
- Page 8 Download installation software and documentation at WARRANTY www.nxp.com/MPC-LS-VNP-RDB. Visit www.nxp.com/warranty for complete warranty information. www.nxp.com/MPC-LS-VNP-RDB NXP and the NXP logo are trademarks of NXP B.V. All other product or service names are the property of their respective owners.
