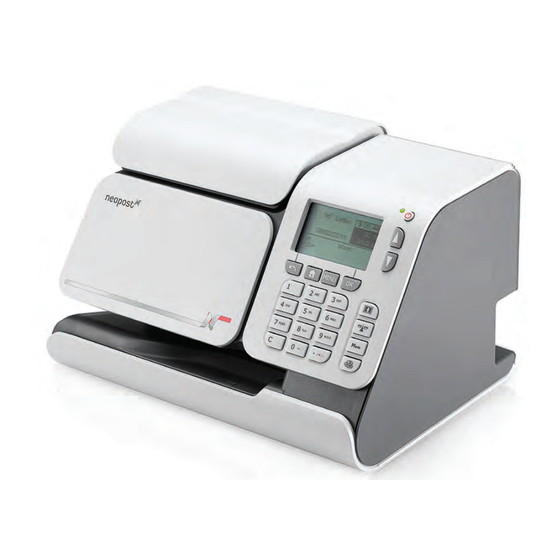

Neopost IS-280 iMeter Install Manual

Modem, postage meter
Hide thumbs Also See for IS-280 iMeter:

Advertisement

Quick Links

Download this manual See also: User Manual
modem
install guide
is-280 imeter ™
Postage meter

Advertisement

loading
Need help?

Need help?

Do you have a question about the IS-280 iMeter and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Neopost IS-280 iMeter

Summary of Contents for Neopost IS-280 iMeter

  • Page 1 ™ Postage meter...

  • Page 2: Safety Requirements

    • Do not place lighted candles, cigarettes, cigars, etc. on the IS-280 iMeter™. • When lifting covers, wait for all parts to stop moving before placing hands near the ink cartridge assembly. • When changing internal (ink, postage meter...), avoid using too much force to prevent personal injury or damaging equipment. • To prevent overheating, do not block the equipment ventilation openings. • Do not remove bolted covers as they enclose potentially hazardous parts that should only be accessed by a Service Representative. additional Safety precautionS • Power is supplied to the unit when it is connected to an electrical outlet, even if the unit is turned off or in sleep mode. • Disconnect the wall plug to remove power from the unit. • DO NOT make any changes or modifications to this equipment. • Use only the Neopost/Hasler supplied USB, Internet/LAN, or modem cables. • This equipment is NOT user-serviceable. If you have any problems with the equipment contact customer service. • If you have alarm equipment connected to the telephone line, check first with the telephone company or a qualified installer to confirm that connection of this equipment to your telephone line does not disable the alarm equipment. your iS-280 iMeter™ Should only be operated in the followinG conditionS: • Temperature range: 50°F - 104°F (10°C - 40°C). • Relative humidity: 80% maximum without condensation.
  • Page 3 Contents not needed for this connection type IS-280 iMeter™ Scale Ink Cartridge Postage Meter USB Cable Internet Cable Phone Cord and USB Modem Power Supply and AC Power Cord...
  • Page 4 steP 1 install Postage meter remove the postage meter from place the iS-280 on its back insert the postage meter into the packaging. and open the bottom postage the iS-280. meter cover. Write down the serial number and 1. Insert with the labels facing store it in a safe place. You will need to outward and with the connection reference the serial number if support on the bottom. is needed. 2. Make sure that the postage meter clicks/locks into place.
  • Page 5 steP 2 install inK Cartridge open the front panel. remove the ink cartridge from open the blue ink cartridge lever. the packaging. Remove the tape or foam and then 1. Insert the ink cartridge with the tab remove the cardboard. to the right. Remove the tape from the ink cartridge. 2. Close the blue ink cartridge lever. 3. Close the front panel.
  • Page 6 3 install tHe sCale connect the scale connector to place the scale on top of the the scale jack. iS-280 iMeter™.
  • Page 7 steP 4 ConneCt tHe usB modem connect to modem. 1. Plug the USB Modem into the bottom USB port of the machine. 2. Plug one end of the phone cable into the USB Modem. 3. Plug the other end of the phone cable into the phone wall jack.

  • Page 8: Connect The Power

    steP 5 ConneCt tHe PoWer plug the power supply into plug the ac power cord into the plug the ac power cord into the the machine. power supply. wall outlet.
  • Page 9 steP 5 ConneCt tHe PoWer Continued power-up for the next series of steps you will be performing functions The IS-280 will display a progress directly on the control panel of screen. It may take up to a minute to initialize. the iS-280.
  • Page 10 steP 6 Configuring tHe is-280 Select “oK” by pressing the Select “next” by pressing the Select “next” by pressing the “oK” button. “oK” button. “oK” button. This action was previously completed in STEP 4.
  • Page 11 2. Internet (LAN) 2. Internet (LAN) Select “continue” by pressing press the “oK” button on the Select “yes” to enter a prefix by the “oK” button on the iS-280 iMeter™. pressing the “oK” button on the mailing system. iS-280 iMeter™. Modem should be highlighted to indicate the Modem selection.
  • Page 12 steP 7 aCtiVate tHe Postage meter Select “no” by pressing the Select “next” by pressing the press the “oK” button. “bacK” button. “oK” button. Postage will be added in a later step. Several screens will display as the machine connects to the server.
  • Page 13 steP 7 aCtiVate tHe Postage meter Continued Select “ok” by pressing the “oK” button.
  • Page 14 steP 8 Print alignment Select “next” by pressing the Select “ok” by pressing the Select “next” by pressing the “oK” button. “oK” button. “oK” button. This was previously completed in STEP 2.
  • Page 15 steP 8 Print alignment Continued place an envelope into choose which line on the imprint mail path. is the straightest. A test imprint will print on Look at the test imprint and find the the envelope. letter where the top and bottom lines are most closely aligned. In this example line “C” would be the correct choice.
  • Page 16 Print alignment Continued use the up or down arrow Select “exit” by pressing the Select “ok” by pressing the buttons on the iS-280 iMeter™ “bacK” button. “oK” button. to select the letter “c” (or whichever letter was represented as the straightest line from your test imprint).
  • Page 17 steP 9 loading funds into tHe Postage meter press the “fundS” button. use the down arrow button to use the numeric keypad to enter select “add funds”. the amount of postage you want to add. press the “oK” button. 1. Postage value must be whole numbers.
  • Page 18 steP 9 loading funds into tHe Postage meter Continued the “account balance” displays the amount entered in the prior step. Select “ok” by pressing the “oK” button. Several screens will appear as the machine contacts the server.

  • Page 19: Verify Operation

    steP 10 Verify oPeration place an envelope on the scale. place the envelope into the mail path to print the postage.

  • Page 20: Web Registration

    11 WeB registration from the internet explorer of your computer, go to click the “register now” button. www.neopostinc.com On the right side of the Neopost web site, you’ll find “myNeopost”. Click the “Login” button.
  • Page 21 steP 11 WeB registration Continued enter the requested information and then click “register”. The meter serial number and the funding account number can be found on your invoice. Note: Meter serial number begins with 138...
  • Page 22 steP 11 WeB registration Continued once you receive the registration confirmation, your registration is now complete. click “oK”. check your email for your username and password. you are now logged into your “myneopost” account. for additional information or general product questions, visit www.neopostinc.com/280helpdesk...
  • Page 23 Neopost and the Neopost logo are registered trademarks of Neopost S.A. All other company and product ® names may be trademarks and are the property of their respective owners. All information in this document, including descriptions of features, functions, performance and A0000496/B specifications is subject to change without written notice at any time. ©2011 Neopost USA Inc. All Rights Reserved. 12/11...
