Page 1: User Guide

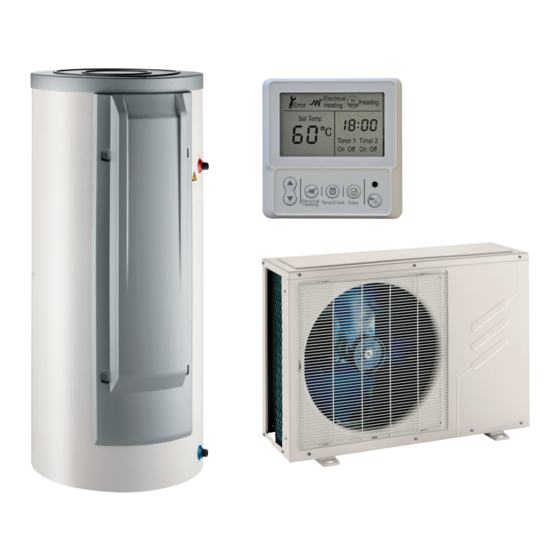

User Guide Thermodynamic water heater KALIKO SPLIT TWH Split FS 200 E TWH Split FS 270 E... - Page 2 Dear Customer, Thank you very much for buying this Appliance. Please read this manual carefully before using your appliance. Keep this document in a safe place for future reference. In order to ensure continued safe and efficient operation we recommend that the product is serviced regularly. Our service and customer service organisation can assist with this.
-
Page 3: Table Of Contents
Table of Contents Table of Contents 1 Safety Instructions 1.1 General safety instructions .......................... 5 1.2 Recommendations ............................6 1.3 Specific safety instructions .......................... 8 1.4 Liability ................................ 9 1.4.1 Manufacturer's liability ............................9 1.4.2 Installer's liability..............................9 1.4.3 User's liability................................ 9 1.5 Safety data sheet: R-134a refrigerant fluid .................... - Page 4 Table of Contents 5 Using the appliance 5.1 Using the control panel ..........................21 5.1.1 First time commissioning ............................ 21 5.1.2 Setting the time ..............................22 5.1.3 Setting the operating ranges ..........................23 5.1.4 Setting domestic hot water set point ........................25 5.1.5 Electrical back-up ...............................
-
Page 5: Safety Instructions
1 Safety Instructions 1 Safety Instructions 1.1 General safety instructions Danger This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are given correct supervision or instruction on using the appliance in complete safety and understand the hazards involved. -
Page 6: Recommendations
1 Safety Instructions Warning Take precautions with the domestic hot water. Depending on the settings of the thermodynamic water heater, the domestic hot water temperature may exceed 65°C. Caution Only genuine spare parts may be used. Warning Only qualified persons are authorised to assemble, install and maintain the installation. - Page 7 1 Safety Instructions Caution If the home is unoccupied for a long period and there is a risk of frost, drain the domestic hot water tank. Note Keep the domestic hot water tank and the outdoor unit accessible at all times. Note Never remove or cover the labels and data plates affixed to appliances.
-
Page 8: Specific Safety Instructions
1 Safety Instructions 1.3 Specific safety instructions Warning Refrigerant fluid and pipes: ● Use only R-134a refrigerant fluid to fill the system. ● Use tools and pipe components especially designed for use with R-134a refrigerant fluid. ● Use copper pipes deoxidised with phosphorus to carry the refrigerant fluid. -
Page 9: Liability
1 Safety Instructions 1.4 Liability 1.4.1 Manufacturer's liability Our products are manufactured in compliance with the requirements of the various Directives applicable. They are therefore delivered with the any markings and documents necessary. In the interests of the quality of our products, we strive constantly to improve them. -
Page 10: Safety Data Sheet: R-134A Refrigerant Fluid
1 Safety Instructions 1.5 Safety data sheet: R-134a refrigerant fluid 1.5.1 Product identification ■ Name of the refrigerant fluid R-134a ■ Emergency call: - Anti-poison Centre INRS/ORFILA: +33 (0) 1 45 42 59 59. 1.5.2 Identification of hazards ■ Effects harmful to health: - The vapours are heavier than air and may lead to asphyxia owing to reduced oxygen levels. -
Page 11: Fire Prevention Measures
1 Safety Instructions 1.5.5 Fire prevention measures ■ Appropriate extinguishing agents: All extinguishing agents can be used. ■ Inappropriate extinguishing agents: None to our knowledge. In the event of fire nearby, use the appropriate extinguishing agents. ■ Specific hazards: ● Rise in pressure. In the presence of air, an inflammable mixture may form under certain temperature and pressure conditions. -
Page 12: Personal Protection
1 Safety Instructions 1.5.8 Personal protection ■ Respiratory protection: ● If insufficient ventilation: AX type cartridge mask ● In confined spaces: Full self-contained breathing apparatus. ■ Hand protection: Protective gloves in leather or nitrile rubber. ■ Eye protection: Safety glasses with side protection. ■... -
Page 13: About This Manual
2 About this manual 2 About this manual General This manual is intended for the installer of a TWH Split FS 200 E or TWH Split FS 270 E thermodynamic water heater, incorporating an SFS 200 E or SFS 270 E domestic hot water tank and an outdoor unit with SODU 2 M display. -
Page 14: Technical Specifications
3 Technical specifications Technical specifications Homologations 3.1.1 Certifications ■ NF certification Appliances concerned: KALIKO SPLIT (TWH Split FS 200 E or TWH Split FS 270 E) Specifications LCIE 103-15/B (July 2011) for NF Electricity Performance Marking This product complies with the requirements of the following NF Standards on Electricity: ●... -
Page 15: Technical Data
3 Technical specifications Technical data 3.2.1 Characteristics of the appliance Model Unit TWH Split FS 200 E TWH Split FS 270 E Daily electricity consumption (Q 3.532 5.576 elec Declared load profile Sound power level at 1 m indoors (L dB(A) <17 <17... -
Page 16: Heating Time Of The Thermodynamic Water Heater According To Air Temperature
3 Technical specifications 3.2.2 Heating time of the thermodynamic water heater according to air temperature ■ Scenario for complete heating cycles on the thermodynamic water Fig.2 Heating time TWH Split FS 200 E heater for a cold water temperature of 10°C A Heating time for a set point of 40 °C NIE-A-009 B Heating time for a set point of 55 °C... -
Page 17: Description Of The Product
4 Description of the product Description of the product General description The thermodynamic water heaters in the KALIKO SPLIT range have the following specifications: ● Floor-standing thermodynamic storage water heater ● Heat pump extracting energy from the outside air ● Display with timer program ●... -
Page 18: Main Components
4 Description of the product Main components 4.3.1 Domestic hot water tank Fig.6 Description of the components 1 Top cover 2 Top insulation 3 Sensor cable duct 4 230-V sensor cable duct 5 Condenser tube 6 Domestic hot water outlet 7 Magnesium anode 8 Sensor tube 9 Temperature sensor... -
Page 19: Outdoor Unit
4 Description of the product 4.3.2 Outdoor unit Fig.7 Description of the components 1 Evaporator 10 Filter-drier 2 Fan 11 Outside temperature sensor 3 Compressor 12 Electronic expansion valve 4 Compressor outlet temperature sensor 13 High pressure pressure switch 5 Display connection terminal block 14 4-way valve 6 Temperature sensor connector 15 Electrical connection terminal block... -
Page 20: Description Of The Display
4 Description of the product Description of the display 4.4.1 Description of the control keys Fig.8 Description of the keys 1 MODE key (choice between holiday mode and in residence) 2 Operating indicator (In Residence: green light / Holiday: light off) Electrical Heating 3 Browse keys... -
Page 21: Using The Appliance
5 Using the appliance 5 Using the appliance Using the control panel 5.1.1 First time commissioning Caution Only a qualified professional may carry out first time commissioning. 1 Connecting the system to the mains Fig.10 Start-up Starting up the thermodynamic water heater: 2 Press the MODE key (in residence). -
Page 22: Setting The Time
5 Using the appliance Fig.12 Timer/Clock 5.1.2 Setting the time Set the time: Electrical 1 Press Timer/Clock Heating Error Heating The display “hh” on the “hh : mm” display starts flashing, meaning that Set Temp the hour can be set. Timer 1 Timer 2 On Off... -
Page 23: Setting The Operating Ranges
5 Using the appliance Fig.16 Starting the heating process 5.1.3 Setting the operating ranges Electrical Two operating ranges are available: Timer 1 and Timer 2. Heating Error Heating Both operating ranges are set in a similar manner. Set Temp For each operating range, set a start time and an end time. Timer 1 Timer 2 1 Press Timer/Clock three times to select Timer 1 - On. - Page 24 5 Using the appliance Fig.20 End of the heating process 8 The display “hh” on the “hh : mm” display starts flashing, meaning that the end time for the heating process is ready to be set. Electrical Heating Error Heating Set Temp Timer 1 Timer 2...
-
Page 25: Setting Domestic Hot Water Set Point
5 Using the appliance Fig.24 Setting the set point 5.1.4 Setting domestic hot water set point The domestic hot water set point is set with the up arrow and the down arrow keys. Electrical Heating Error Error Heating 1 Press the up arrow key to increase the set point or Set Temp Set Temp press the down arrow key to reduce it. -
Page 26: Electrical Back-Up
5 Using the appliance Fig.25 E-Heat mode 5.1.5 Electrical back-up - Press the Electrical Heating key. The Electrical Heating icon flashes. - Press the Enter key to confirm. Electrical Heating Once the set point has been reached, the control system goes back to Error Heating normal mode. -
Page 27: Switching Off The Appliance
6 Switching off the appliance 6 Switching off the appliance 6.1 Switching off the installation Caution Do not switch off the appliance so as not to delete the control parameters. Instead, press the MODE button on the display and deactivate the operating ranges (see §5.1.2) to put the thermodynamic water heater in holiday mode. -
Page 28: Maintenance
7 Maintenance 7 Maintenance General Caution Installation and maintenance of the appliance must be done by a certified professional in accordance with prevailing statutory texts and codes of practice. Caution Before working on the appliance, ensure that it is switched off and safe. -
Page 29: Troubleshooting
8 Troubleshooting Troubleshooting Messages (Ex and Px type code) 8.1.1 Messages on the display Fig.26 Faults display In the event of disruption, the control panel displays a message and a corresponding code: Electrical - The "spanner" pictogram appears Heating Error Error Heating - The green warning light flashes... -
Page 30: Scrapping / Recycling
9 Scrapping Scrapping / Recycling General Caution This appliance bears the recycling symbol pursuant to European Directive 2002/96/EC on Waste from Electrical and Electronic Equipment (WEEE). In correctly disposing of this appliance, you are helping to prevent any consequences harmful to the environment or human health. -
Page 31: Appendices
10 Appendices 10 Appendices 10.1 Declaration of Conformity The appliance complies with the standard type described in the EC declaration of conformity. It has been put into circulation in accordance with the requirements of European Directives. The original of the declaration of compliance is available from the manufacturer. 7638216-02 - 19062015 KALIKO SPLIT... -
Page 32: Erp Information
10 Appendices 10.2 ErP information 10.2.1 Product data sheet: thermodynamic water heater Brand name - Product name Unit TWH Split FS 200 E TWH Split FS 270 E Declared load profile Water heating energy efficiency class under average weather conditions Water heating energy efficiency under average weather conditions Annual energy consumption... - Page 33 Notes 7638216-02 - 19062015 KALIKO SPLIT...
- Page 34 Notes KALIKO SPLIT 7638216-02 - 19062015...
- Page 35 Notes 7638216-02 - 19062015 KALIKO SPLIT...
- Page 36 DE DIETRICH THERMIQUE 57, rue de la Gare F- 67580 MERTZWILLER - BP 30 7638216 v02 - 19062015 7638216-001-02...
