INSTALLATION INSTRUCTIONS FOR PART 99-7356B
Kia Forte 2014-up

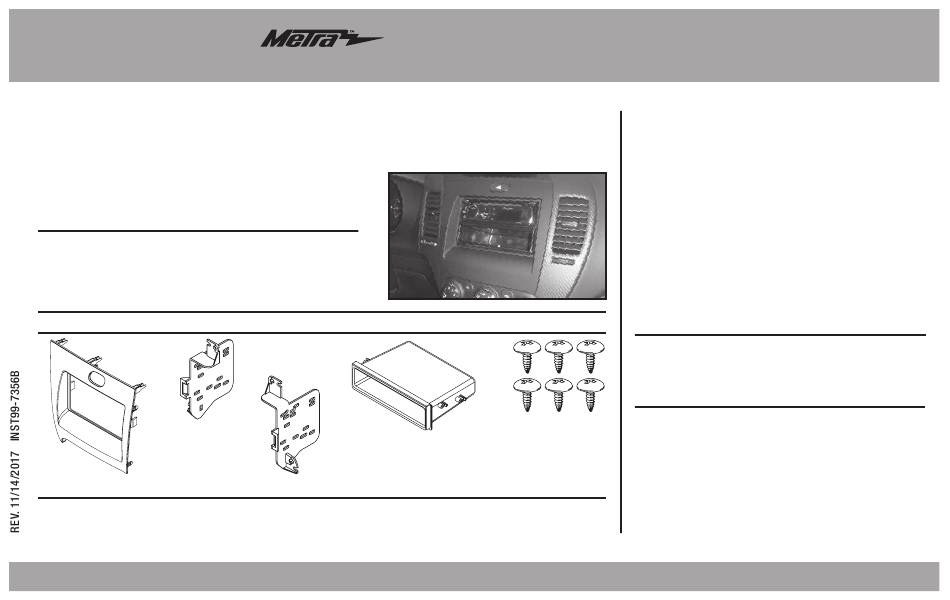

KIT FEATURES
• ISO DIN radio provision with pocket
• Painted matte black
KIT COMPONENTS
• A) Radio Trim Panel • B) Brackets • C) Pocket • D) (6) #8 x 3/8" Phillips Screws
A
B
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: • 70-7304
Antenna Adapter: • Not Required
METRA. The World's best kits.
APPLICATIONS
99-7356B
C
®
metraonline.com
– Kia Forte 2014-up ................................................ 2
– ISO DIN radio provision with pocket ...................... 3
TOOLS REQUIRED
D
• Panel removal tool • Phillips screwdriver
CAUTION: Metra recommends disconnecting the
negative battery terminal before beginning any
installation. All accessories, switches, and especially
air bag indicator lights must be plugged in before
reconnecting the battery or cycling the ignition.
NOTE: Refer to the instructions included with the
aftermarket radio.
© COPYRIGHT 2017 METRA ELECTRONICS CORPORATION
U.S. PATENT # D725,095
