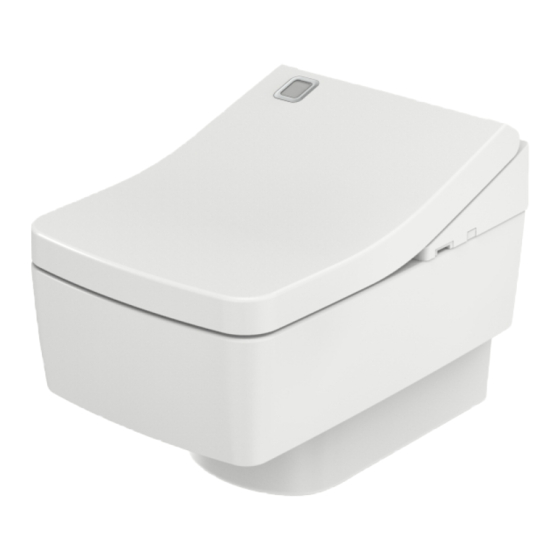

WASHLET SG
TCF403REG/RESW
TCF403REG V1
TCF403RG/RSW
■ Thank you for your recent purchase of the TOTO Washlet. Please read the enclosed
information to ensure the safe use of your product.
■ Be sure to read this Instruction Manual before using your product and keep it in a
safe place for future reference.
2017.8.10
D07204
Printed in China.
Instruction Manual
with Warranty Information
See Page 62.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Toto Washlet SG
Summary of Contents for Toto Washlet SG
- Page 1 Name of shop : Date : year month day ■ Thank you for your recent purchase of the TOTO Washlet. Please read the enclosed information to ensure the safe use of your product. ■ Be sure to read this Instruction Manual before using your product and keep it in a safe place for future reference.
-
Page 2: Table Of Contents
Part No. Parts Names ......12 Preparation ......14 Sanitary Toilet Basic Operations ..... 16 Automatic Functions (Cleaning Features) ....20 Model WASHLET SG DEODORIZER, AUTO WAND CLEANING, Ref. AUTO BOWL CLEANING, BOWL LIGHT, Functions Part No. TCF403 Page CLEAN INDICATOR... -
Page 3: Safety Precautions
Safety Precautions These precautions are important for safe usage. Be sure to follow them and use the product correctly. WARNING Symbols and Meanings Do not use the Washlet if a malfunction occurs. WARNING • In case of breakdown or other problem, be sure to cut off power by means such as unplugging May result in death or serious injury. - Page 4 When using the product in a has been dropped or damaged, or if it has been dropped in water. Return the product to TOTO bathroom, install a fan or ventilation port and ensure good air fl ow through Europe GmbH for examination and repair.
- Page 5 Safety Precautions (Continued) CAUTION WARNING Do not use the product if the main unit is unstable. Always disconnect the power plug from the outlet before cleaning, • Doing so may cause the main unit to come loose and fall, resulting in injury. maintenance or inspection.
-
Page 6: Operational Precautions
Safety Precautions Operational Precautions (Continued) ■ For prevention of damage ■ For prevention of malfunctions CAUTION ● Do not block the body sensor or the remote control transmitter ● Wipe plastic areas or receiver. such as the main unit < About the body sensors > If a water leak should occur, always close the shutoff valve. -
Page 7: Parts Names
Parts Names Rear side of the main unit Main Display POWER LED Cover Toilet lid ENERGY SAVER LED CLEAN indicator SEAT LED Model name, part no., etc. Agent port Body sensor A (Page 11) Deodorizer outlet Remote control receiver Warm air outlet cover Wand cover Wand [Plug type]... -
Page 8: Preparation
Preparation Using the Product for the First Time 1.Insert the battery If the remote control is secured 2.Turn on the power 3.Open the shutoff valve (for anti theft) Remove the remote control Insert the power plug. Fully open the shutoff valve. from the hanger. -
Page 9: Basic Operations
Basic Operations Press a button on the remote control; a beep sounds when the main unit receives the signal. Functions that operate when a button is pressed during "REAR", "SOFT" or "FRONT" cleansing. Opening and closing [SEAT OPEN/CLOSE] Opens and closes the toilet seat. [OSCILLATING] ●The wand moves back and forth to Stopping... - Page 10 Basic Operations About the Menu Screen This section is an overview of the settings that can be confi gured with the remote control. • See the corresponding pages for the detailed descriptions. Level 1 Level 2 Level 3 Remote control back side CLEANING DESCALING MODE 1.
-
Page 11: Automatic Functions (Cleaning Features)
Automatic Functions Support Cleaning Cleaning Features ■ CLEAN indicator ■ Bowl light Lights to show that the "CLEAN" Lights to show that auto bowl cleaning functions are operating. and auto wand cleaning are operating. [ewater+] is used automatically to clean the wand and toilet bowl. -
Page 12: Automatic Functions (Convenience Features)
Automatic Functions Convenience Features As you As you Various automatic As you sit As you move away functions are available, approach stand up such as a toilet lid that opens and closes automatically. Changing • Operation under the initial settings is described below. Note settings When using the toilet seat... -
Page 13: Temperature Adjustment
Temperature Adjustment Warm Water / Toilet Seat / Drying You can adjust the temperature levels or turn the settings to "OFF". Press [TEMP]. <Settings complete> to select the to select item you want to set. the temperature level. TEMPERATURE TEMPERATURE TEMPERATURE SETTING SETTING... -
Page 14: Energy Saver Features
Energy Saver Features Type You can save energy by turning the toilet seat heater to a low temperature (or turning the heater "OFF") during periods when the toilet will be used infrequently. • It takes about 10 days for the product to determine the periods when it is used relatively less frequently. When energy saver is set When energy saver is in operation Type... - Page 15 Energy Saver Features How to Set Set the timer energy saver at the time you want to start it. Press [MENU]. to select ENERGY SAVER [AUTO ENERGY 1. AUTO ENERGY SAVER]. SAVER AUTO to select [ENERGY SAVER] and then press ENERGY to select ENERGY...
-
Page 16: Power Plug / Main Unit
Maintenance Power plug Main unit Power plug Main unit WARNING (Perform monthly) (Perform daily) <Expect concealed power connection type> Always disconnect the power plug from the outlet before cleaning, maintenance • Toilet paper • Dry cloth or inspection. (Page 15) Soft cloth soaked in water •... -
Page 17: Gap Between The Main Unit And The Toilet Lid
Maintenance Gap between the main unit and the toilet lid Wand Deodorizing fi lter Wand Deodorizing fi lter Gap between the main unit and the toilet lid (Perform monthly) (Perform monthly) (Perform monthly) <Wand cleaning> If you notice dirt <If you notice odors> The toilet lid can be removed for thorough Unplug the power plug. -
Page 18: Descaling Mode
(included item) (included item) to select [CLEANING]. MENU 1. CLEANING 2. ENERGY Descaling agent (TOTO specifi ed) SAVER Press [ENTER]. Attention! CLEANING ● Please use one of the following descaling agents at specified concentration. (Failure to do so may cause 1. - Page 19 Maintenance Descaling mode <If you think the water pressure has weakened> Descaling mode <When [POWER] LED (orange) and [ENERGY SAVER] LED (orange) fl ash> (Continued) Drain water passage. Insert funnel and pour diluted agent. (1st time) to select [YES]. DESCALING MODE Funnel Beaker Attention!
-
Page 20: Water Fi Lter Drain Valve
Maintenance Descaling mode Water fi lter drain valve Descaling mode Water fi lter drain valve <If you think the water pressure has weakened> (Perform once every 6 months) <When [POWER] LED (orange) and [ENERGY SAVER] LED (orange) fl ash> (Continued) <If you think the water pressure has weakened>... -
Page 21: Changing Settings
Changing Settings Setting List Setting Setting Types Available Settings* Ref. Page AUTO OPEN/ • Set whether or not to open the toilet lid ON/OFF CLOSE automatically Page 42 AUTO CLOSE • Change the amount of time before the lid/seat 25SEC/90SEC WAITING TIME closes automatically AUTO... - Page 22 Changing Settings AUTO OPEN/CLOSE Press [MENU]. to select AUTO OPEN/CLOSE [AUTO OPEN/ 1. AUTO CLOSE]. OPEN/CLOSE Set whether or not to open the toilet lid automatically AUTO OPEN/ MENU select [AUTO to select 1. CLEANING AUTO CLOSE FUNCTIONS] OPEN/CLOSE 2. ENERGY [ON/OFF] and then AUTO SAVER...
- Page 23 Changing Settings AUTO OPEN/CLOSE Press [MENU]. to select AUTO OPEN/CLOSE [AUTO OPEN 2. AUTO CLOSE WAITING TIME WAITING TIME]. 90 SEC Change the time period till 3. AUTO OPEN automatic opening WAITING TIME 15 SEC (15 SEC, 30 SEC or 90 SEC) MENU select [AUTO (After closing manually.)
- Page 24 Changing Settings CLEANING Press [MENU]. to select CLEANING [AUTO WAND 1. AUTO WAND CLEANING CLEANING]. Set whether or not to clean the wand automatically MENU select [AUTO AUTO WAND 1. CLEANING FUNCTIONS] to select 2. ENERGY CLEANING CLEANING SAVER and then press [ON/OFF] and then AUTO WAND 3.
- Page 25 Changing Settings LIGHT Press [MENU]. to select LIGHT [SOFT LIGHT]. 1. SOFT LIGHT Set whether or not to use the soft light MENU select [AUTO SOFT LIGHT to select 1. CLEANING LIGHT FUNCTIONS] 2. ENERGY [ON/OFF] and then SAVER SOFT LIGHT 1.
- Page 26 Changing Settings OTHER SETTINGS Press [MENU]. to select OTHER SETTINGS [BEEP]. 1． BEEP Set whether or not to make a beep sound to select OTHER MENU BEEP SETTINGS to select [ON/OFF] and then 1. CLEANING BEEP 1． BEEP [OTHER 2. ENERGY press [ENTER].
-
Page 27: What To Do
What to Do? What to Do? Freeze Damage Prevention If you cannot operate with the remote control When the ambient temperature is likely to drop to 0°C or lower, take measures to prevent freezing. Operation is also possible using the Attention! ■... -
Page 28: Troubleshooting
What to Do? Troubleshooting Long Periods of Disuse First, try the actions described on pages 55 to 60. If the If the toilet is in a location you will not visit for a long time, drain the water. CAUTION problem persists, consult the installer, seller or the contact (The water in the tank may become contaminated and cause skin irritation or other problems.) listed on the back cover of this manual. - Page 29 Troubleshooting Rear and Front Cleansing, Wand Warm Air Drying Ref. Ref. Trouble Please check Trouble Please check Page Page The dryer ● Can you operate with the control panel? (Check while sitting on the toilet seat.) ● Is the remote control preset temperature set to a low level? ➞...
- Page 30 Troubleshooting Toilet Seat and Toilet Lid (AUTO OPEN/CLOSE) Energy Saver (Continued) Ref. Ref. Trouble Please check Trouble Please check Page Page ● Is "AUTO OPEN/CLOSE (LID)" set to "ON"? ● Did you replace the remote control batteries? The timer energy-saver The toilet lid closes ●...
-
Page 31: Specifi Cations
W 392mm x D 575mm x H 134mm product main body are ➞ Please peroform Descaling mode. Weight About 7kg blinking * Temperature around the warm air outlet measured by TOTO. ● When disposing of this product, please follow your local or state guidelines for proper disposal. - Page 32 TOTO distributor or product service contractor, or directly to a TOTO sales offi ce. If, because of the size of the product or nature of the defect, the product cannot be returned to TOTO, receipt by TOTO of a written notice of the defect shall constitute delivery.
