M2 Antenna Systems 902-5 YAGI Manual

SPECIFICATIONS:

Model ........................................ 902-5
Frequency Range ...................... 900 To 930 MHz
Usable Range ............................ 880-940 MHz
*Gain ..........................................
Front to back ..............................
Beamwidth ...............................
Feed Impedance. ....................... 50 Ohms
VSWR ........................................

FEATURES:

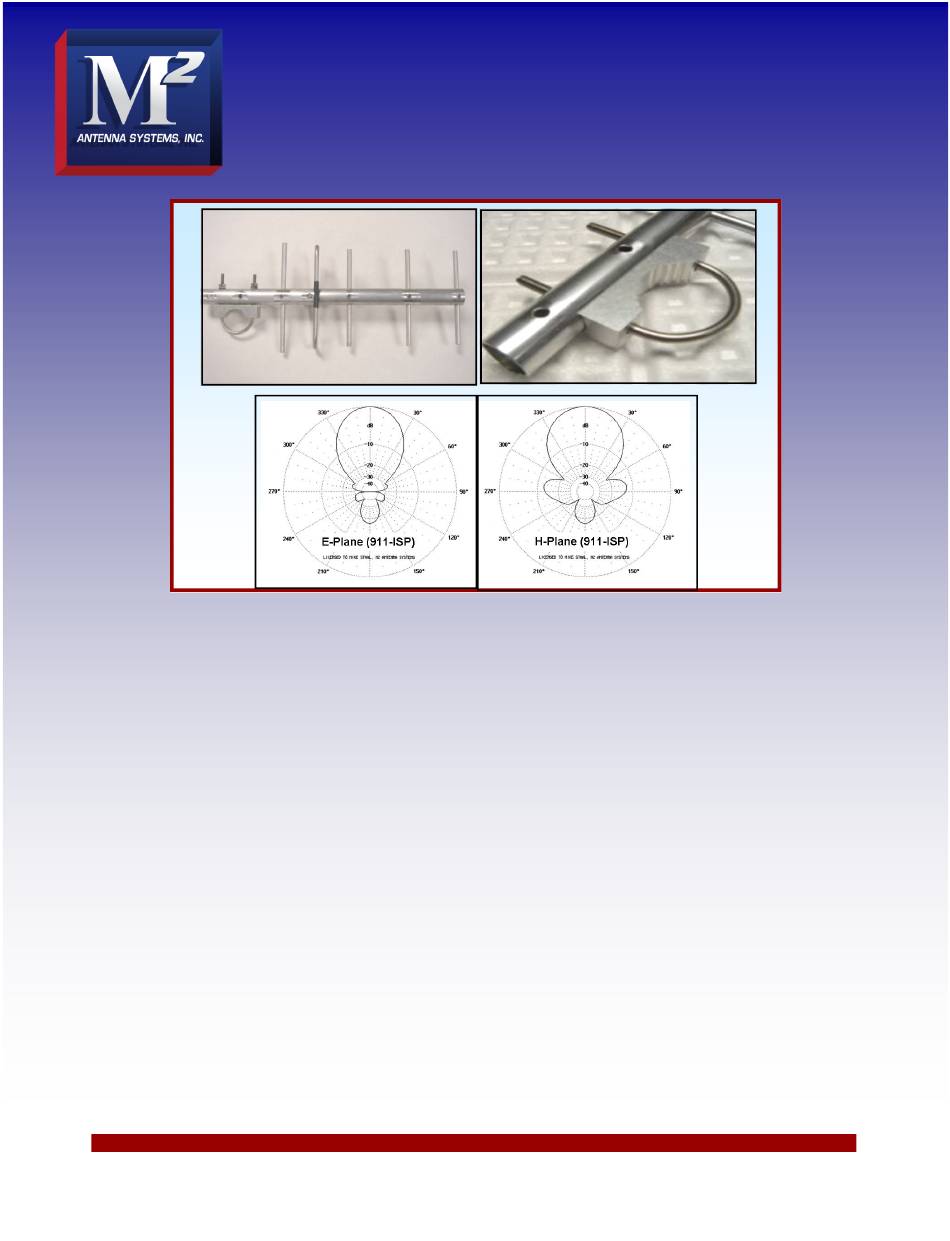

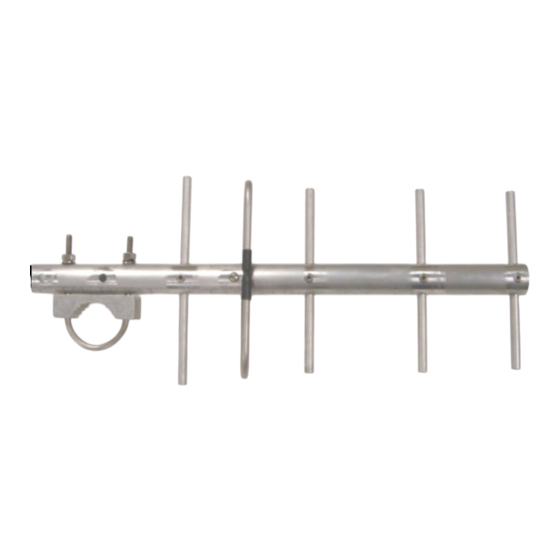

The 902-5 Wireless internet antenna, has been designed to give you optimum performance for the smallest
package size. The new 5/16" element design decreases the effects of rain and light snow deterioration often seen
in similar antennas.
The heart of the 902-5, the folded dipole, provides a virtual flat match for over 30 MHz. The gain has been designed to roll
-off quickly above range limits to prevent receiver overload from high power services above 930 MHz. The heavy duty
boom and 5/16" elements, give the ISP service confidence for superior performance and longevity.
The 902-5 is a DC grounded antenna designed to work with many radios including the Wave Rider. The 3003 and 3004
Wave Rider radios have internal DC circuit protection built in.
M2 Antenna Systems, Inc. 4402 N. Selland Ave. Fresno, CA 93722
M2 Antenna Systems, Inc.
Model No: 902-5 YAGI
11dBi
17 dB
H= 52° / E=44°
1.3:1 TYPICAL
*Subtract 2.14 from dBi for dBd
Tel: (559) 432-8873 Fax: (559) 432-3059 Web: www.m2inc.com
©2017 M2 Antenna Systems Incorporated
Input Connector .......................... "N" Female
Polarity ....................................... VERT / HORZ
Power Handling .......................... 500 Watts
Boom Length / Dia .....................
Stacking Distance ......................
Mast Size ....................................
Wind area / Survival ...................
Weight / Ship Wt. .......................
1"
28"
1 1/4" TO 2"
(.1) SQ FT./ 100 MPH
1 LB
05/04/17
Rev.00
