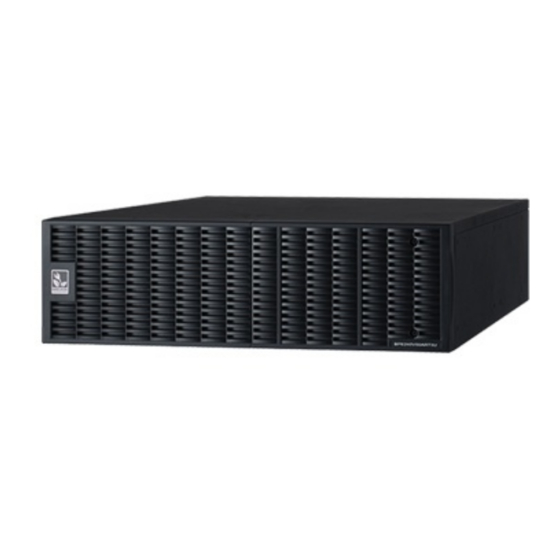

- Page 1 User’s Manual OL6000ERT3UP OL8000ERT3UP OL10000ERT3UP OL6000ERT3UM OL8000ERT3UM OL10000ERT3UM Cyber Power Systems, Inc. www.cyberpower.com K01-0000508-01...
-
Page 2: Important Safety Instructions
KEEP UNAUTHORIZED CAUTION! Wiring must be done by qualified personnel. PERSONNEL AWAY FROM BATTERIES! CAUTION! DO NOT USE FOR MEDICAL OR LIFE SUPPORT EQUIPMENT! Under no circumstances this unit should be used for Copyright © 2017 Cyber Power Systems, Inc. - Page 3 Screw hole dust covers (14) * 2 sets USB communication cable Power cord * PowerPanel® Business Edition software is available Serial Interface Cable (RS-232) on our website. Please visit www.cpsww.com and go to the Software Section for FREE download. Copyright © 2017 Cyber Power Systems, Inc.
-
Page 4: Hardware Installation
Tighten the front rail screws on the rack. Step 2: Rackmount ears & hanging brackets installation Attach two rackmount ears to the UPS using the provided M5X7L*8pcs screws and tighten two hanging brackets with the M5X6L*6pcs screws. Copyright © 2017 Cyber Power Systems, Inc. - Page 5 Slide the hanging brackets on the UPS into the rails mounted in the rack with the front of the unit facing toward you. Secure the UPS to your rack with four M5X12L*4pcs screws at the front of the rack. (Located in position 5 & position 7) Copyright © 2017 Cyber Power Systems, Inc.
-
Page 6: Vertical/Tower Installation
Secure the tie bracket with the screws (M5X7*4pcs). Insert dust covers into the screw holes that are not being used. ELECTRICAL INSTALLATION After completing the hardware installation of the UPS, you are now ready to plug in the UPS and connect your equipment. Copyright © 2017 Cyber Power Systems, Inc. - Page 7 CAUTION! Do not work alone under hazardous conditions. CAUTION! In case of the risk of electric shock, do not remove the top cover. CAUTION! The battery can energize hazardous live parts inside even when the AC input power is disconnected. Copyright © 2017 Cyber Power Systems, Inc.
-
Page 8: Installing Your Ups System
UPS will continuously emit two beeps per second. For resetting the unit, unplug some equipment from the outlets. Make sure your equipment carries a load current within the unit’s safe range, (refer to the technical specifications). Copyright © 2017 Cyber Power Systems, Inc. -
Page 9: Hardwiring The Input/ Output Terminals
Step 1: Remove the inspection window cover Step 2: Remove the terminal block cover Loosen the four screws to remove the inspection window cover. Loosen the four screws to remove the terminal block cover. Copyright © 2017 Cyber Power Systems, Inc. - Page 10 Tighten the four screws to fix the inspection window cover on the PDU’s. Step 4: Output configuration Insert the output cable through the appropriate cable gland (not included) and connect the three wires to the output terminal block. Copyright © 2017 Cyber Power Systems, Inc.
-
Page 11: Backfeed Protection
3. Hardwire the input terminals and “Backfeed Protection Connector” as shown in the following diagram. 4. The external isolation device must be installed in the Mains path. Mains L N PE IP-L IP-N PSDR 2A Fuse Backfeed (Slow Blow) AC-L AC-N Copyright © 2017 Cyber Power Systems, Inc. -
Page 12: Basic Operation
Use these connectors to attach the PDU or HW PDU to the Power The UPS can control the computer’s shutdown during a power outage module. through the connection while the computer can monitor the UPS and alter its various programmable parameters. Copyright © 2017 Cyber Power Systems, Inc. - Page 13 “CRITICAL” outlets, while stopping the power supply to 6. Input / Output Connectors equipment connected to “NONCRITICAL” outlets after a designated Use these connectors to attach the PDU or HW PDU to the Power period of time. module. Copyright © 2017 Cyber Power Systems, Inc.
- Page 14 Step 3: Rotate the battery cable retention bracket and tighten the two screws to fix battery cable. Step 4: Use a power cord to plug AC input inlet of the battery module into a wall receptacle. Copyright © 2017 Cyber Power Systems, Inc.
- Page 15 Step 4: Rotate the battery cable retention bracket and tighten the two screws to fix battery cable. Step 5: Use a power cord to plug AC input inlet of the 2 battery module into AC output outlet of the 1 Battery module. Copyright © 2017 Cyber Power Systems, Inc.
-
Page 16: Led Indicators - Ups Status
Press this button to scroll up in the LCD menu. ▼ Press this button to scroll down in the LCD menu. ENTER Press this button to select an option. Press this button to cancel or return to previous LCD menu. Copyright © 2017 Cyber Power Systems, Inc. -
Page 17: Multi-Function Lcd Main Menu
°F (Fahrenheit) for the UPS Displays the stage of Smart Battery Management with Operation = XXXXX XH(M) Time Rating = XXK VA Displays the UPS Rating MCU Ver = XXXX Displays the MCU Firmware Version Copyright © 2017 Cyber Power Systems, Inc. -
Page 18: Lcd Event Log
Press the “▲” and “▼” buttons to scroll to the “Configure” option. Press the “ENTER” button to select the “Configure” submenu. Press the “▲” and “▼” buttons to scroll to the “Configure” submenu in the following table. Copyright © 2017 Cyber Power Systems, Inc. -
Page 19: Eco Mode
Screen Saver [Disable] [1 Minutes] [5 Minutes] 5 minutes Clear Event Log [Activate?] None Button OFF LOCK [Disable] [Enable] Disable Charger Function [SBM] [Constant] Signal Inputs [Disable] [EPO][ROO] Disable Charger Check [Disable] [Enable] Disable Copyright © 2017 Cyber Power Systems, Inc. - Page 20 The LCD screen displays the battery capacity during charging with a graphical icon while on Line Mode. Discharging Capacity The LCD screen displays the remaining battery capacity with a graphical icon while on Battery Mode. Copyright © 2017 Cyber Power Systems, Inc.
-
Page 21: Lcd Module Remote Control And Wall-Mounting Instructions
Step 4: Mount LCD Module on the Wall SAFETY PRECAUTIONS CAUTION! It must be done by qualified personnel. CAUTION! To avoid electric shock, turn off and unplug the unit before installing REMOTE CONTROL or WALL-MOUNTING INSTRUCTIONS. Copyright © 2017 Cyber Power Systems, Inc. -
Page 22: Maintenance
Only use replacement batteries which are certified by properly. Contact your local government for more information about Cyber Power Systems. Use of incorrect battery type is an electrical proper disposal and recycling of batteries. Do not dispose of batteries hazard that could lead to explosion, fire, electric shock, or short circuit. -
Page 23: Manual Bypass Switch Operation
CAUTION! Do not slide the Interlock Bracket when the LCD screen shows “Generator On” or “Converter On”. CAUTION! Do not turn the Manual Bypass Switch when hearing a warning beep from the Power module. Copyright © 2017 Cyber Power Systems, Inc. - Page 24 CAUTION! Do not slide the Interlock Bracket when the LCD screen shows “Generator On” or “Converter On”. CAUTION! Do not turn the Manual Bypass Switch when hearing a warning beep from the Power module. Copyright © 2017 Cyber Power Systems, Inc.
-
Page 25: Technical Specifications
L x W x H = 32.3 x 17 x 5.2in. (82 x 43.3 x 13.2cm) Dimensions--Battery Module L x W x H = 32.3 x 17 x 5.2in. (82 x 43.3 x 13.2cm) Net Weight--Power Module 63lbs(28.5Kg) Net Weight--Battery Module 167.2lbs(76Kg) 171.6lbs(78Kg) Safety Conformance Approvals CE, RCM Copyright © 2017 Cyber Power Systems, Inc. -
Page 26: Troubleshooting
1. Shut down UPS and turn off input breaker. Low O/P V Output voltage is too low. 2. Contact CyberPower for repair. Bus Fault Internal DC bus voltage is too high or too low. Copyright © 2017 Cyber Power Systems, Inc. - Page 27 TROUBLE SHOOTING Cyber Power Systems, Inc. www.cyberpower.com © Entire contents copyright 2017 Cyber Power Systems, Inc., All rights reserved. Reproduction in whole or in part ® ® without permission is prohibited. PowerPanel Business Edition and PowerPanel Personal Edition are trademarks of Cyber Power Systems, Inc.
