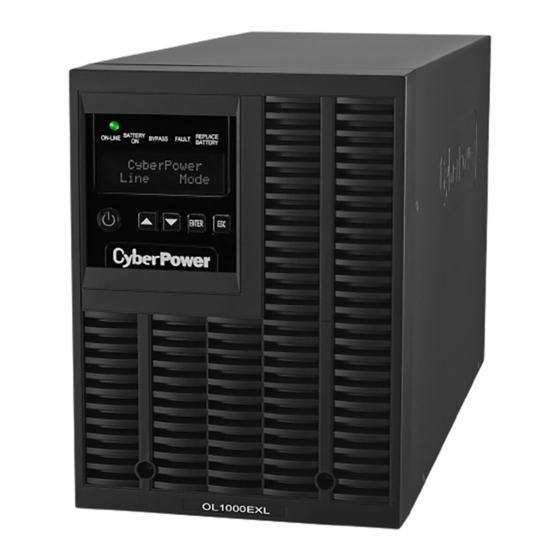

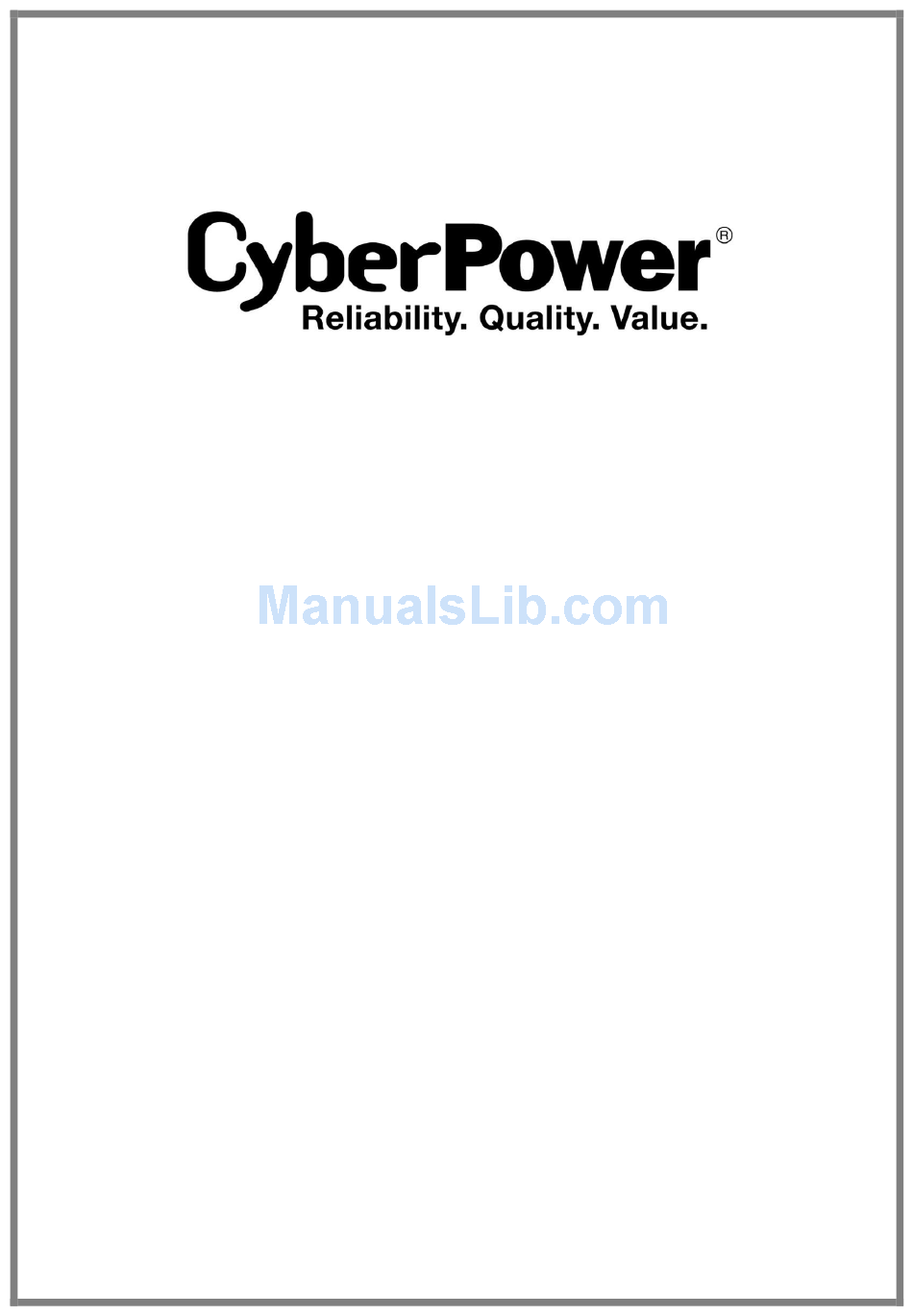

- Page 1 User’s Manual OL1000EXL OL1500EXL OL2000EXL OL3000EXL CyberPower Systems Inc. www.cpsww.com K01-0000358-00...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS This manual contains important instructions. Please read and follow all instructions carefully during installation and operation of the unit. Read this manual thoroughly before attempting to unpack, install, or operate the UPS. CAUTION! The UPS must be connected to a grounded AC power CAUTION! Wiring must be done by qualified personnel. -
Page 3: Safety Precautions
UNPACKING User’s manual Register card Phone line USB communication cable Serial Interface Cable (RS-232) 1K/1.5KVA or 2K/3KVA UPS PowerPanel® Business Edition software CD SAFETY PRECAUTIONS CAUTION! Installation environment should be in a temperature and humidity controlled indoor area free of conductive contaminants. Do not install this UPS where excessive moisture or heat is present (Please see specifications for acceptable temperature and humidity range). -
Page 4: Installing Your Ups System
INSTALLING YOUR UPS SYSTEM SYSTEM BLOCK DIAGRAM Bypass Input Inverter Output Input Output Filter AC/DC DC/AC Filter LCD Module Charger Control Battery DC/DC AC/DC & USB & DB9 Monitoring SNMP Slot Line Mode Battery Mode Bypass Mode HARDWARE INSTALLATION GUIDE Battery charge loss may occur during shipping and storage. -
Page 5: Basic Operation
Enables an emergency UPS Power-Off from a remote location. period of time. 14. AC Input Inlet Connect the AC Power cord to a properly wired and grounded outlet. OL1000EXL / OL1500EXL OL2000EXL / OL3000EXL Copyright © 2014 CyberPower Systems, Inc. - Page 6 BASIC OPERATION OL1000EXL / OL1500EXL OL2000EXL OL3000EXL Copyright © 2014 CyberPower Systems, Inc.
-
Page 7: Led Indicators - Ups Status
OPERATION INSTRUCTIONS FOR LCD MODULE LED INDICATORS – UPS STATUS LED Indicators Color UPS Status Description ON/OFF White UPS power is on. ON-LINE Green UPS is operating in Line Mode. BATTERY ON Yellow UPS is operating in Battery Mode. BYPASS Yellow UPS is operating in Bypass Mode, Manual Bypass or ECO (Economy) Mode. -
Page 8: Lcd Setup Functions
LCD SETUP FUNCTIONS MULTI-FUNCTION LCD MAIN MENU Press “Enter” button to activate “MAIN MENU”. MAIN MENU submenu Function Description Information Displays the UPS information. Configure Displays the UPS settings that can be configured by the user. Displays most recent events, event count, time... -
Page 9: Lcd Event Log
LCD SETUP FUNCTIONS LCD EVENT LOG 3 Event Logs of UPS can be recorded. Press the “ENTER” button to activate the “MAIN MENU”. Press the “▲” and “▼” buttons to scroll to the “Event Log” option. Press the “ENTER” button to select the “Event Log” submenu. Press the “▲”... - Page 10 LCD SETUP FUNCTIONS Configure Submenu Available Settings Default Setting Output Voltage* = [200V] [208V] [220V] [230V] [240V] 230V* Range= [+/- 1%] [+/- 2%] [+/- 3%] [+/- 4%] [+/- 5%] Sync Freq Window +/- 5% [+/- 6%] [+/- 7%] [+/- 8%] [+/- 9%] [+/-10%] Range= [+10%/-10%] [+10%/-15%] [+10%/-20%] Bypass V Window +10%/-15%...
-
Page 11: Silencing Audible Alarms
LCD SETUP FUNCTIONS SILENCING AUDIBLE ALARMS Press any of four function buttons on the LCD module; Note: the alarm can not be turned off for a “Battery Low” condition. This condition will still result in an audible alarm. Change the 'Audible Alarms' option to 'Disable' in the LCD screen and it will no long give an audible alarm for any malfunction. -
Page 12: Maintenance
MAINTENANCE CAUTION! Do not open or mutilate the batteries. Electrolyte fluid is Storage harmful to the skin/eyes and may be toxic. To store your UPS for an extended period, cover it and store with the CAUTION! To avoid electric shock, turn off and unplug the UPS from battery fully charged. -
Page 13: Technical Specifications
TECHNICAL SPECIFICATIONS Model OL1000EXL OL1500EXL OL2000EXL OL3000EXL Configuration Capacity (VA) 1000VA 1500VA 2000VA 3000VA Capacity (Watts) 900W 1350W 1800W 2700W Form Factor Tower Energy-saving Technology Yes, ECO Mode Efficiency > 93% Input 120~139Vac for 0~ 60% Load 140~159Vac for 0~ 70% Load... -
Page 14: Troubleshooting
TROUBLE SHOOTING Problem Possible Cause Solution Warning Your equipment requires more power than the Shut off non-essential equipment. If this solves UPS can provide. If the UPS is in Line Mode O/P Overload the overload problem, the UPS will transfer to then it will transfer to Bypass Mode;...
