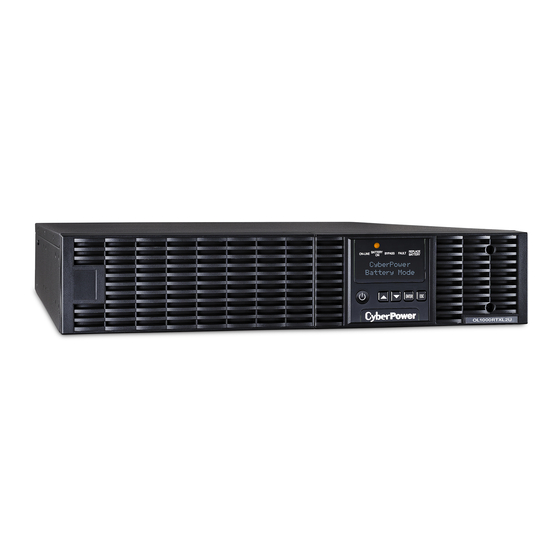

Cyber Power OL1000RTXL2U Battery Cartridge Replacement Instruction

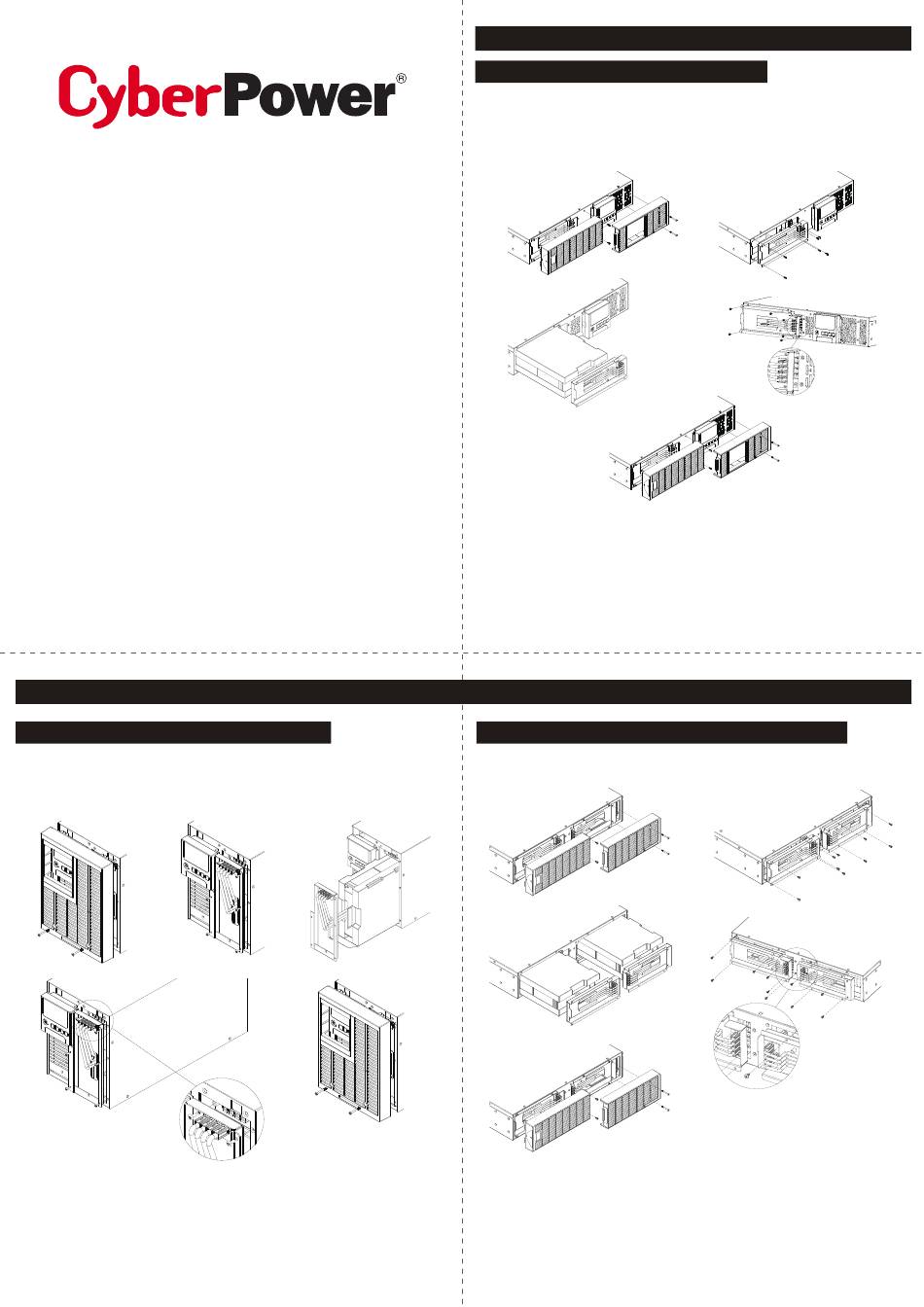

Battery Replacement

Instructions
Smart App Online Tower 1-3KVA Series
MODEL: OL1000XL, OL1500XL, OL2200XL, OL3000XL, OL1000EXL,
OL1500EXL, OL2000EXL, OL3000EXL, OL1000XL JP,
OL1500XL JP, OL2200XL JP, OL3000XL JP
1 2
4
1. Remove the front faceplates.
2. Remove the screws securing the battery retention panel.
3. Pull the battery pack out together with the retention panel slowly
and then put the new battery pack back into the UPS.
4. Reconnect the battery pack connectors to the UPS. Then tighten the
screws of the battery retention panel.
5. Reinstall the front faceplates.
K01-0000459-01
3
5
Smart App Online RT 1-3KVA Series
MODEL: OL1000RTXL2U, OL1500RTXL2U, OL2200RTXL2U,
OL3000RTXL2U, OL3000RTXL2UHV, OL1000ERTXL2U,
OL1500ERTXL2U, OL2000ERTXL2U, OL3000ERTXL2U,
OL1000RT JP, OL1500RT JP, OL2200RT JP, OL3000RT JP
1
3
5
1. Remove the front faceplates.
2. Remove the screws securing the battery retention panel.
3. Pull the battery pack out together with the retention panel slowly
and then put the new battery pack back into the UPS.
4. Reconnect the battery pack connectors to the UPS. Then tighten the
screws of the battery retention panel.
5. Reinstall the front faceplates.
Smart App Online EBM for RT 1-1.5KVA Series
MODEL: BP36V60ART2U, BPE36V60ART2U, BPE36V60ART2US
1
3
5
1. Remove the front faceplates.
2. Remove the screws securing the battery retention panels.
3. Pull the battery packs out together with the retention panels slowly
and then put the new battery packs back into the EBM.
4. Reconnect the battery pack connectors to the EBM enclosure. Then
tighten the screws of the battery retention panel.
5. Reinstall the front faceplates.
2
4
2
4
