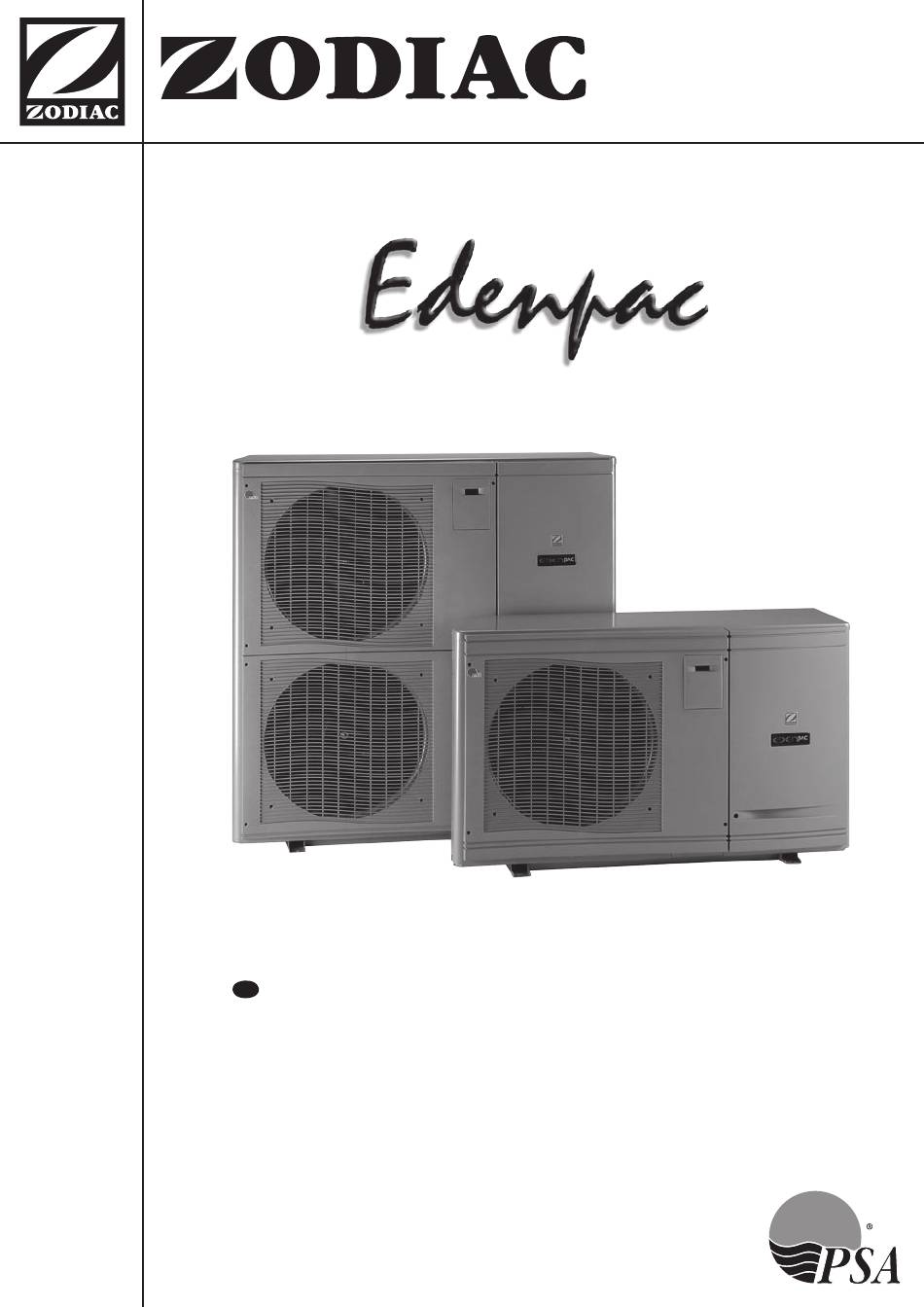

- Page 1 1-2-3-4-5-6-7-8 Heat pump ............... Instructions for installation and use Ed. 09/2009 Réf. : 1011463-11...
- Page 2 IMPORTANT These installation instructions are an integral part of the product and must be given to the installer and kept by the user. The warnings and indications contained in the present handbook must be carefully read and understood as they provide important information relative to handling and operating safety. This handbook must therefore always be kept available for later consultation.
-
Page 3: Table Of Contents
1.2 Voltage ............2 1.3 Water treatment ..........2 2 Description ..........2 2.1 Presentation ........... 2 2.1.1 Edenpac 1, 2, 3, 4 and 5 2.1.2 Edenpac 6 2.1.3 Edenpac 7 and 8 2.2 Dimensional characteristics ......6 2.2.1 Edenpac 1, 2, 3, 4 and 5 2.2.2 Edenpac 6, 7 and 8... -
Page 4: General
1. GENERAL 1.1 General terms of delivery Any equipment, even CARRIAGE and PACKING FREE, travel at the consignee’s risk. The consignee shall make reserves in writing on the CARRIER’S delivery bill if he notes damage caused during transport (confirmation to be sent to the CARRIER within 48 hours by registered mail with acknowledgement of receipt). -
Page 5: Edenpac 1, 2, 3, 4 And
2.1.1 Edenpac 1, 2, 3, 4 and 5 Attention! Never use the panel reinforcement as a load-bearing support. Front panel with polypropylene grid Removable polypropylene panel to access the technical compartment Motor fan unit Closing snap clips Access door to digital display (EVK) - Page 6 2.1.2 Edenpac 6 Attention! Never use the panel reinforcement as a load-bearing support. Front panel with polypropylene grid Pool outlet water connection (40/49 male screw fastening) Motor fan unit Removable polypropylene panel to access the Access door to digital display (EVK) technical compartment Electric board Closing snap clips...
-
Page 7: Edenpac 7 And
2.1.3 Edenpac 7 and 8 Attention! Never use the panel reinforcement as a load-bearing support. Access door to digital display (EVK) Arched “plate fin” evaporator Anti-frost sensor Fastening plates Pool inlet water connection (40/49 male screw fastening) Packing gland (and/or cable inlet) Pool outlet water connection (40/49 male screw fastening) Removable polypropylene panel to access the... -
Page 8: Edenpac 1, 2, 3, 4 And
To be transported upright in its original packaging close to the installation site. Weight of Edenpac 1 with packaging: ≅ 96 kg Weight of Edenpac 2 with packaging: ≅ 98 kg Weight of Edenpac 3 with packaging: ≅ 101 kg... -
Page 9: Edenpac 6, 7 And
2.2.2 Edenpac 6, 7 and 8 Side view EdenPAC 6 Side view EdenPAC 7 and 8 Rear view EdenPAC 6 Rear view EdenPAC 7 and 8 Dimensions of the appliance with packaging (in mm) : 1275 To be transported upright in its original packaging close to the installation site. -
Page 10: Installation
3. INSTALLATION Tools required for installation: - 1 set of flat head screwdrivers - 1 set of crosshead screwdrivers - 1 cutter - 1 wire stripper - 1 pipe or round head spanner 13 - 1 ratchet spanner - 1 pliers - 2 straps (for handling) Choose the appliance installation site according to the following criteria:... -
Page 11: Connections
• the blower must not be directed towards surrounding windows. • vibrations and noise must not be transmitted to a building close by. • the heat pump must be installed at a minimum distance from the end of the pool, as defined by the applicable national electrical standards. -
Page 12: Edenpac With Double Fan
(see diagrams below). - Hydraulic circuit test pressure: 3 bars - Hydraulic circuit operating pressure: 1.5 bar Edenpac 1,2,3,4 and 5: average water flow 3.8 to 6.5 m³/h- pressure drop 1.3 to 1.7 mCE (0.13 to 0.17 bar) V1-V2-V3: By-pass valve... -
Page 13: Electric Connections
• The appliance is foreseen for connection to the mains circuit with TT and TN.S neutral connection (according to NF C 15-100 or national standards in force). • Supply cable section: protection: - Edenpac 1: 3 x 2.5 mm²* (single-phase 230V/1/50Hz) 16 A - Edenpac 2: 3 x 2.5 mm²*... -
Page 14: Regulator Operation
Optional remote control functions: • Remote On/Off start up: The terminals 26 and 27 of the Edenpac heat pump enable a remote start up by means of a switch or any other device. The heat pump is supplied with a jumper between these terminals. If this function is used, the jumper shall be removed. -
Page 15: Setting The Target Temperature
Appliance current current power at consumption* restored* power weight consumption* consumed 10 m EDENPAC 1 Single phase 1,8 kW 8,5 kW 7,8 A 13,5 A 65,5 dBA 37,5 dBA 86 kg EDENPAC 2 Single phase 2,04 kW 10 kW 9,8 A... -
Page 16: Check
Heat pump operating conditions: • The outside temperature must be higher than +5°C (automatic shut-off by anti-frost sensor SD2) and below +38°C. • A sufficient water flow must pass into the heat pump. Note: The heat pump stops heating the pool when it starts a defrost cycle that can occur when surrounding air temperature is between 5 and 12°C. -
Page 17: Checking
* For information: this time period may increase during a defrost cycle or if the compressor stop time is less than 180 s. -In case of a power failure, a timer of 125 seconds starts when the power supply is restored before the unit starts again. -
Page 18: Winter Storage
Automatic 1- Purge hydraulic circuit High pressure fault 1- Water and air mixture (if less than 4 faults within an hour) or 2- Consult a ZPCE-approved in refrigerating passing in the appliance technician to check the refrigerant circuit 2- Refrigerant overload by pressing the button if dHP level... -
Page 19: Electrical Diagrams
9. ELECTRICAL DIAGRAMS 9.1 Electrical diagram EdenPAC single-phase IMPORTANT Elimination or shunting of one of the safety or remote control devices automatically cancels the GUARANTEE. - Page 20 IMPORTANT Elimination or shunting of one of the safety or remote control devices automatically cancels the GUARANTEE.
-
Page 21: Electrical Diagrams Edenpac Three-Phase
9.2 Electrical diagrams EdenPAC three-phase IMPORTANT Elimination or shunting of one of the safety or remote control devices automatically cancels the GUARANTEE. - Page 22 IMPORTANT Elimination or shunting of one of the safety or remote control devices automatically cancels the GUARANTEE. For ongoing improvement, our products are subject to change without notice. - Edition 09/2009...
- Page 23 ADDITIONAL RECOMMENDATIONS In relation with the Pressurised Equipment Directive (PED-97/23/CE) I. Installation and maintenance • Before beginning any installation, commissioning, operation or maintenance work, the persons responsible for these tasks must have read and understood all instructions and recommendations contained in the unit installation instructions as well as in the project technical file. •...
- Page 24 Your appliance is reaching the end of its working life. You would like to get rid of it or replace it. Please do not throw it into the dustbin or into your local council’s selective sorting containers. When this symbol appears on a new appliance, it means that the equipment must not be thrown away and that it will be collected selectively so that it can be reused, recycled or recovered.
- Page 28 Chauffage et déshumidification de piscines - Heating and dehumidification of pools ZPCE - Boulevard de la Romanerie BP 90023 - 49180 Saint Barthélemy d’Anjou Cedex - France Tél. +33 2 41 21 17 30 - Fax +33 2 41 21 12 26 - www.psa-zodiac.com...
