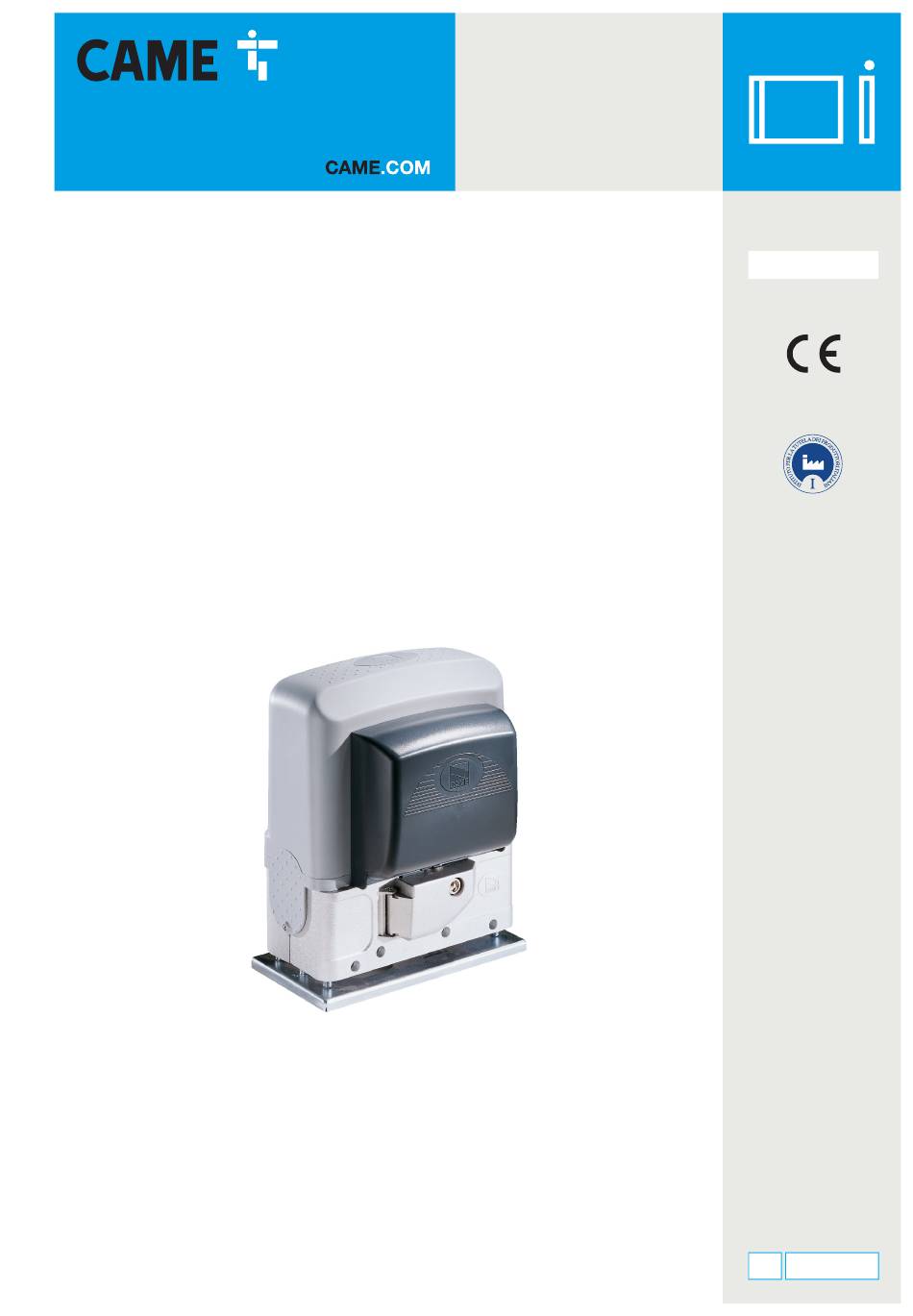

Sliding gate operator
FA01161-EN
BK series
BK-800 / 1200 / 1800 / 2200
1210 / 1810 / 2210
INSTALLATION OPERATION AND MAINTENANCE MANUAL
EN English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BK Series and is the answer not in the manual?

Questions and answers

Debra
January 30, 2025

I have a BK1200 and it has suddenly stopped responding to came fob 432NA. There is power to the motor but no sound when fob is pressed. There is a red light on the fob when pressed and new batteries are fitted. What might be the reason for no connection fob to motor please? Should we try to reprogramme the fob to motor? If so, can ou please instruct. Thank you.

1 comments:
Mr. Anderson
February 10, 2025

The CAME BK1200 may not be responding to the fob 432NA due to several reasons, such as:

1. Fob Not Programmed – The fob might not be paired with the motor.
2. Battery Issue – The fob’s battery could be depleted or weak.
3. Signal Interference – Other wireless devices or metal objects could be causing interference.
4. Receiver Issue – The motor’s receiver might not be functioning correctly.
5. Incorrect Frequency – The fob must match the motor’s frequency.

Yes, the fob should be reprogrammed to the motor if it is not recognized. Check the manual for the correct programming procedure.

This answer is automatically generated

Summary of Contents for CAME BK Series

  • Page 1 Sliding gate operator FA01161-EN BK series BK-800 / 1200 / 1800 / 2200 1210 / 1810 / 2210 INSTALLATION OPERATION AND MAINTENANCE MANUAL EN English...
  • Page 3: Electrical Connections

    ELECTRICAL CONNECTIONS ⚠ Warning! Before doing any work on the control board, cut off the mains power supply, and disconnect any batteries. The functions on the input and output contacts, the time settings and user management, are set and viewed on the graphic display. All wiring connections are quick-fuse protected.
  • Page 4: Power Supply

    FACTORY WIRING U V W FC FA F U V W FC FA F 230V (AC) Gearmotor Condenser + E - Closing limit-switch micro-switch Opening limit-switch micro-switch POWER SUPPLY  To vary the motor torque, move the shown faston to one of the four 120 / 230 V AC 50/60 Hz positions;...
  • Page 5: Control Devices

    CONTROL DEVICES STOP button (NC contact). For stopping the gate while excluding automatic closing. To resume movement either press the control button or any other control device.  Activate the F1 programming function. If the button is no used, leave this function deactivated.
  • Page 6 SAFETY DEVICES Photocells Configure contact CX or CY (NC), safety input for photocells. See F2 (CXinput) or F3 (CY input) set to: - C1 reopening during closing. When the gate is closing, opening the contact triggers the inversion of movement until the gate is fully open again; - C2 closing during opening.
  • Page 7 RIO-CONN RIO-EDGE RIO-CELL RIO-LUX PAIRED OPERATION OR CRP (CAME REMOTE PROTOCOL) Serial RS485 connection via CRP (Came Remote Protocol) UTP CAT 5 or for paired operation (see chapter called PAIRED CONNECTIONS AND OPERATION). A B GND  Fit the RSE card.
  • Page 8 PROGRAMMING DESCRIPTION OF THE COMMANDS The ESC button is for: - exiting menus; - cancelling changes; - stopping the gate (only when testing). The < > keys are for: - moving from one item to another; - increasing or decreasing a value; - opening and closing the gate (only when testing).
  • Page 9 EX-W contact output. It is adjustable between 60 seconds and 180 seconds. F49 Managing serial connection OFF (default) / 1 = Paired / 3 = CRP To enable the paired operating mode or the CRP (Came Remote Protocol). F50 Save data OFF (default) / ON Saving users and saved settings in memory roll.
  • Page 10 0 = 1200 Baud / 1 = 2400 Baud / 2 = 4800 Baud / 3 = 9600 Baud / 4 = 14400 Baud / 5 = 19200 Baud / 6 = 38400 Baud (default) / 7 = 57600 Baud / 8 = 115200 Baud For setting the communication speed used in the CRP (Came Remote Protocol) connection system. F65 Wireless input RIO-EDGE [T1] OFF (default) / P0 = P0 / P7 = P7 / P8 = P8 RIO-EDGE wireless safety device associated to a function of choice among those available: P0= stop gate and exclude any automatic closing;...
  • Page 11: Managing Users

    COMMISSIONING Once the electrical connections are done, have only skilled, qualified staff commission the operator into service. Before continuing, make sure the area is free of any obstructions, and that there are mechanical, opening and closing gate stops in place. Power up and begin configuring the system.
  • Page 12 SAVING AND UPLOADING ALL DATA (USERS AND CONFIGURATION) WITH THE MEMORY ROLL Procedure for memorizing all of the system's user and configuration data by using the Memory Roll, so they can be used with another control board, even on another system. Warning! Fitting and extracting the Memory Roll must be done with the mains power disconnected.
  • Page 15: Error Messages

    ERROR MESSAGES  The error messages are shown on the display. Safety test error. Insufficient working time. Release hatch open. Closing obstruction. E 10 Opening obstruction. E 11 Maximum number of obstructions detected. E 14 Serial communication error E 17 Wireless system error.
  • Page 16: Operation

    SLAVE DISMANTLING AND DISPOSAL ☞ CAME S.p.A. applies a certified Environmental Management System at its premises, which is compliant with the UNI EN ISO 14001 standard to ensure the environment is safeguarded. Please continue safeguarding the environment. At CAME we consider it one of the fundamentals of our operating and market strategies.
  • Page 17 CAME S.p.A. Via Martiri Della Libertà, 15 31030 Dosson di Casier - Treviso - Italy tel. (+39) 0422 4940 - fax. (+39) 0422 4941...
