Summary of Contents for Ironton 61478

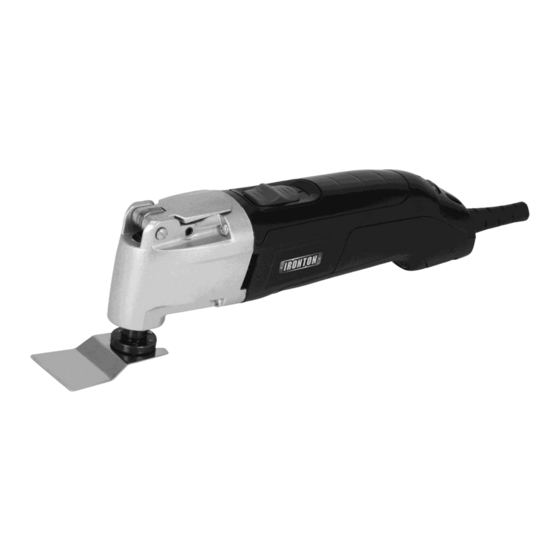

- Page 1 Multipurpose Oscillating Tool Owner’s Manual WARNING: Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Item #61478 READ & SAVE THESE INSTRUCTIONS...
- Page 2 Thank you very much for choosing an Ironton™ product! For future reference, please complete the owner’s record below: Serial Number/Lot Date Code: ________________________________ Purchase Date: ____________________________________________ Save the receipt, warranty, and this manual. It is important that you read the entire manual to become familiar with this product before you begin using it.
-
Page 3: Table Of Contents
Table of Contents Intended Use ............................4 Packaging Contents ..........................4 Technical Specifications ........................4 Important Safety Information ....................... 4 Specific Operation Warnings ....................... 6 Grounding .............................. 7 Extension Cords ............................ 8 Main Parts of Oscillating Tool ......................9 Before Each Use ............................ 9 Operating Instructions .......................... -
Page 4: Intended Use
Intended Use The Ironton Multipurpose Oscillating Tool is a versatile product for home repair, remodeling, and restoration. It’s a detail sander, close-quarter saw, power scraper, and grout removal tool. It’s perfect for trimming door jambs during flooring installation, removing old caulking, taking up vinyl flooring or carpeting, chiseling out door hinges, or trimming cabinets for installation. - Page 5 ⚠WARNING WORK AREA SAFETY Inspect the work area before each use. Keep work area clean, dry, free of clutter, and well-lit. Cluttered, wet, or dark work areas can result in injury. Using the product in confined work areas may put you dangerously close to cutting tools and rotating parts. ...
-
Page 6: Specific Operation Warnings
Check for damaged parts before each use. Carefully check that the product will operate properly and perform its intended function. Replace damaged or worn parts immediately. Never operate the product with a damaged part. Do not use a product with a malfunctioning switch. Any power tool that cannot be controlled with the power switch is dangerous and must be repaired by an authorized service representative before using. -
Page 7: Grounding
Grounding ⚠WARNING This machine must be grounded while in use to protect the operator from electrical shock. This unit is equipped with an electrical cord that has an equipment grounding conductor and a grounding plug. The plug MUST be plugged into a matching receptacle that is properly installed and grounded in accordance with ALL local codes and ordinances. -
Page 8: Extension Cords
Extension Cords ⚠WARNING USE A PROPER EXTENSION CORD. Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage, resulting in loss of power and cause overheating. -
Page 9: Main Parts Of Oscillating Tool
Main Parts of Oscillating Tool Subassembly Quick Change Lever ON/OFF Switch Speed Controller Saw Blade Sand Paper Pads Spade Sanding Pad Holder Before Each Use ⚠WARNING Use suitable devices to locate hidden cables or pipes. Contact with an electric cable may cause an electric shock. - Page 10 tool may contact hidden wiring or its own cord. Use auxiliary handles if supplied with the tool. Use the tool only for dry sanding and for cutting dry wood and plastics. Water entering the housing of the electric tool greatly increases the danger of an electric shock. ...
- Page 11 Using the Attachment 1. Lift up the quick change lever (1). 2. Attach the spade (3) to the tool. 3. Lower the quick change lever (1). The attachments can be positioned in a 30° angle to both sides of the tool (e.g., in line with the housing or on the right or left side of the housing). Page 11 of 18...
-
Page 12: Maintenance
Speed Controller Turn the speed controller to the desired setting to increase or decrease the speed. The controller can be adjusted from 1 – 6. The speed rate can be changed during operation as well. Maintenance ⚠WARNING Keep the ventilation slots clean and free from debris. Maintain the tool by adopting a program of conscientious repair and maintenance in accordance with the following recommended procedures. -
Page 13: Troubleshooting
Troubleshooting Use the table below to troubleshoot problems before contacting service personnel or your local dealer. If the problem continues after troubleshooting, call your local dealer for assistance. Failure Possible Cause Corrective Action Check that cord is plugged in to power Cord not connected. -
Page 14: Parts Diagram
Parts Diagram Page 14 of 18... -
Page 15: Parts List
Parts List Part Number Part Description Quantity Flange Felt-ring Spindle Seal Ring Circlip for Shaft 28 Spline Spring Washer Bearing 6001 Circlip for Shaft 14 Toggle Block Reducer Limit Ball Screw ST4x27 Spring Sealing Washer Bolt Sealed Cap Cam Wheel Trigger Screw M4x16 Steel Bushing... -
Page 16: Replacement Parts
Part Number Part Description Quantity 4.8 Wiring Inserted Connector Tridentate Buckle O-Buckle Tooth Type Gasket ø4.2 Replacement Parts For replacement parts and technical questions, please call Customer Service at 1-800-222-5381. Not all product components are available for replacement. The illustrations provided are a convenient reference to the location and position of parts in the assembly sequence. -
Page 17: Limited Warranty
Northern Tool and Equipment Company, Inc. ("We'' or ''Us'') warrants to the original purchaser only (''You'' or ''Your'') that the Ironton product purchased will be free from material defects in both materials and workmanship, normal wear and tear excepted, for a period of one year from date of purchase. - Page 18 Distributed by: Northern Tool & Equipment Company, Inc. Burnsville, Minnesota 55306 www.northerntool.com Made in China Page 18 of 18...
