installation
4.3

LED indications

The CanOpen Option Board includes two LED status indicators next to the connector: Fieldbus status
(M), CanOpen(A). Led N is unused.
1
2
3
4
5

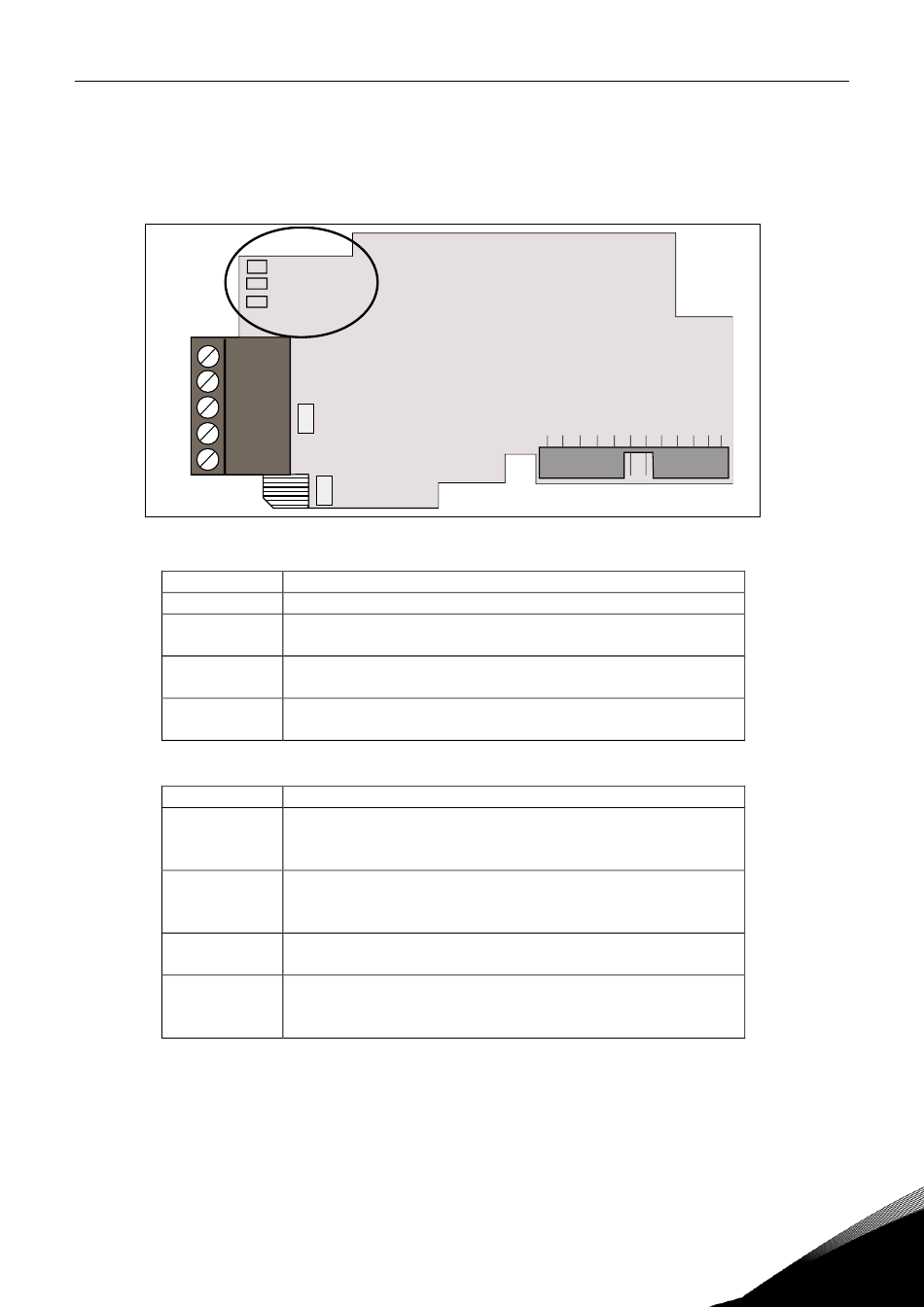

Figure 4-2. LED indications on the CANopen board
CanOpen board status LED (A) GREEN
LED is:
OFF
ON
Blinking fast
(1 blink / s)
Blinking slow
(1 blink/ 5s)
Fieldbus status LED (M) GREEN
LED is:
OFF
ON
Blinking fast
(1 blink / s)
Blinking slow
(1 blink / 5s)
24-hour support +358 (0)40 837 1150 • Email: vacon@vacon.com
Not used
N
A Green
M
Green
X6
X1
Meaning:
Option board not activated
Option board in initialisation state waiting for activation
command from the frequency converter
Option board is activated and in RUN state
Option board is ready for external communication
Option board is activated and in FAULT state
Internal fault of option board
Meaning:
Fieldbus module is waiting for parameters from the
frequency converter
No external communication
Fieldbus module is activated
Parameters received and module activated
Module is waiting for messages from the bus
Module is activated and receiving messages from the bus
Module is in FAULT state
No messages from Master within the watchdog time
Bus broken, cable loose or Master off line
Vacon • 7
