installation
4

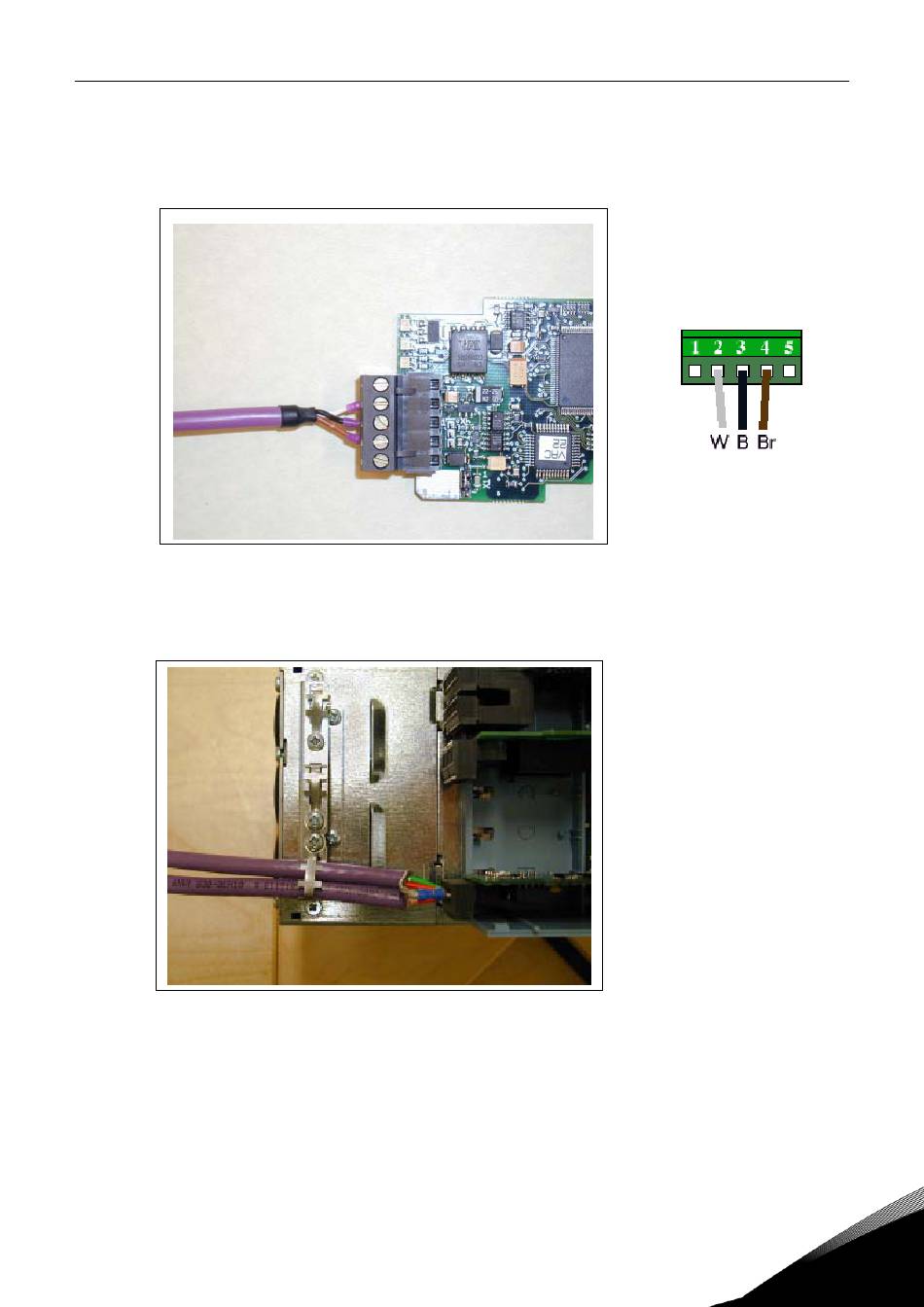

We recommend you to use an Abico connector to fit the grounding cable into the grounding
terminal (#3).
Insert the white and brown data cables of both CanOpen cables into terminals #2 (white)
and #4 (brown).
Figure 4-9.
5
Place the CanOpen board into slot E of the control board (see board installation on page 13)
and fix both the CanOpen cables on the frame with the clamp.
Figure 4-10.
24-hour support +358 (0)40 837 1150 • Email: vacon@vacon.com
Vacon • 11
