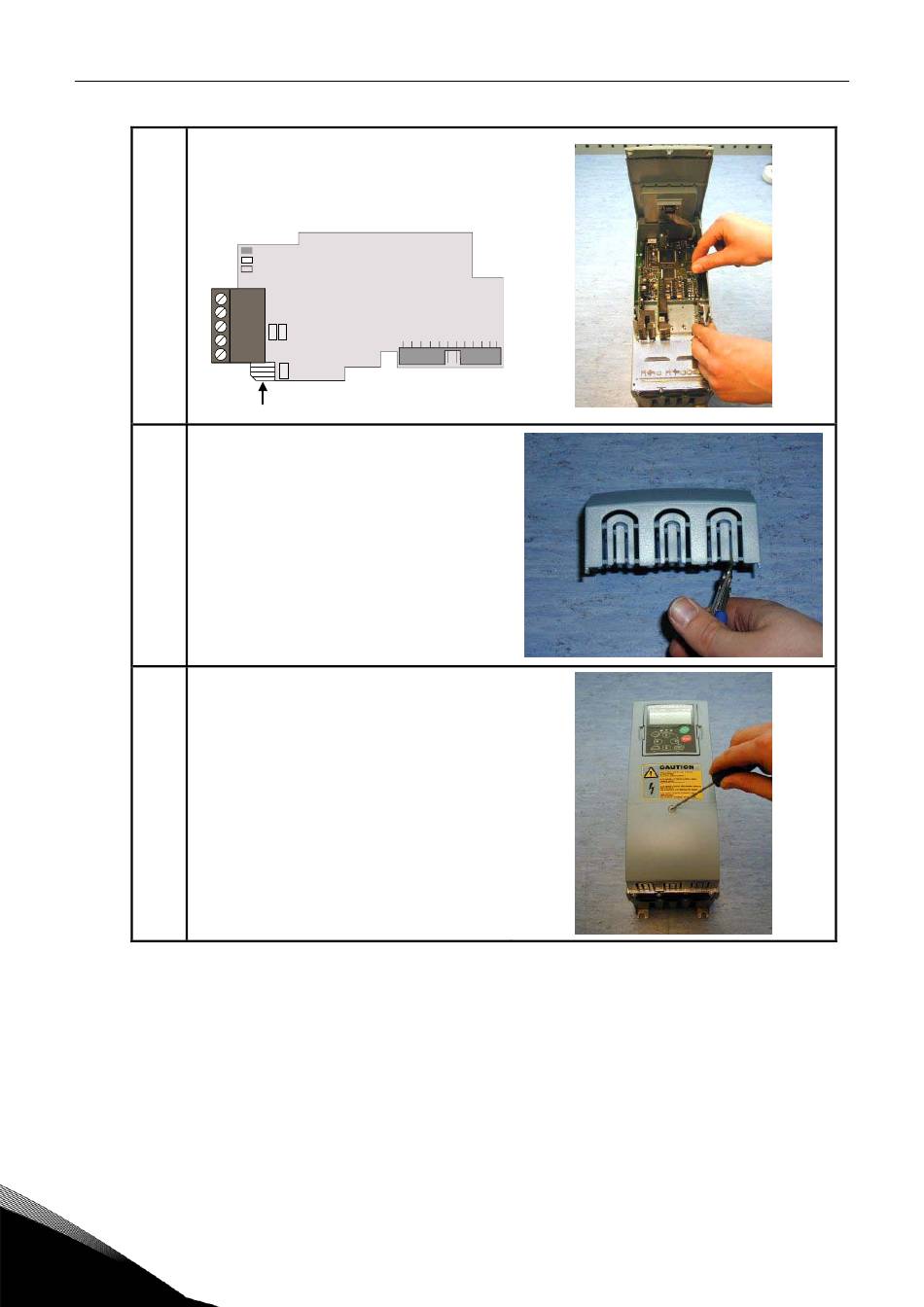

Install CanOpen option board in slot E
on the control board of the frequency
converter. Make sure that the grounding
plate (see below) fits tightly in the
clamp.
1
2
3
4
5
E
Make a sufficiently wide opening for
your cable by cutting the grid as wide as
necessary.
F
Close the cover of the control unit and
the cable cover.
