NCR 7702 K460 Kit Instructions

NCR 7702 K460 Kit Instructions

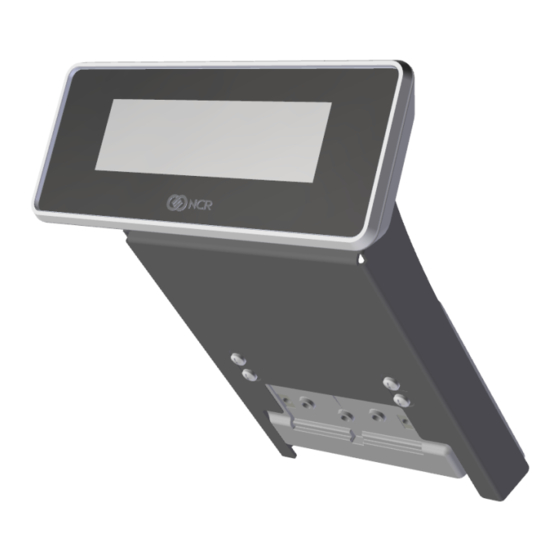

High mount 2x20 customer display

Advertisement

Quick Links

Kit Instructions
High Mount 2x20 Customer Display
7702-K460
Issue C

Advertisement

loading
Need help?

Need help?

Do you have a question about the 7702 K460 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for NCR 7702 K460

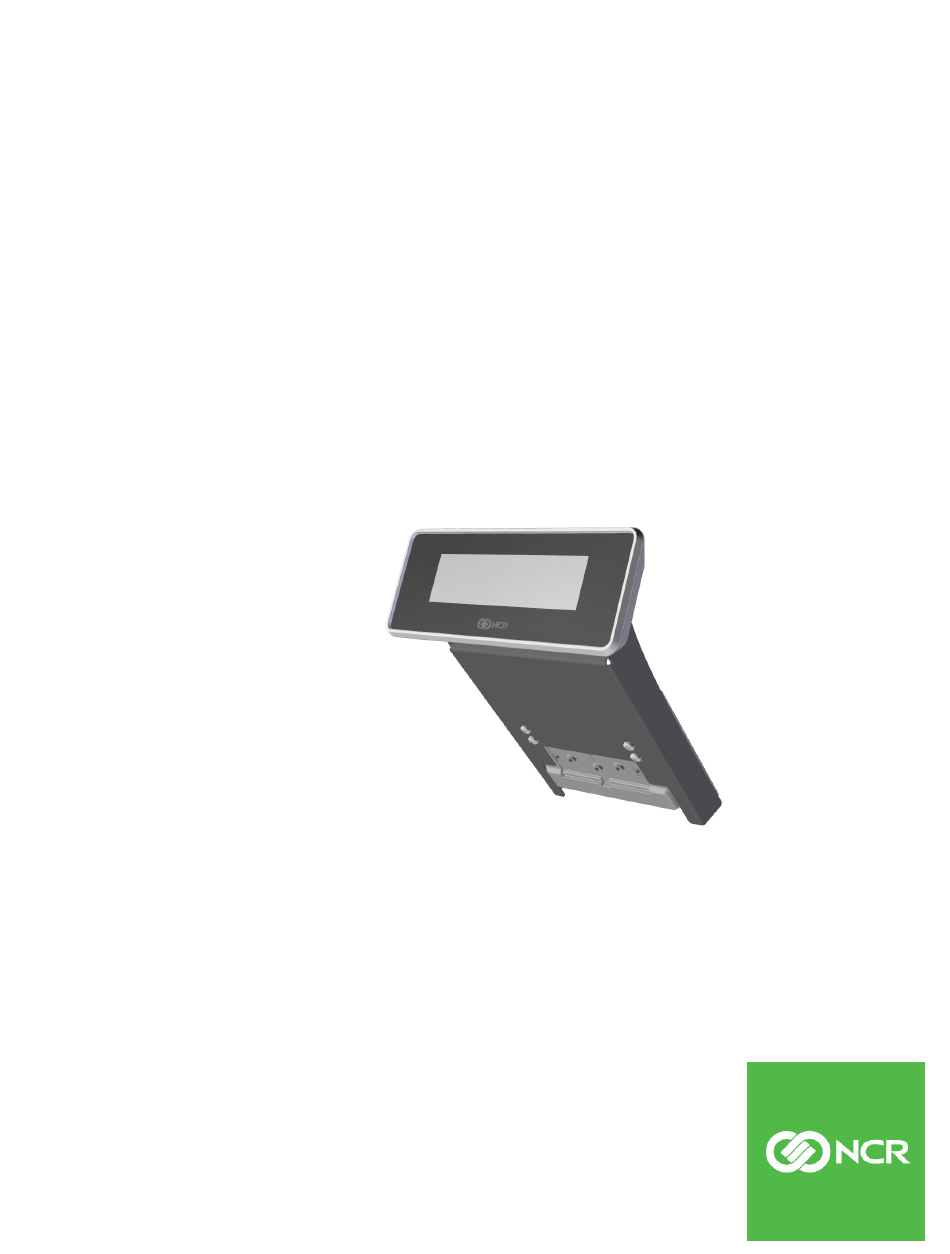

  • Page 1 Kit Instructions High Mount 2x20 Customer Display 7702-K460 Issue C...
  • Page 2: Revision Record

    NCR, therefore, reserves the right to change specifications without prior notice. All features, functions, and operations described herein may not be marketed by NCR in all parts of the world. In some instances, photographs are of equipment prototypes. Therefore, before using this document, consult with your NCR representative or NCR office for information that is applicable and current.
  • Page 3: Kit Contents

    High Mount 2x20 Customer Display This kit contains the components to add a High Mount 2x20 Customer Display to any of the following terminals: • NCR XR5 POS (7701) • NCR XR7 POS (7702) • NCR XR7 Plus POS (7703) Kit Contents...
  • Page 4: Installation Procedure

    High Mount 2x20 Customer Display Installation Procedure 1. Remove the Stand. a. Lay the terminal face down on a flat surface. Caution: Always use a soft material (cloth, foam) to protect the display screen when placing the terminal face down. b.
  • Page 5 High Mount 2x20 Customer Display 2. Remove the existing Serial Expansion Housing. a. Remove the Serial Expansion Module from the Stand (3 screws). b. Remove the four (4) screws securing the Serial Expansion Board to the Serial Expansion Housing. c. Remove the Serial Expansion Board from the Serial Expansion Housing.
  • Page 6 High Mount 2x20 Customer Display 3. Install the new Serial Expansion Housing included in the kit. a. Route the cable through the opening of the new Serial Expansion Housing (497- 0514376). b. Mount the Serial Expansion Board on the Serial Expansion Housing. Ensure the Cable Grommet is mounted on the grommet guide of the Serial Expansion Housing.
  • Page 7 High Mount 2x20 Customer Display d. Install the Serial Expansion Module to the Stand (3 screws). 4. Reinstall the Stand. a. Insert the Serial Expansion Housing Tabs into the openings in the Back Housing and rotate the Stand downward.
  • Page 8 High Mount 2x20 Customer Display b. Secure the stand to the terminal using two (2) captive screws. 5. Install the High Mount 2x20 Customer Display. a. Mount the Cable Strain Relief to the Cable Management Bracket.
  • Page 9 High Mount 2x20 Customer Display b. Connect the USB Cable to the Customer Display. Note the cable routing (Cable Management Bracket removed for clarity). c. Insert the tab on the edge of the Cable Management Bracket into the slot in the Rear Cover of the Customer Display.
  • Page 10 High Mount 2x20 Customer Display d. Pivot the Cable Management Bracket until it snaps into position. e. Route the Cable through the top opening of the Mounting Bracket.
  • Page 11 High Mount 2x20 Customer Display f. Attach the Mounting Bracket to the Customer Display using three (3) screws. g. Route the Cable as shown.
  • Page 12 High Mount 2x20 Customer Display h. Slide the Customer Display and Mounting Bracket Assembly over the Serial Expansion Housing of the terminal. Secure the Assembly to the terminal using four (4) screws. Pivot the terminal and open the cable cover.
  • Page 13 High Mount 2x20 Customer Display k. Connect the USB Cable to any available +12V USB Port on the terminal.
