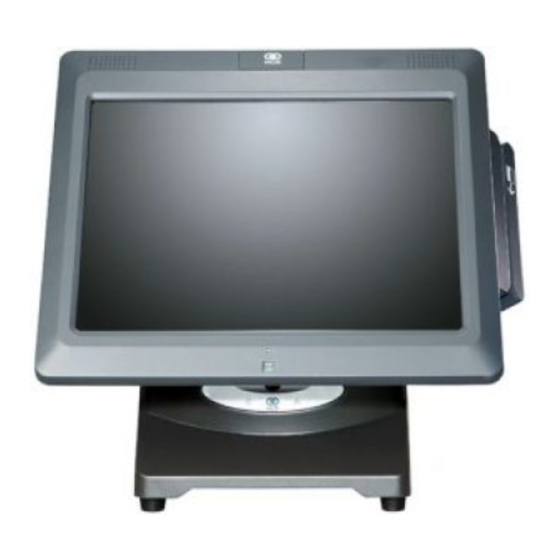

NCR 7403 K451 Kit Instructions

NCR 7403 K451 Kit Instructions

Integrated 2x20 customer display

Advertisement

Quick Links

7403‐K451
Integrated 2x20 Customer
Display
Kit Instructions

Issue A

Advertisement

loading
Need help?

Need help?

Do you have a question about the 7403 K451 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for NCR 7403 K451

  • Page 1 7403‐K451  Integrated 2x20 Customer  Display  Kit Instructions    Issue A ...
  • Page 2: Revision Record

    Revision Record Issue Date Remarks A  Nov 2008  First issue             ...
  • Page 3 Introduction This kit adds an integrated 2x20 VFD display to the 7403 terminal.  26330  ...
  • Page 4: Installation Procedures

    Installation Procedures 1. If present, remove the Signage Insert (and Signage) from the back of the 7403. The  insert has two extensions on the top and bottom that are inserted in matching slots  on the cabinet. It is very flexible so you can remove it off using your fingernail or a  sharp object.  Signage Insert 26252b  ...
  • Page 5 2. Remove the No Customer Display (2 Screws).  Note: Do not discard these screws. They are use later to secure the Customer  Display Assembly.  No Customer Display Cover 26045a   3. Remove the No Customer Display Cover Screws (2).  4. There are two hooks on the front edge that hook into the Back Cover. Slide the  cover toward the front of the terminal slightly and lift it off.  No Customer Display Cover 26149  ...
  • Page 6 5. Connect the Customer Display Cable to the RS‐232 (F) connector.  6. Install the Customer Display on the 7403 Base.  RS-232 Connector 26128   7. Secure the display with screws (2).  Customer Display Screws 26028   8. Re‐install the Information Sheet and Signage Insert in the Base Rear Cover (if  applicable).   ...
