- Page 1 KIT INSTRUCTIONS 2x20 Customer Display 7613-K450 Issue A...
- Page 2 NCR, therefore, reserves the right to change specifications without prior notice. All features, functions, and operations described herein may not be marketed by NCR in all parts of the world. In some instances, photographs are of equipment prototypes. Therefore, before using this document, consult with your NCR representative or NCR office for information that is applicable and current.
-
Page 3: Revision Record

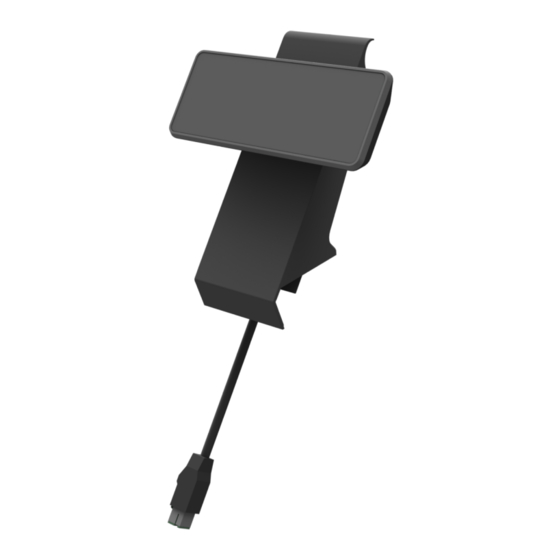

Revision Record Issue Date Remarks Feb 2017 First Issue... - Page 4 2x20 Customer Display (w/ Stand Mount Bracket and Cable) Introduction This kit provides a 2x20 Customer Display (w/ Stand Mount Bracket and Cable) for an NCR RealPOS XR3. Kit Content...
-
Page 5: Installation Procedure
7613-K450 (2x20 Customer Display) Installation Procedure 1. Route the 2x20 customer display cable through the bracket hole. Insert the bracket fingers into the strain relief. 2. Lay the 2x20 customer display face down on a flat surface. Note: Always use a soft material (cloth, foam) to protect the display screen when placing the 2x20 customer display face down. - Page 6 7613-K450 (2x20 Customer Display) 4. Insert the tab in the edge of the Cable Management Bracket in the slot in the Rear Cover and pivot the bracket as shown until it snaps into position.
- Page 7 7613-K450 (2x20 Customer Display) 5. Route the 12V Powered USB Cable through the Neck Cover. 6. Secure the 2x20 Customer Display to the Neck Cover with screws (2).
- Page 8 7613-K450 (2x20 Customer Display) 7. Route the cable through the neck, into the triangular opening, and then under the housing edge. 8. Hook the neck cover and 2x20 display assembly into the base housing.
- Page 9 7613-K450 (2x20 Customer Display) 9. Rotate the assembly to fit the neck. Snap the assembly into place. 10. Pivot the display towards the back. Secure the assembly to the neck with screw (1).
- Page 10 7613-K450 (2x20 Customer Display) 11. Lay the terminal face down on a flat surface. Note: Always use a soft material (cloth, foam) to protect the display screen when placing the display face down. 12. Connect the cable to the 12V Powered USB connector on the terminal.
