- Page 1 User Guide NCR Remote Compact Display (7825) Release 1.0 BCC5-0000-5498 Issue A...
- Page 2 NCR, therefore, reserves the right to change specifications without prior notice. All features, functions, and operations described herein may not be marketed by NCR in all parts of the world. In some instances, photographs are of equipment prototypes. Software screen images are representative, and in some cases, may not match a customer’s installed software exactly.
- Page 3 This book is written for several audiences: those preparing the site, those installing the hardware, those programming the device, and those operating the device. Notice: This document is NCR proprietary information and is not to be disclosed or reproduced without consent.
-
Page 5: Table Of Contents
Table of Contents NCR Remote Compact Display (7825) Overview Available Models Hardware Features Preparing the Site Environmental Considerations Power Requirements AC Power Requirements DC Power Requirements Dimensions Weights Cable Pinouts Installing the NCR 7825... - Page 6 Revision Record Issue Date Remarks Aug 2020 Initial release...
-
Page 7: Ncr Remote Compact Display

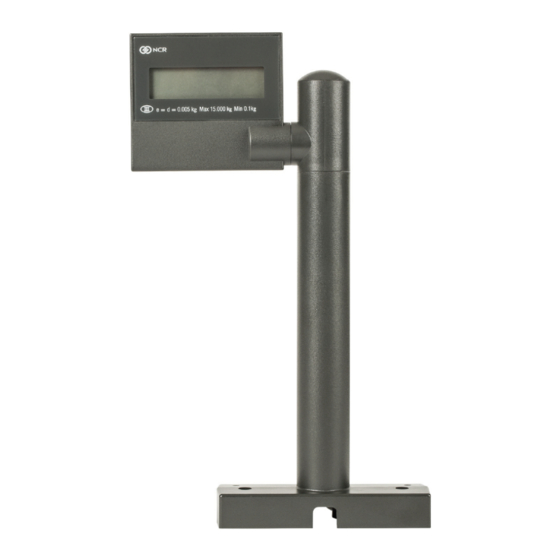

NCR Remote Compact Display (7825) Overview The NCR Remote Compact Display (7825) is used with scale units to display weight and scale status information. Its cable connects to the Scale Display connector of the scanner/scale unit. The NCR 7825 is also used to display error codes that indicate... -
Page 8: Available Models
NCR Remote Compact Display (7825) Available Models Description 7825-0537-9090 Compact Single Scale Display 30.000 lb, 13.995 kg and 15.000 kg (RoHS), 4M cable 7825-0547-9090 Compact Single Scale Display 30.000 lb, 15.000 kg (RoHS), 4M cable, 7825-0557-9090 Compact Single Scale Display 30.000 lb, 15.000 kg (RoHS), 4M cable, Black 7825-1537-9090 Compact Dual Scale Display 30.000 lb, 13.995 kg and 15.000 kg ... -
Page 9: Preparing The Site
NCR Remote Compact Display (7825) Preparing the Site This section provides the information necessary to prepare a site to NCR specifications prior to installing the NCR Remote Compact Display. The site must be properly prepared before the scanner display is installed because site preparation deficiencies may be difficult to detect and correct after installation. -
Page 10: Dimensions
NCR Remote Compact Display (7825) Dimensions The following are dimensions of the NCR Remote Compact Display. The holes are spaced to align with those of the older NCR Remote Post Display and with some competitor models. Weights The following are weights of the NCR Remote Compact Display. -
Page 11: Cable Pinouts
NCR Remote Compact Display (7825) Cable Pinouts Color Signal Name GROUND WHITE GREEN LOAD YELLOW DATA BLACK... -
Page 12: Installing The Ncr 7825
To install the NCR 7825 display, follow these steps: 1. Position the NCR 7825 on its mounting location, ensuring that the cable is properly routed and is not pinched. 2. Secure the base using two screws that are appropriate for the mounting surface.
