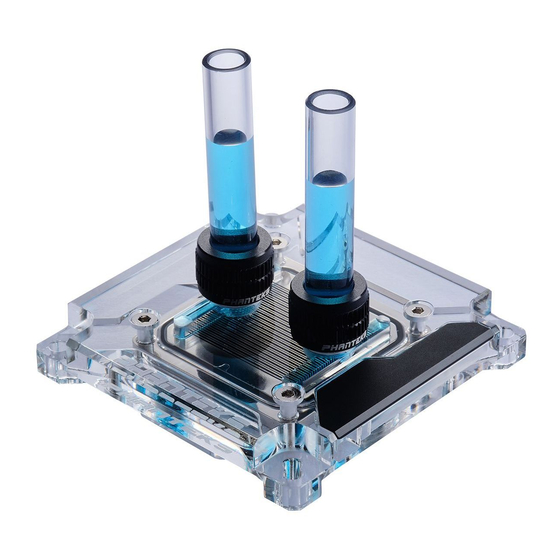

Intel cpu block

Advertisement

Quick Links

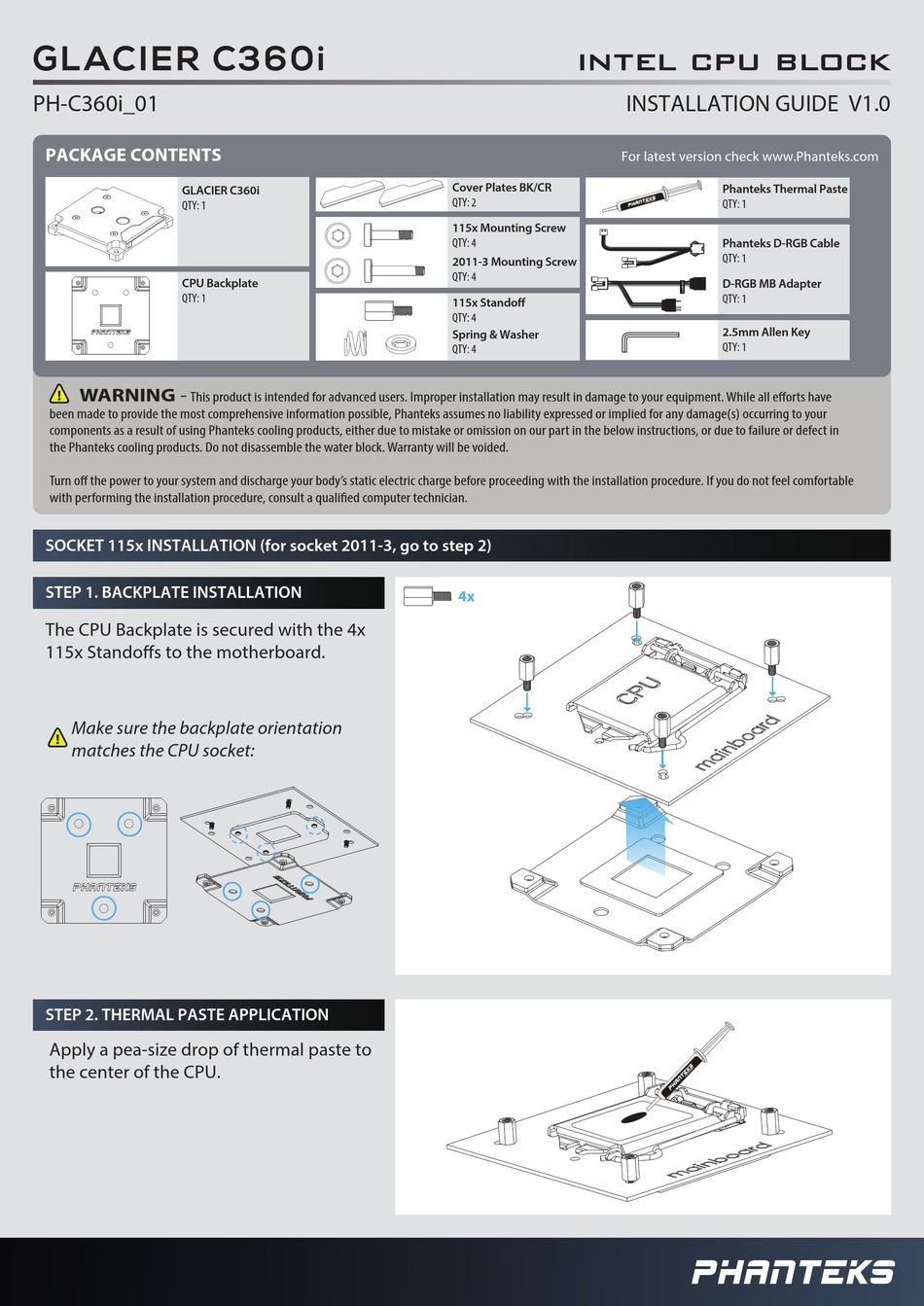

GLAC IER C360i
PH-C360i_01

PACKAGE CONTENTS

GLACIER C360i
QTY: 1
CPU Backplate
QTY: 1

WARNING -

This product is intended for advanced users. Improper installation may result in damage to your equipment. While all e orts have
been made to provide the most comprehensive information possible, Phanteks assumes no liability expressed or implied for any damage(s) occurring to your
components as a result of using Phanteks cooling products, either due to mistake or omission on our part in the below instructions, or due to failure or defect in
the Phanteks cooling products. Do not disassemble the water block. Warranty will be voided.
Turn o the power to your system and discharge your body's static electric charge before proceeding with the installation procedure. If you do not feel comfortable
with performing the installation procedure, consult a quali ed computer technician.

SOCKET 115x INSTALLATION (for socket 2011-3, go to step 2)

STEP 1. BACKPLATE INSTALLATION

The CPU Backplate is secured with the 4x
115x Stando s to the motherboard.
Make sure the backplate orientation
matches the CPU socket:

STEP 2. THERMAL PASTE APPLICATION

Apply a pea-size drop of thermal paste to
the center of the CPU.
intel cpu block
INSTALLATION GUIDE V1.0
For latest version check www.Phanteks.com
Cover Plates BK/CR
QTY: 2
115x Mounting Screw
QTY: 4
2011-3 Mounting Screw
QTY: 4
115x Stando
QTY: 4
Spring & Washer
QTY: 4
4x
Phanteks Thermal Paste
QTY: 1
Phanteks D-RGB Cable
QTY: 1
D-RGB MB Adapter
QTY: 1
2.5mm Allen Key
QTY: 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GLACIER C360i and is the answer not in the manual?

Questions and answers

Summary of Contents for Phanteks GLACIER C360i

  • Page 1 Phanteks assumes no liability expressed or implied for any damage(s) occurring to your components as a result of using Phanteks cooling products, either due to mistake or omission on our part in the below instructions, or due to failure or defect in the Phanteks cooling products.
  • Page 2 STEP 4. CONNECT D-RGB STRIP Connect the D-RGB cable to the LED strip in the block. You can lift o the magnetic cover for easy access. All Phanteks D-RGB products can be daisy-chained together. Connect to You can connect the D-RGB cable to a...
