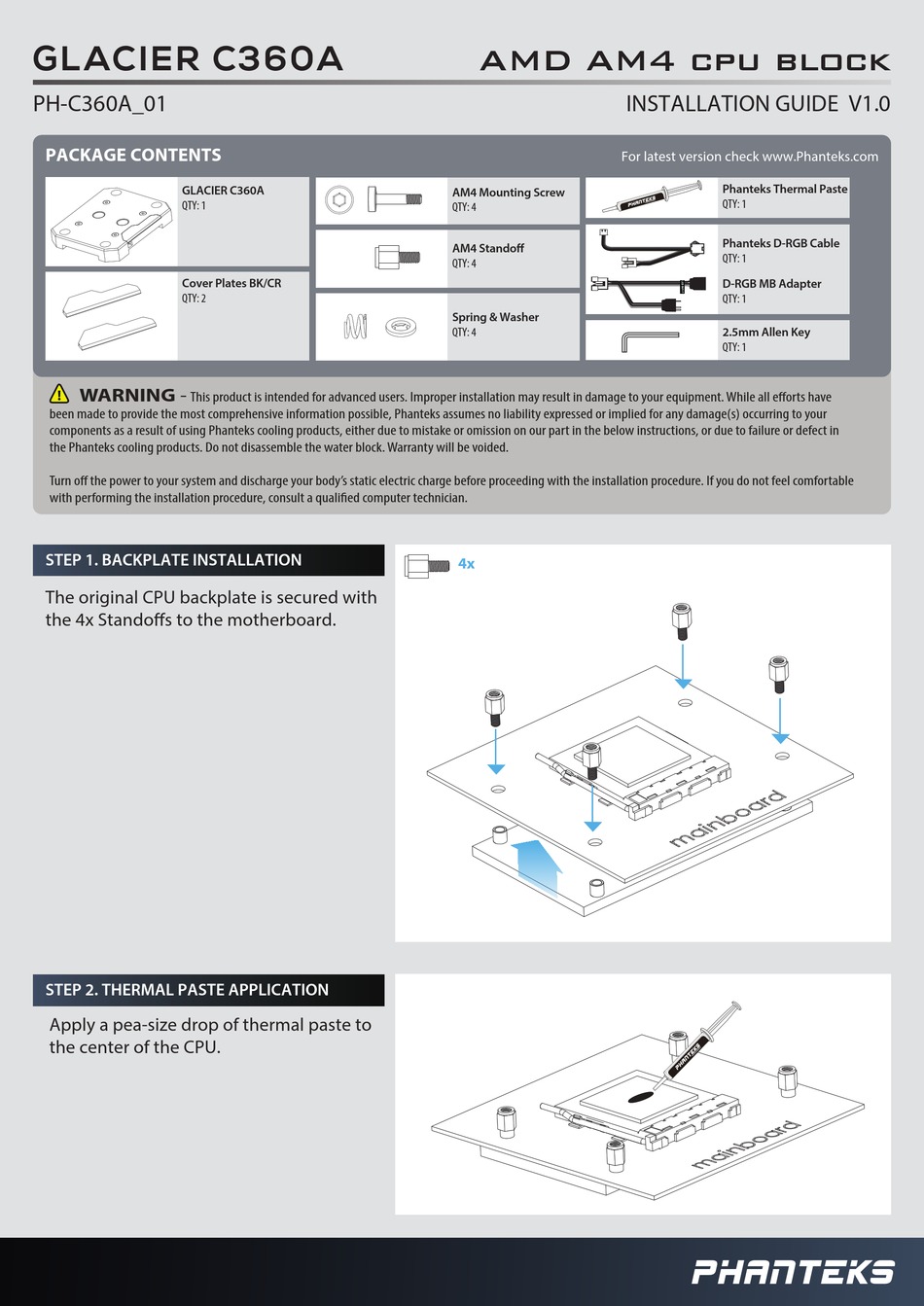

GLAC IER C360A
PH-C360A_01
PACKAGE CONTENTS

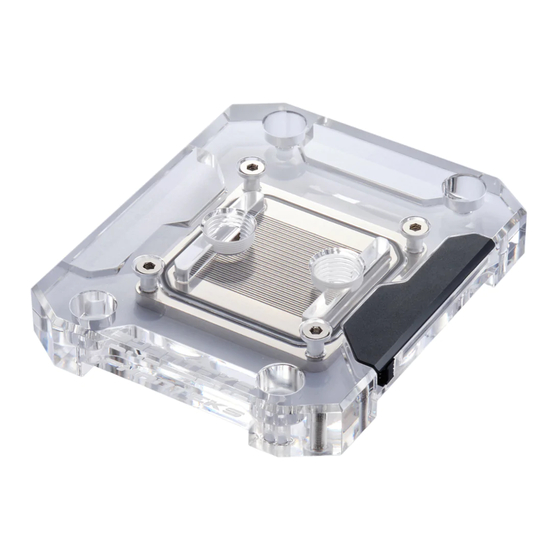

GLACIER C360A
QTY: 1
Cover Plates BK/CR
QTY: 2
WARNING -
This product is intended for advanced users. Improper installation may result in damage to your equipment. While all e orts have
been made to provide the most comprehensive information possible, Phanteks assumes no liability expressed or implied for any damage(s) occurring to your
components as a result of using Phanteks cooling products, either due to mistake or omission on our part in the below instructions, or due to failure or defect in
the Phanteks cooling products. Do not disassemble the water block. Warranty will be voided.
Turn o the power to your system and discharge your body's static electric charge before proceeding with the installation procedure. If you do not feel comfortable
with performing the installation procedure, consult a quali ed computer technician.
STEP 1. BACKPLATE INSTALLATION
The original CPU backplate is secured with
the 4x Stando s to the motherboard.
STEP 2. THERMAL PASTE APPLICATION
Apply a pea-size drop of thermal paste to
the center of the CPU.
AMD AM4 cpu block
INSTALLATION GUIDE V1.0
For latest version check www.Phanteks.com
AM4 Mounting Screw
QTY: 4
AM4 Stando
QTY: 4
Spring & Washer
QTY: 4
4x
Phanteks Thermal Paste
QTY: 1
Phanteks D-RGB Cable
QTY: 1
D-RGB MB Adapter
QTY: 1
2.5mm Allen Key
QTY: 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Phanteks GLACIER C360A
Summary of Contents for Phanteks GLACIER C360A
- Page 1 Phanteks assumes no liability expressed or implied for any damage(s) occurring to your components as a result of using Phanteks cooling products, either due to mistake or omission on our part in the below instructions, or due to failure or defect in the Phanteks cooling products.
- Page 2 STEP 5. CONNECT D-RGB STRIP Connect the D-RGB cable to the LED strip in the block. You can lift o the magnetic cover for easy access. All Phanteks D-RGB products can be daisy-chained together. You can connect the D-RGB cable to a Connect to...
