PACKAGE CONTENTS

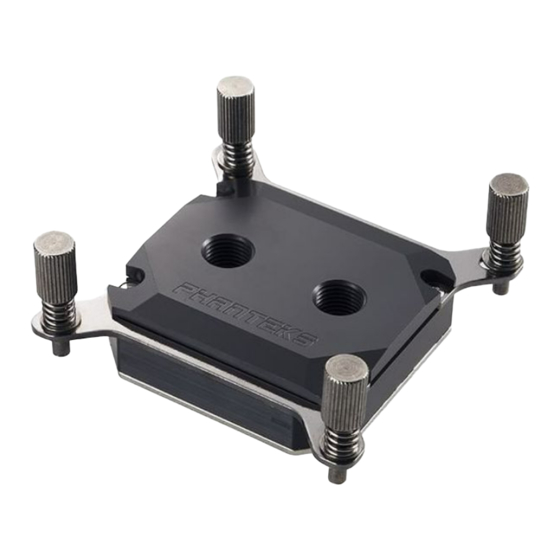

C350ip Block

DISCLAIMER

- This product is intended for advanced users.
Please consult with a quali ed technician for installation. Phanteks
assumes no liability for any damages occurring as a result of using
Phanteks cooling products.

INSTALLATION for socket 115x/1366/775,

Socket positions:
Position 1: 1366
Position 2: 115x
Position 3: 775
4x
Backplate
4x
Socket Screws for:
- 115x
- 1366
- 775
4x
Acetal Stando

WARNING

- Power down the system before installation.
- Do not disassemble the waterblock. Warranty will be voided.
- Perform a leak test before turning on the system.
- Check our website for the latest installation guide.
for socket 2011/2066 see next page.

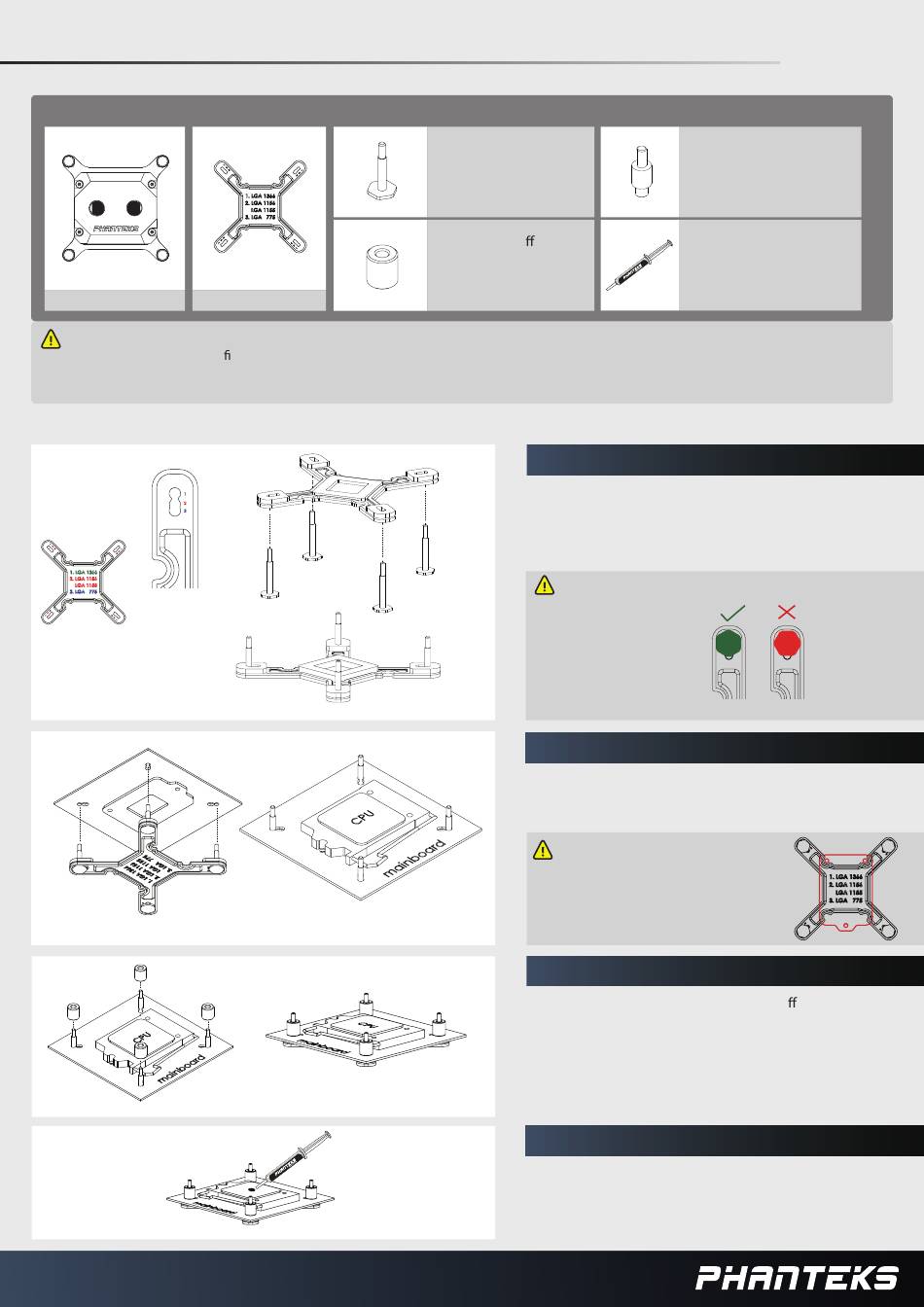

STEP 1. PREPARING THE BACKPLATE

Choose the correct position for the Socket Screws.
Insert the four (4) screws into the correct position
indicated on the backplate.
Please verify that all four scres are inserted
correctly:

STEP 2. INSTALLING THE BACKPLATE

Place the back plate on the rear side of the motherboard so
that the socket screws will stick through the socket mounting holes.
Please seee image for reference.
Make sure the orientation of the
backplate is correct:

STEP 3. INSTALLING THE ACETAL STANDOFFS

Place the four (4) included Acetal Stando s onto the
socket screws.

STEP 4. APPLYING THERMAL COMPOUND

Make sure the CPU is clean and clear of any residual
traces of thermal paste . Apply a dot (4-5mm size) of
Phanteks thermal compound on the center of the
CPU surface.
MANUAL V1.0
Socket Screws for:
- 2011-3
- 2066
Thermal Compound
(PH-NDC_01)
