Phanteks Glacier C350A Installation Manual

Phanteks Glacier C350A
PH-C350A_BK01/PH-C350A_CR01
PACKAGE CONTENTS
DISCLAIMER - This product is intended for advanced users. Please consult with a
qualified technician for installation, improper installation may result in damage to
your equipment. While all efforts have been made to provide the most comprehen-
sive information possible, Phanteks assumes no liability expressed or implied for
any damage(s) occurring to your components as a result of using Phanteks cooling
products, either due to mistake or omission on our part in the below instructions,
or due to failure or defect in the Phanteks cooling products.
FOR INSTALLATION OF AMD AM4 SOCKET

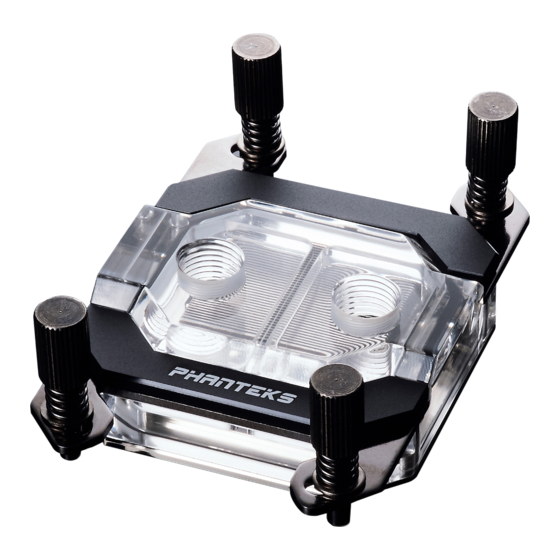

Glacier C350a
QTY: 1
RGB LED Cable
QTY: 1
Thermal Compound
(PH-NDC_01)
QTY: 1
AM4 Socket Screws
QTY: 4
AM4 Black Studs
QTY: 4 each
STEP ONE: CONNECTING THE RGB LED LIGHTING
Step 1: Plug in the connectors of the RGB LED Cable as illustrated.
After Installation: Two options to install the RGB lighting from the C350A block
A. Connect to a compatible Phanteks Case (see Phanteks.com for compatibility)
B. Connect to a compatible motherboard featuring a RGB header, using the RGB.
(see Phanteks.com for compatibility)
A. CONNECT TO COMPATIBLE PHANTEKS CASE
B. CONNECT TO COMPATIBLE MOTHERBOARD
STEP TWO: REMOVE THE ORIGINAL PLASTIC CLAMPS
Use a Philips head screwdriver to remove the four screws (in red). Remove the plastic
clamps around the socket and make sure to keep the original AMD backplate in place.
Make sure that the 4 screw threads on the backplate line up with the holes on the
motherboard.
INSTALLATION GUIDE
Phanteks Motherboard RGB Adapter
QTY: 1
RGB Y-Splitter
QTY: 1
Phanteks Manual
QTY: 1
WARNING - Turn off the power to your system and discharge your body's static
electric charge by touching a grounded surface – for example, the metal surface of
the power supply or chassis – before performing any hardware procedure. Phanteks
assumes no liability for any damage, caused directly or indirectly, by improper
installation of any components. If you do not feel comfortable with performing the
installation procedure, consult a qualified computer technician.
*Please do not disassemble the water block. Warranty will be voided.
*Always check our website for the latest installation guide.
PHANTEKS CASE
RGB LED ADAPTER
