Phanteks Glacier One D30 - Cooler Manual

INTRODUCTION

THIS MANUAL IS FOR THE FOLLOWING MODELS

Legenda

	Remove
	Install
	Loosen

Phanteks will not take responsibility for any damages incurred due to incorrect installation or usage of this product.

SCOPE OF DELIVERY

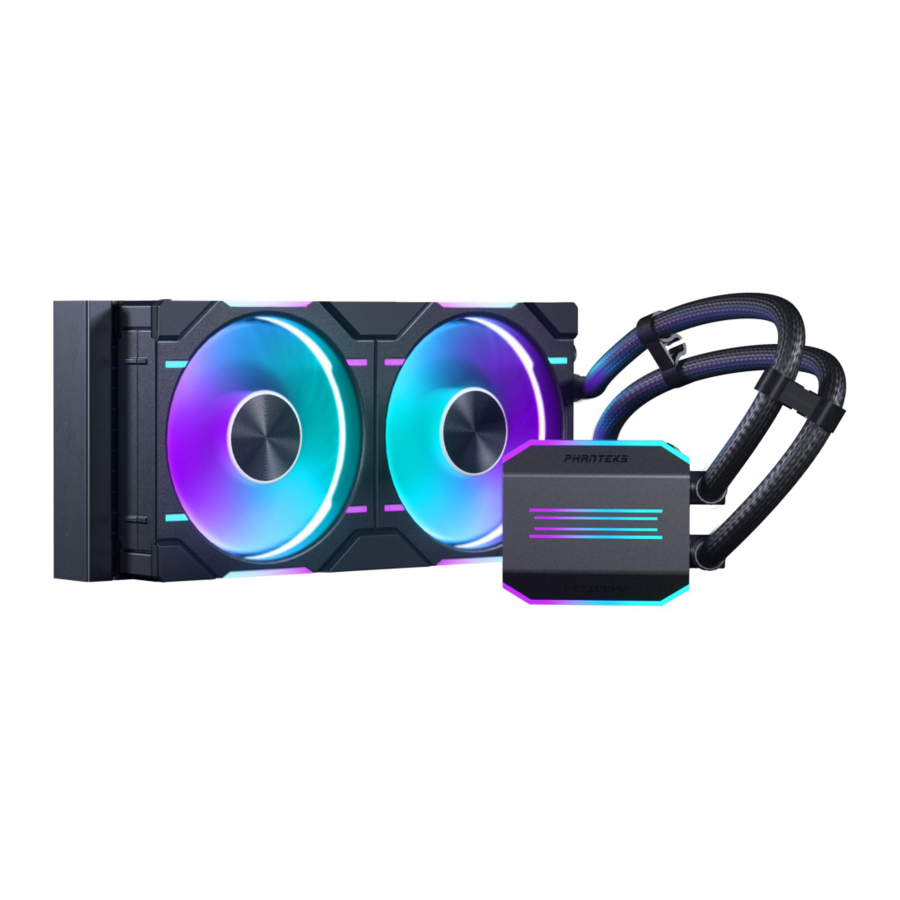

GLACIER ONE D30

ACCESSORIES

MOUNTING HARDWARE

D30 ACCESSORIES

PREPARE MOTHERBOARD

INTEL 115X | 1200 | 1700

1. Insert the backplate through the motherboard.

2. Secure the backplate with the 4x Standoffs. Make sure to use the correct socket stand-off.



ATTENTION
Check the stand-off texture to make sure you got the correct socket standoff.

INTEL 2011 | 2066

Secure the 4x Intel 2011 | 2066 Stand-offs to the motherboard.

AMD AM4 | AM5

1. Remove the stock mounting brackets.

2. Secure the 4x AM4/AM5 Stand-offs to the motherboard.

3. Remove the pre-installed Intel bracket first by sliding it off the cooling module.

4. Attach the AM4/AM5 bracket by sliding it on the cooling module.


AMD TR4

1. Silver Color Secure the 4x TR4 Stand-offs to the motherboard.

2. Remove the pre-installed Intel bracket first by sliding it off the cooling module.

3. For the AMD TR4 socket, slide the bracket on the cooling module.


INSTALLING THE CPU BLOCK

Secure the CPU block to the stand-offs on the motherboard with the 4x thumb nuts.

PRO TIP
The thermal compound is pre-applied. More thermal compound is included for future installations.

PREPARE THE FANS

ATTENTION
Make sure to read and follow all the steps in the D30-120 manual for correct installation.

CHASSIS INSTALLATION

1. Use the 30mm radiator screws to mount fans to the radiator and the 6mm screws to to mount the radiator directly to the chassis.

2. Use the 35mm radiator screws to mount the fan to the radiator and chassis.


CABLE INSTALLATION

CONNECT PUMP CABLE

Connect the pump cable to an available 3 or 4-pin header on the motherboard (pump header if available). Alternatively, you can use the included Sata to pump adapter to power the pump directly from the PSU.

INSTALL TUBE CLIPS

PRO TIP
Fan cables can be routed through the middle of the Tube Clips.

Install the (3x) included Tube Clips for a tidy tube routing. Simply snap the clips on the tubes.

CONNECT D-RGB

The D-RGB pump and fan lighting need a controller to function. Connect to an ARGB- equipped motherboard with the included D-RGB Motherboard adapter or use a Phanteks D-RGB Controller. Phanteks D-RGB Controller is sold separately (PH- CTHUB_DRGB_01)

D-RGB CONTROL

*Follow motherboard manual for instructions on D-RGB control

D-RGB EXPANSION

Phanteks D-RGB Controller
D-RGB FAN Connect to the D-RGB Controller with JST connector.

Expand with more D-RGB products
Daisy-chain Phanteks D-RGB products together with the JST-Connector.
