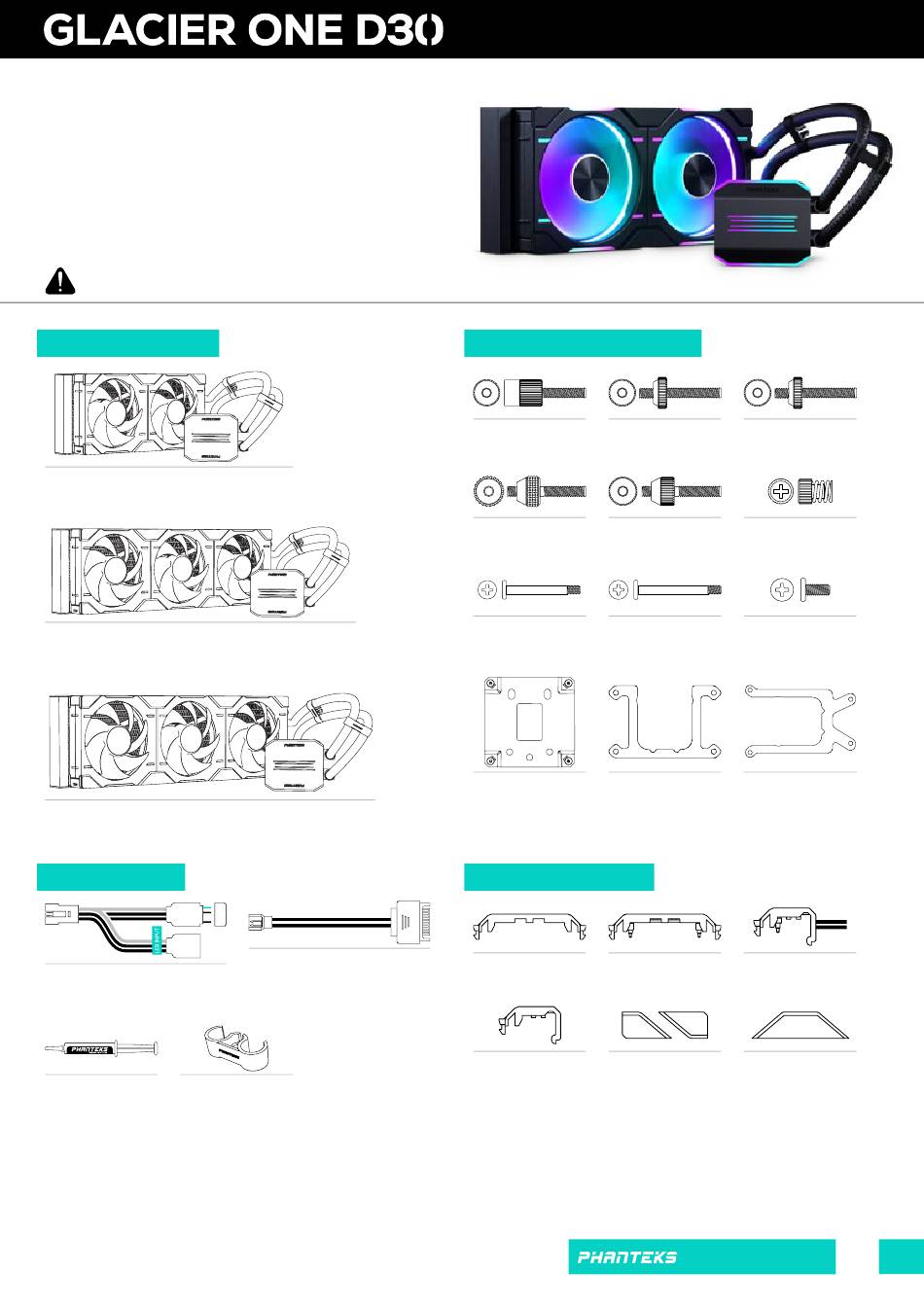

INSTRUCTIONS
Thank you for choosing Phanteks. Please take a moment to
carefully go through the manual. This manual will walk you
through all the installation steps of the Glacier One D30.
This manual is for the following models:
GLACIER ONE 240 D30
GLACIER ONE 360 D30
GLACIER ONE 420 D30
Phanteks will not take responsibility for any damages incurred due to
incorrect installation or usage of this product.
GLACIER ONE D30
GLACIER ONE D30-240
1x 240 Radiator
2x D30-120mm Fans
GLACIER ONE D30-360
1x 360 Radiator
3x D30-120mm Fans
GLACIER ONE D30-420
1x 420 Radiator
3x D30-140mm Fans
ACCESSORIES
3-PIN D-RGB MOTHERBOARD
ADAPTER
1x 600mm
PH-NDC THERMAL
TUBE CLIPS
COMPOUND
3x
1x
SATA TO 2-PIN PUMP ADAPTER
1x
MOUNTING HARDWARE
AM4 | AM5 STAND-OFF
TR4 STAND-OFF
(360 MODELS ONLY)
4x
4x
INTEL 1700 STAND-OFF
INTEL 115X | 1200
STAND-OFF
4x
4x
33mm RADIATOR
35mm RADIATOR
SCREWS
SCREWS
8x | 12x 6-32 UNC
8x | 12x 6-32 UNC
INTEL 115X | 1200 | 1700
AMD AM4 | AM5
BACKPLATE
BRACKET
(INTEL BRACKET IS PRE-INSTALLED)
1X
1X
D30 ACCESSORIES
BRIDGE CLIP
BRIDGE CLIP
CONNECTOR
1x | 2x
1x | 2x
CORNER CLIP
SCREW COVER CORNER
3x
2x each
INSTALLATION GUIDE
VERSION 1.0
SILVER COLOR
DARK COLOR
INTEL 2011 | 2066
STAND-OFF
4x
THUMB NUTS
4x
6mm RADIATOR
SCREWS
8x | 12x 6-32 UNC
AMD TR4 BRACKET
(360 & 420 MODELS ONLY)
1X
CORNER CLIP CABLE
1x
SCREW COVER BRIDGE
2x | 4x
01
