Features:
12/24 VDC Operation
Vertical adjustable deadbolt opening, sliding
shim keeper, and deadlatch ramp
accommodates a wide range of lock types
Accommodates deadbolts up to 1"
Field selectable for fail-safe or fail-secure
Includes 5 different stainless-steel faceplates
Includes trim plate to hide gaps in installation
Reversible non-handed design fits either
right-hand or left-handed doors
Indoor Use Only

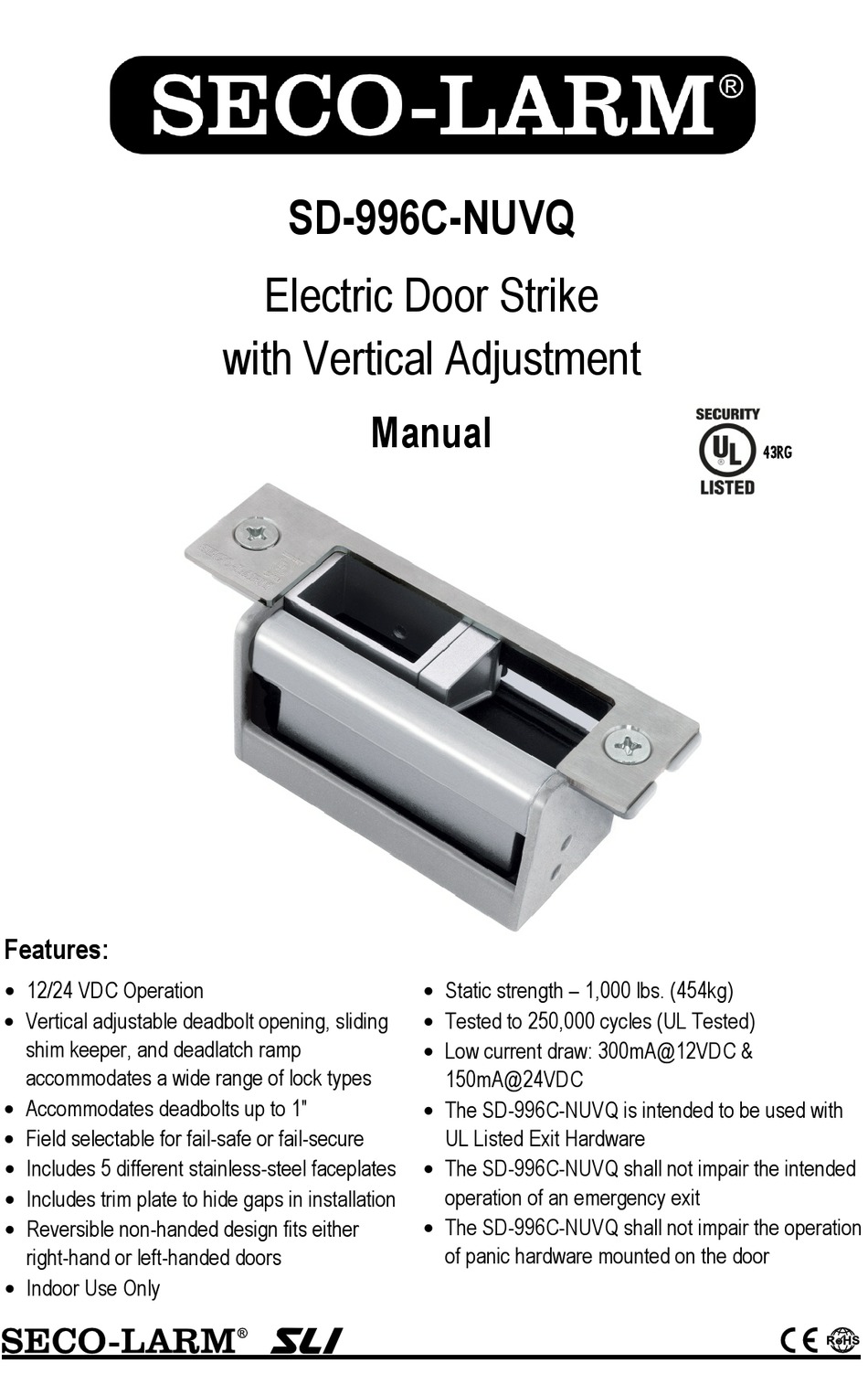

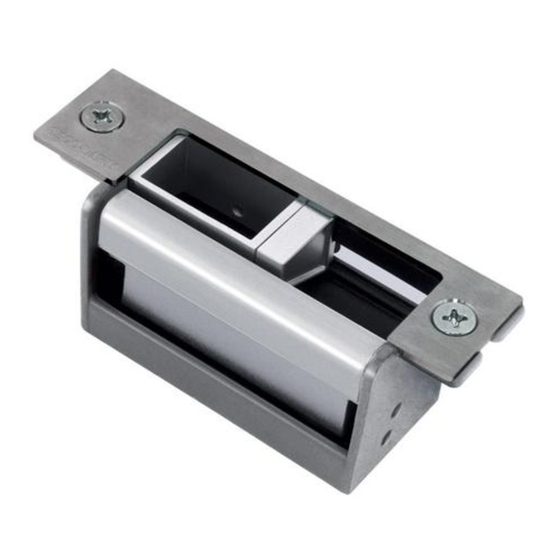

SD-996C-NUVQ
Electric Door Strike
with Vertical Adjustment
Manual
Static strength – 1,000 lbs. (454kg)
Tested to 250,000 cycles (UL Tested)
Low current draw: 300mA@12VDC &
150mA@24VDC
The SD-996C-NUVQ is intended to be used with
UL Listed Exit Hardware
The SD-996C-NUVQ shall not impair the intended
operation of an emergency exit
The SD-996C-NUVQ shall not impair the operation
of panic hardware mounted on the door
43RG
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SECO-LARM SD-996C-NUVQ
Summary of Contents for SECO-LARM SD-996C-NUVQ
- Page 1 150mA@24VDC Accommodates deadbolts up to 1" The SD-996C-NUVQ is intended to be used with Field selectable for fail-safe or fail-secure UL Listed Exit Hardware Includes 5 different stainless-steel faceplates ...
- Page 2 SECO-LARM Electric Door Strike with Vertical Adjustment Introduction: The SECO-LARM SD-996C-NUVQ Electric Door Strike with Vertical Adjustment is compatible with a wide range of lock types including cylindrical, mortise, and mortise exit devices and can be configured for use in wood, aluminum, or metal doors. Included are various ANSI-sized faceplates that can be easily installed on the strike to match the door lock type and the strike is easily field-configurable for fail-safe or fail-secure applications.
- Page 3 SECO-LARM Electric Door Strike with Vertical Adjustment Measuring the Latch Line & Center Lines: 1. Measure the center line of the door. This is shown on the diagram to the left. " " 2. Measure the distance from the door latch to the Center edge of the door frame.
- Page 4 SECO-LARM Electric Door Strike with Vertical Adjustment Preparing the Door Frame: Using the stick-on template as a guide: 1. Drill holes for mounting the strike, and cut a hole for the face-plate size being used. It is recommended to cut the hole slightly smaller than necessary.
- Page 5 SECO-LARM Electric Door Strike with Vertical Adjustment Sample Installations: Note: If it is necessary to cut a hole in the frame, mounting tabs may be required to strengthen the installation. See pg. 4. Dead-bolt Latch Installation For installation of SD-996SS-11D1Q and SD-996SS-11D2Q faceplates with the mounting tabs shown in "Mounting the Strike Using Mounting Tabs,"...
- Page 6 SECO-LARM Electric Door Strike with Vertical Adjustment Installing the Crimp Connectors: Crimp Crimp connectors are provided to make wiring Connector connections easier and more reliable. To install the connectors: 1. Insert the wires into the connector (see "12/24 VDC Wiring Diagram," page 6).
- Page 7 SECO-LARM Electric Door Strike with Vertical Adjustment Strike Adjustment: Adjusting Deadbolt Keeper: Deadbolt Keeper 1. Extend the deadbolt while moving the door closer to the strike, allowing the two to touch. 2. Mark deadbolt limit lines on the strike Down keeper.
- Page 8 LIMITED WARRANTY: This SECO-LARM product is warranted against defects in material and workmanship while used in normal service for three (3) years from the date of sale to the original customer. SECO-LARM’s obligation is limited to the repair or replacement of any defective part if the unit is returned, transportation prepaid, to SECO-LARM. This Warranty is...
