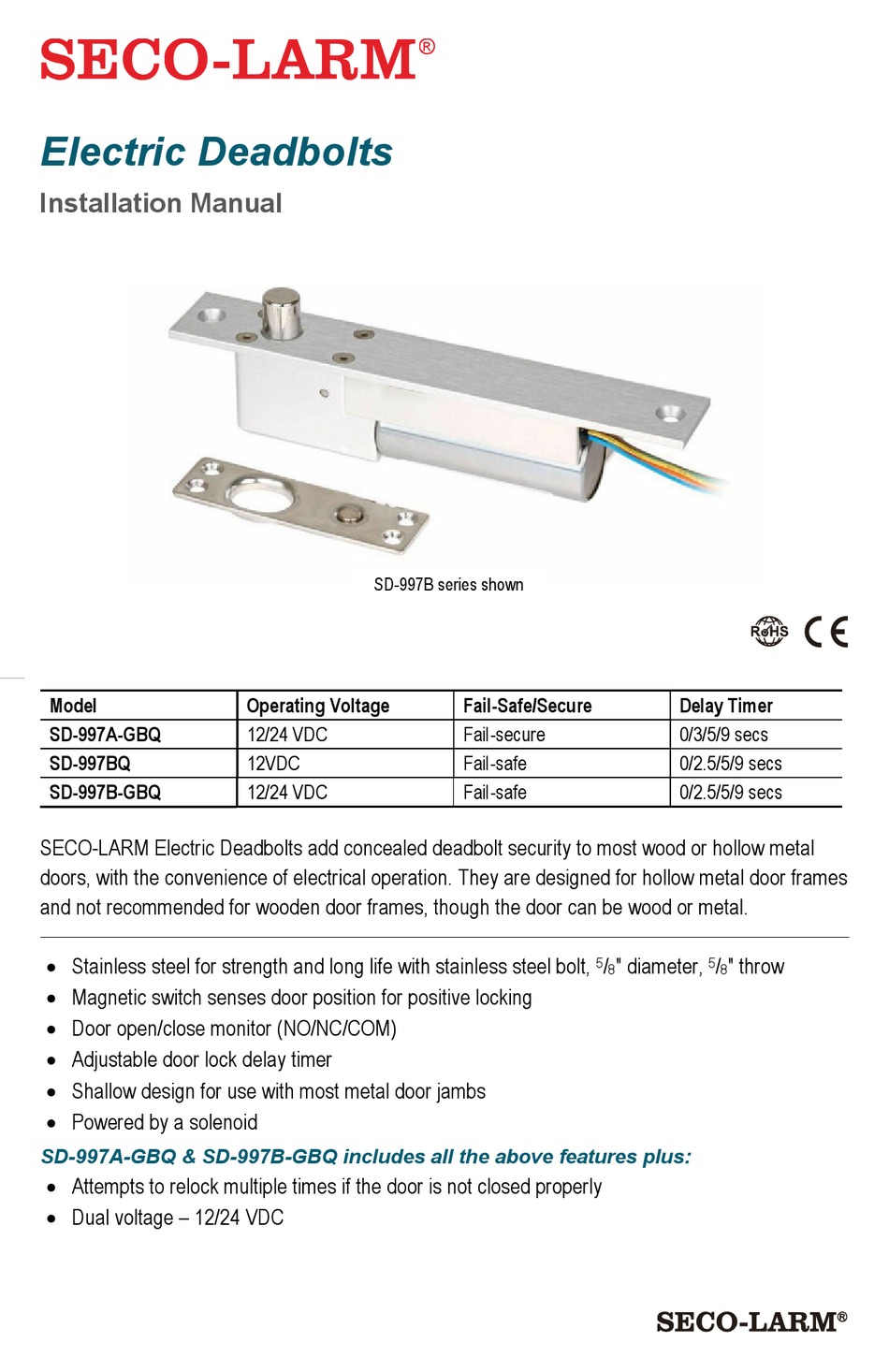

Electric Deadbolts
Installation Manual
Model
SD-997A-GBQ
SD-997BQ
SD-997B-GBQ
SECO-LARM Electric Deadbolts add concealed deadbolt security to most wood or hollow metal
doors, with the convenience of electrical operation. They are designed for hollow metal door frames
and not recommended for wooden door frames, though the door can be wood or metal.
Stainless steel for strength and long life with stainless steel bolt,
Magnetic switch senses door position for positive locking
Door open/close monitor (NO/NC/COM)
Adjustable door lock delay timer
Shallow design for use with most metal door jambs
Powered by a solenoid
SD-997A-GBQ & SD-997B-GBQ includes all the above features plus:
Attempts to relock multiple times if the door is not closed properly
Dual voltage – 12/24 VDC

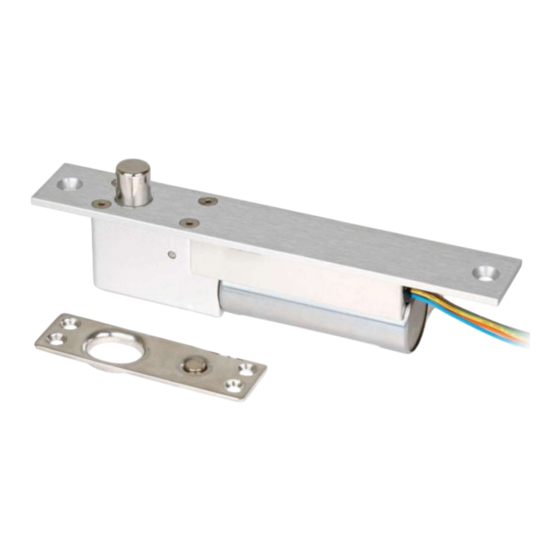

SD-997B series shown
Operating Voltage
12/24 VDC
12VDC
12/24 VDC
Fail-Safe/Secure
Fail-secure
Fail-safe
Fail-safe
/
" diameter,
5
8
Delay Timer
0/3/5/9 secs
0/2.5/5/9 secs
0/2.5/5/9 secs
/
" throw
5
8
Advertisement
Table of Contents
Related Manuals for SECO-LARM SD-997A-GBQ
Summary of Contents for SECO-LARM SD-997A-GBQ
- Page 1 Fail-safe 0/2.5/5/9 secs SECO-LARM Electric Deadbolts add concealed deadbolt security to most wood or hollow metal doors, with the convenience of electrical operation. They are designed for hollow metal door frames and not recommended for wooden door frames, though the door can be wood or metal.
- Page 2 SECO-LARM Electric Deadbolts Parts List 1x Electric deadbolt 2x Mounting tabs (small) Strike plate 4x Templates 1x Manual 1x 6-Pin connector* 2x Mounting tabs (large) 1Pkg Mounting screws 1x Faceplate 3x Keys † 1x 3-Pin connector* 1x Manual lock cylinder Oval cylinder plate †...
- Page 3 9. Carefully push the wires into the door frame and insert the lock body, taking care not to crimp any wires. Insert the manual lock cylinder for SD-997A-GBQ (see Manual Lock/Unlock Cylinder, pg. 4). Remove the faceplate's vinyl covering and place the faceplate over the face of the lock body. Screw the faceplate and lock body to the mounting tabs.
- Page 4 SECO-LARM’s obligation is limited to the repair or replacement of any defective part if the unit is returned, transportation prepaid, to SECO-LARM. This Warranty is void if damage is caused by or attributed to acts of God, physical or electrical misuse or abuse, neglect, repair or alteration, improper or abnormal usage, or faulty installation, or if for any other reason SECO-LARM determines that such equipment is not operating properly as a result of causes other than defects in material and workmanship.
