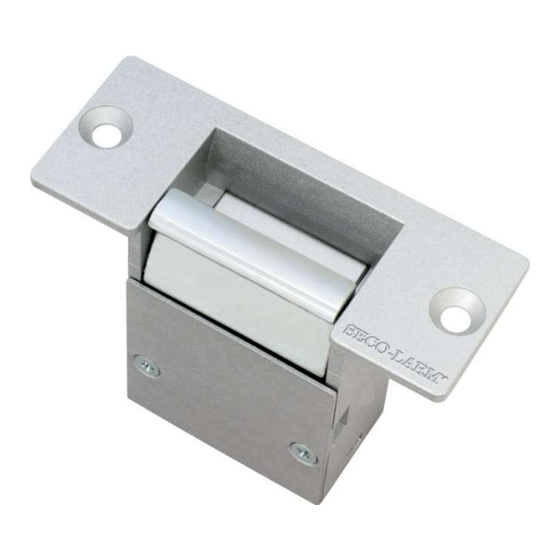

SECO-LARM SD-995A-D3Q Manual

Weatherproof door/gate strike

Features:

 Unique design accommodates both wood and

metal doors

 Fail-secure operation

 Reversible for right or left-handed doors

 Zinc alloy body

 Corrosion-resistant case and moving parts

 Complete mounting hardware included

SD-995A-D3Q

Weatherproof Door/Gate Strike

Manual

 Operating voltage: 12~24 VAC/VDC

 1,034-lb (470kg) Holding force

 Tested to 250,000 cycles

 Current draw: 500mA@12VDC,

 Strike depth:

 Faceplate size: 3

(89x35x3 mm)

1A@24VDC

" (15mm)

"x1

Table of Contents

Do you have a question about the SD-995A-D3Q and is the answer not in the manual?

Page 1 SD-995A-D3Q Weatherproof Door/Gate Strike Manual Features:  Unique design accommodates both wood and  Operating voltage: 12~24 VAC/VDC  1,034-lb (470kg) Holding force metal doors  Fail-secure operation  Tested to 250,000 cycles  Reversible for right or left-handed doors ...
Page 2 SECO-LARM ® Weatherproof Door/Gate Strike Specifications: Model SD-995A-D3Q Operation Fail-secure Operating voltage 12~24 VAC/VDC Current draw 500mA@12VDC, 1A@24VDC Design Reversible non-handed Max. latch throw " (15mm) Keeper width " (41mm) Strike depth " (15mm) Holding force 1,034-lb (470kg) IP Rating...
Page 3 SECO-LARM ® Weatherproof Door/Gate Strike Installation: Door jamb Measure the latch line (see fig. 1). Measure the distance between the face of Latch line Door latch the door jamb and the face of the door latch. This is the vertical latch distance.
Page 4 WARRANTY: This SECO-LARM product is warranted against defects in material and workmanship while used in normal service for three (3) year from the date of sale to the original customer. SECO-LARM’s obligation is limited to the repair or replacement of any defective part if the unit is returned, transportation prepaid, to SECO-LARM. This Warranty is void if...
