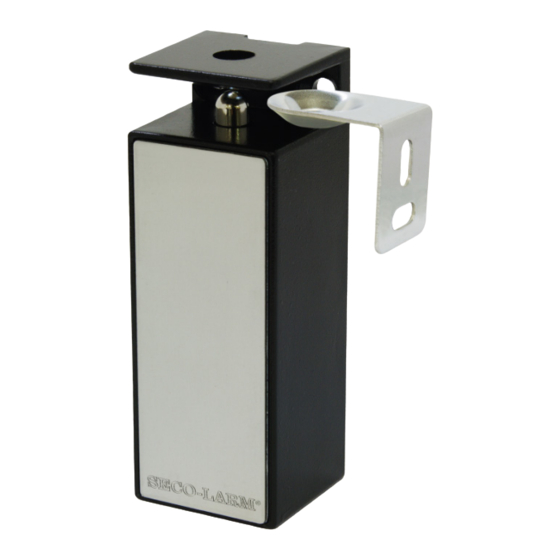

Electric deadbolt cabinet lock

Advertisement

Quick Links

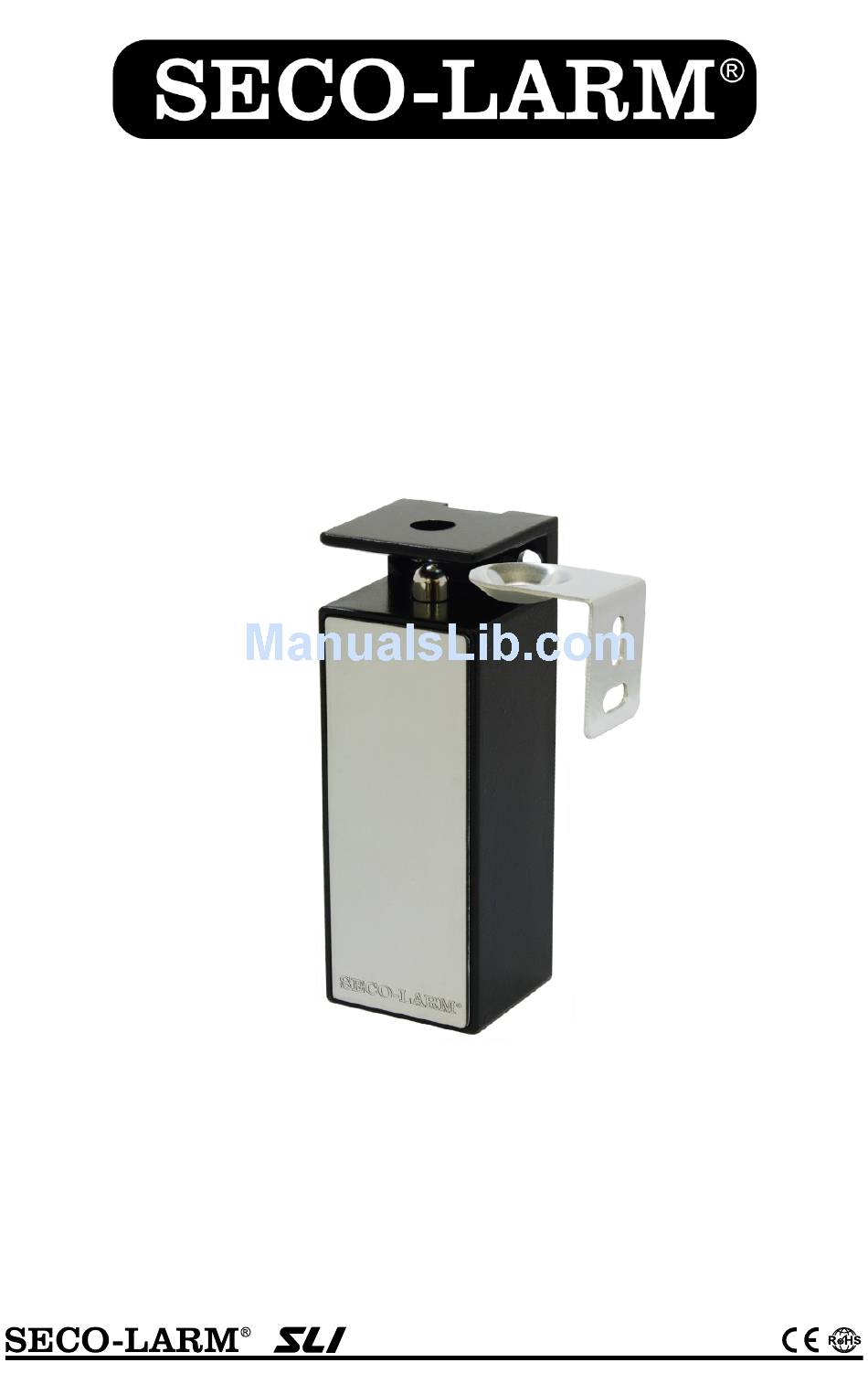

Electric Deadbolt Cabinet Lock
Features:
• Electronically secure lockers, cabinets,
cases, and drawers
• Lock status sensor allows for monitoring
whether doors or drawers are locked
• Selectable fail-safe/fail-secure operation
SD-997C-GCQ
Manual
• Operating voltage: 12/24 VDC
• Current draw: 300mA@12VDC,
• Mounting hardware included
150mA@24VDC

Advertisement

loading
Need help?

Need help?

Do you have a question about the SD-997C-GCQ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SECO-LARM SD-997C-GCQ

  • Page 1 SD-997C-GCQ Electric Deadbolt Cabinet Lock Manual Features: • Electronically secure lockers, cabinets, • Operating voltage: 12/24 VDC cases, and drawers • Current draw: 300mA@12VDC, • Lock status sensor allows for monitoring 150mA@24VDC whether doors or drawers are locked • Mounting hardware included...
  • Page 2 SECO-LARM Electric Deadbolt Cabinet Lock Introduction: The SECO-LARM Electric Deadbolt Cabinet Lock contains on-site reversible fail-safe/fail- secure operation and dual voltage settings, allowing for secure installation for lockers, cabinets, cases and drawers. The built-in lock status sensor allow for monitoring whether the cabinet doors are locked.
  • Page 3 SECO-LARM Electric Deadbolt Cabinet Lock Selecting Fail-safe/Fail-secure Operation: 1. Remove the 2 holding screws from the back of the lock body (fig.1). 2. Remove the lock body and the wires from the solenoid. 3. Reverse the solenoid direction (fig.2) to either match the proper fail-safe (fig.3) or fail-secure position (fig.4).
  • Page 4 This SECO-LARM product is warranted against defects in material and workmanship while used in normal service for one (1) year from the date of sale to the original customer. SECO-LARM’s obligation is limited to the repair or replacement of any defective part if the unit is returned, transportation prepaid, to SECO-LARM. This Warranty...
