SECO-LARM SD-995C-D3Q Manual

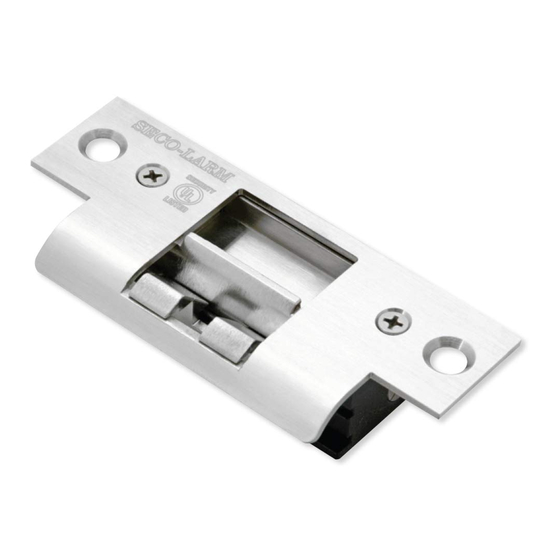

No-cut door strike

Download this manual

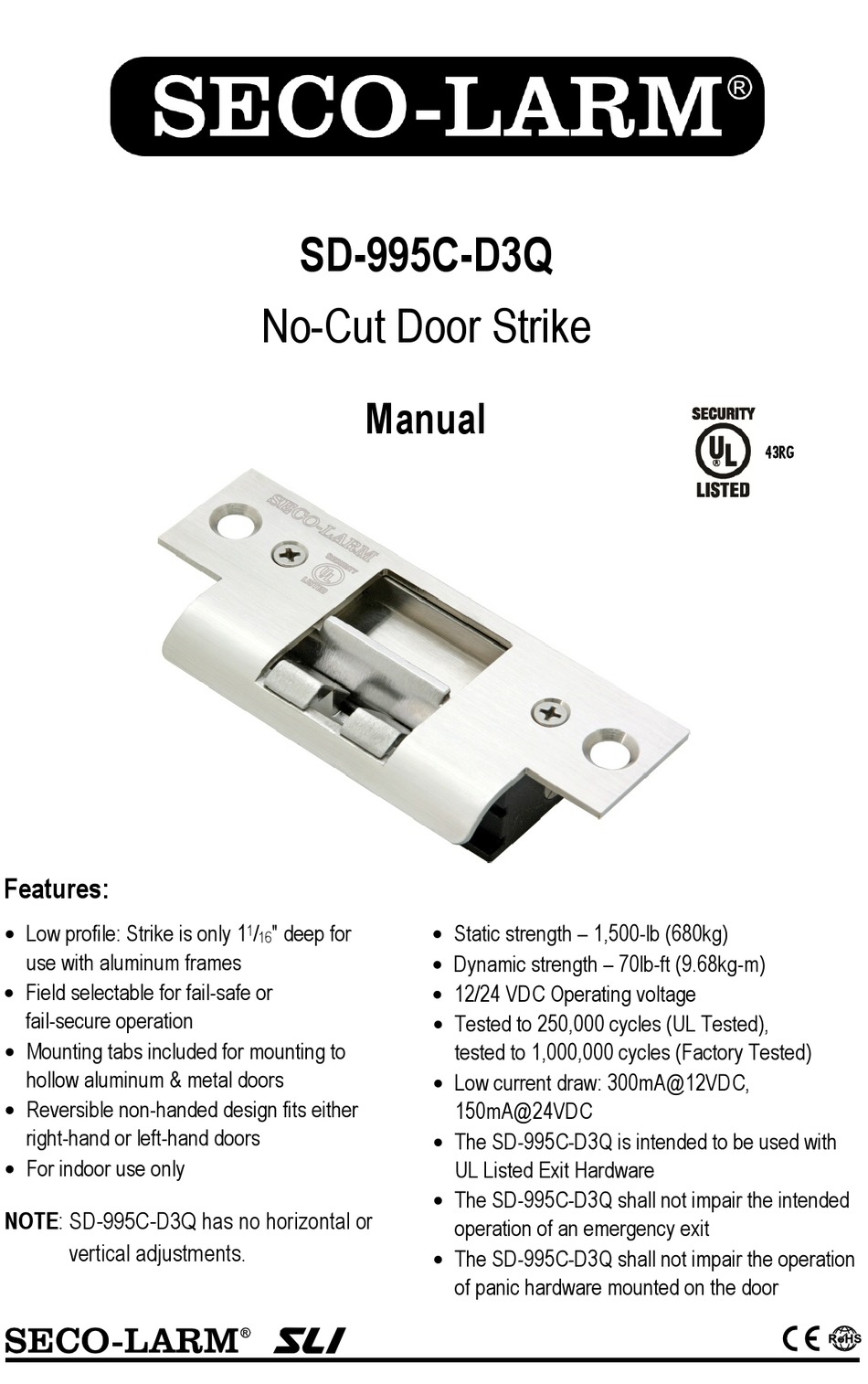

Features:

 Low profile: Strike is only 1

use with aluminum frames

 Field selectable for fail-safe or

fail-secure operation

 Mounting tabs included for mounting to

hollow aluminum & metal doors

 Reversible non-handed design fits either

right-hand or left-hand doors

 For indoor use only

NOTE: SD-995C-D3Q has no horizontal or

vertical adjustments.

SD-995C-D3Q

No-Cut Door Strike

Manual

" deep for

 Static strength – 1,500-lb (680kg)

 Dynamic strength – 70lb-ft (9.68kg-m)

 12/24 VDC Operating voltage

 Tested to 250,000 cycles (UL Tested),

tested to 1,000,000 cycles (Factory Tested)

 Low current draw: 300mA@12VDC,

150mA@24VDC

 The SD-995C-D3Q is intended to be used with

UL Listed Exit Hardware

 The SD-995C-D3Q shall not impair the intended

operation of an emergency exit

 The SD-995C-D3Q shall not impair the operation

of panic hardware mounted on the door

43RG

Need help?

Do you have a question about the SD-995C-D3Q and is the answer not in the manual?

Page 1  Low current draw: 300mA@12VDC,  Reversible non-handed design fits either 150mA@24VDC right-hand or left-hand doors  The SD-995C-D3Q is intended to be used with  For indoor use only UL Listed Exit Hardware  The SD-995C-D3Q shall not impair the intended...
Page 2 SECO-LARM No-Cut Door Strike Specifications: Model SD-995C-D3Q Operating voltage 12/24 VDC 12VDC 300mA Current draw 24VDC 150mA Latch throw " (15mm) Keeper width " (36mm) Static strength 1,500-lb (680kg) Dynamic strength 70lb-ft (9.68kg-m) Endurance 250,000 cycles (UL Tested), 1,000,000 cycles (Factory Tested) Operating temperature 32°~120°...
Page 3 Fig.4 mounting tabs. Adjust as needed to ensure the door closes smoothly (see Fig. 5). 7. Connect to power. See "Wiring Diagram," pg. 4. NOTE: SD-995C-D3Q has no horizontal or vertical adjustments. Fig.5 Wiring Diagram: For 12VDC operation:...
Page 4 This SECO-LARM product is warranted against defects in material and workmanship while used in normal service for three (3) years from the date of sale to the original customer. SECO-LARM’s obligation is limited to the repair or replacement of any defective part if the unit is returned, transportation prepaid, to SECO-LARM. This...
