Mini Surface-Mount Deadbolt Manual
Troubleshooting:
Problem:
Possible cause:
The sensor in the lock body
Deadbolt does not activate
is too far from the magnet
when the door closes.
in the strike plate.
Deadbolt activates when
Deadbolt may not be
the door is closed, but does
properly going into the
not lock the door.
deadbolt hole in the door.
How to reset unit.
For any other problems
Also Available from SECO-LARM:
Electric Deadbolt
Electric Shear Lock
SD-997B-GBQ
SD-993B-SS
Fail-safe,
Holding force:
12/24 VDC operation.
1,500lb(680kg).
With door-position
Small size for use with
monitoring output.
most metal door jambs.
WARRANTY: This SECO-LARM product is warranted against defects in material and workmanship while used in normal service
for a period of one (1) year from the date of sale to the original consumer customer. SECO-LARM's obligation is limited to the repair
or replacement of any defective part if the unit is returned, transportation prepaid, to SECO-LARM.
This Warranty is void if damage is caused by or attributed to acts of God, physical or electrical misuse or abuse, neglect, repair, or
alteration, improper or abnormal usage, or faulty installation, or if for any other reason SECO-LARM determines that such equipment
is not operating properly as a result of causes other than defects in material and workmanship.
The sole obligation of SECO-LARM, and the purchaser's exclusive remedy, shall be limited to replacement or repair only, at SECO-LARM's
option. In no event shall SECO-LARM be liable for any special, collateral, incidental, or consequential personal or property damages of any
kind to the purchaser or anyone else.
NOTICE: The information and specifications printed in this manual are current at the time of publication. However, the
SECO-LARM policy is one of continual development and improvement. For this reason, SECO-LARM reserves the right to change
specifications without notice. SECO-LARM is also not responsible for misprints or typographical errors.
Copyright © 2014 SECO-LARM U.S.A., Inc. All rights reserved. This material may not be reproduced or copied, in whole or in
part, without the written permission of SECO-LARM.
U.S.A., Inc.
U.S.A., Inc.
SECO-LARM
U.S.A., Inc.
U.S.A., Inc.
U.S.A., Inc.
®
16842 Millikan Avenue, Irvine, CA 92606
Tel: 800-662-0800 / 949-261-2999 Fax: 949-261-7326
4
Solutions:
• Try adjusting the strike plate, lock body position, or shims.
• Make sure the deadbolt is going into the hole and not hitting
the strike plate. If not, you must reposition the strike plate.
• If the deadbolt is going into the hole, it may be hitting the bottom of
the hole (if it is in a wooden door). In this case, drill a deeper hole.
• Ground the green wire momentarily.
• Substitute a problem unit for a working unit in another door frame to
see if it works there.
Electromagnetic Locks
Universal Door Strike
Available with 80, 300,
SD-996C-NUQ
600, 1,200, or 1,300-lb
Field selectable fail-safe or
holding force. All locks
fail-secure operation.
come with a lifetime
UL listed.
warranty.
MiSD997B-1SQ_1401.pmd
Website: www.seco-larm.com
E-mail: sales@seco-larm.com
SECO-LARM U.S.A., Inc.

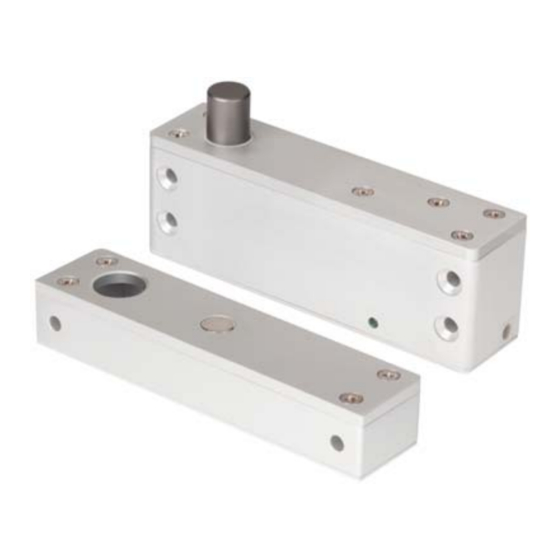

Mini Surface-Mount Deadbolt
