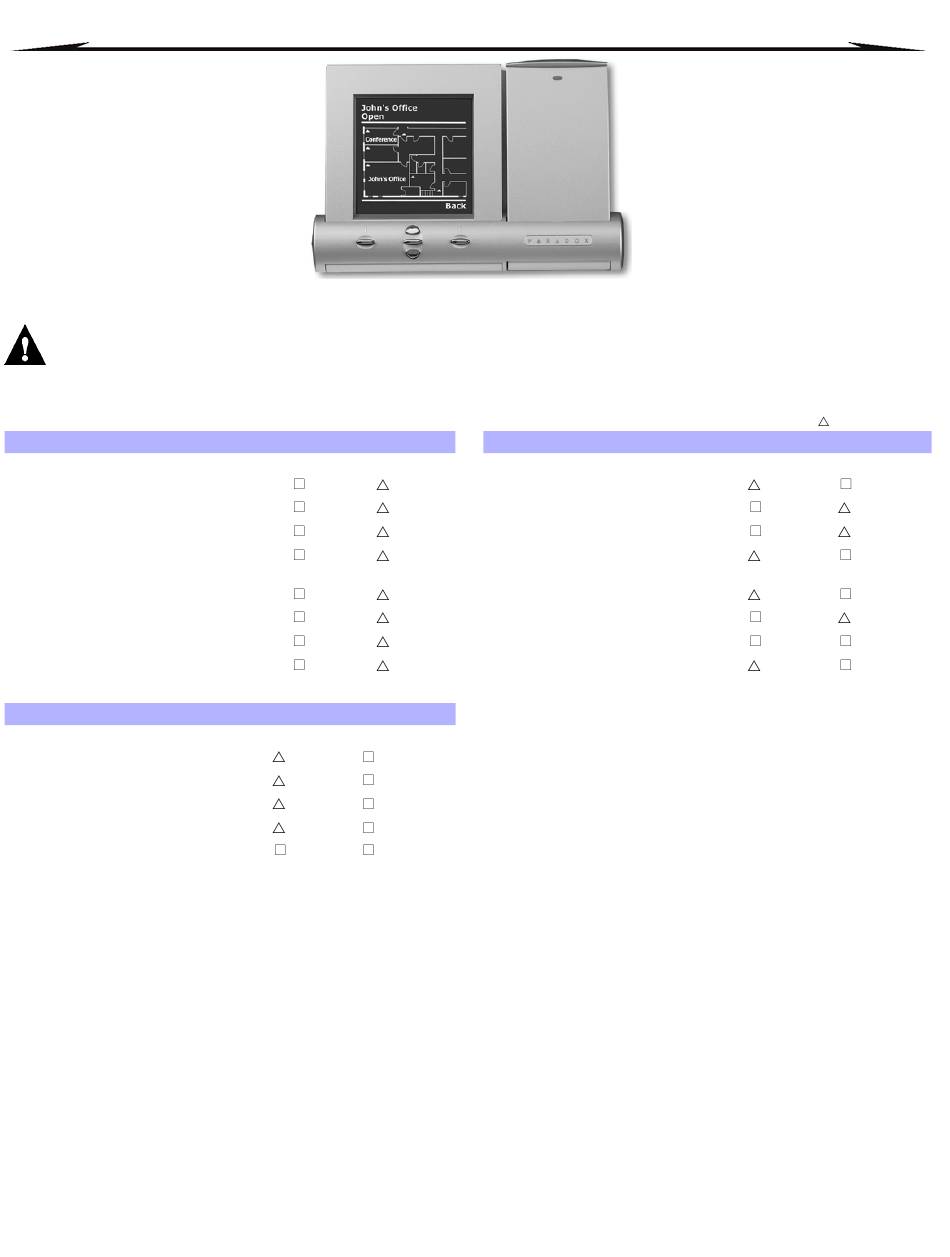

Grafica Graphic LCD Keypad Module
Grafica Keypads can be used with DGP-848 and DGP-NE96 control panels only. Grafica will not function with DGP-48 control panels.
The keypad's serial number can be found on the keypad's PC board. The keypad's serial number can also be viewed by pressing and holding the [0] key,
entering the [
] and then entering section [000].
INSTALLER CODE
SECTION [001] : Keypad Partition Assignment
Option
[1]
Partition 1
[2]
Partition 2
[3]
Partition 3
[4]
Partition 4
[5]
Partition 5 (DGP-NE96 only)
[6]
Partition 6 (DGP-NE96 only)
[7]
Partition 7 (DGP-NE96 only)
[8]
Partition 8 (DGP-NE96 only)
SECTION [003] : Beep on Trouble
Option
[1]
System & Clock Trouble Beep
[2]
Communicator Trouble Beep
[3]
Module & Combus Trouble Beep
[4]
All Zone Trouble Beep
[5] to [8] Future Use
Section #
[004]
Confidential Mode Timer
___/___/___ (005 to 255 seconds; Default: 120 seconds)
USING THE MEMORY KEY
[100]
Download all from the Memory Key (Grafica keypad sections [001] to [004] and all user, zone, door and area labels) to the Grafica keypad.
[110]
Copy the Grafica keypad sections [001] to [004] and all user, zone, door and area labels to the Memory Key.
Download Contents of the Memory Key to the Grafica Keypad.
1)
Insert the Memory Key onto the keypad's connector (refer to "Memory Key Connector" on page 4).
2)
To download the contents of the Memory Key, enter the keypad's programming mode and enter section [100].
3)
Once the keypad emits a confirmation beep, wait for a second confirmation beep and then remove the Memory Key.
DNE-K07
OFF
ON
Disabled
Enabled
Disabled
Enabled
Disabled
Enabled
Disabled
Enabled
Disabled
Enabled
Disabled
Enabled
Disabled
Enabled
Disabled
Enabled
OFF
ON
Disabled
Enabled
Disabled
Enabled
Disabled
Enabled
Disabled
Enabled
N/A
N/A
Digiplex & DigiplexNE - 1 - Modules Programming Guide
SECTION [002] : System Options
Option
[1]
Display Code Entry
[2]
Display Exit Delay
[3]
Display Entry Delay
[4]
Confidential Mode
(not for UL installations)
[5]
To exit Confidential Mode
[6]
Exit Delay Beep
[7]
Future Use
[8]
Keypad Tamper
= Default setting
OFF
ON
Enabled
Disabled
Disabled
Enabled
Disabled
Enabled
Enabled
Disabled
Press Button
Enter code
Disabled
Enabled
N/A
N/A
Enabled
Disabled
