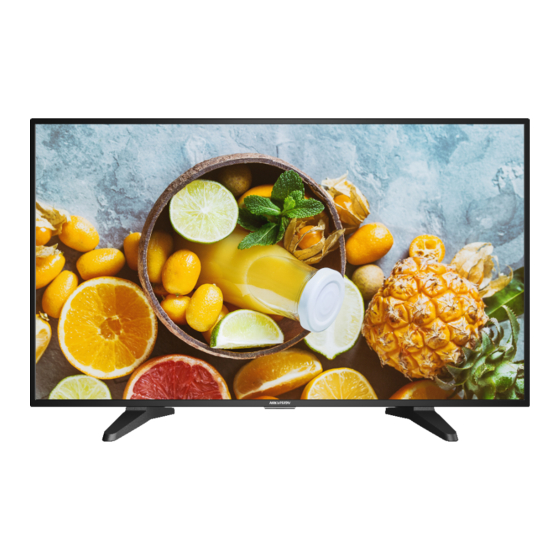

HIKVISION DS-D5032 Series User Manual

32/40-inch lcd display unit
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
32/40-inch LCD Display Unit
User Manual
G6AUM315000009

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-D5032 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HIKVISION DS-D5032 Series

Summary of Contents for HIKVISION DS-D5032 Series

  • Page 1 32/40-inch LCD Display Unit User Manual G6AUM315000009...
  • Page 2 Thank you for purchasing our product. If there is any question or request, please do not hesitate to contact us. This manual may contain several technically incorrect places or printing errors, and the content is subject to change without notice. The updates will be added into the new version of this manual.
  • Page 3 Regulatory Information EU Conformity Statement This product and - if applicable - the supplied accessories too are marked with"CE"and comply therefore with the applicable harmonized European standards listed under the EMC Directive 2014/30/EU,the LVD Directive 2014/35/EU,the ROHS Directive 2011/65/EU. 2002/96/EC (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union.
  • Page 4 The content of this manual is furnished for informational use only, is subject to change without notice, and should not be construed as a commitment by Hikvision Digital Technology Co., Ltd. (Hikvision). Hikvision assumes no responsibility or liability for any errors or inaccuracies that may appear in the book.

  • Page 5: Table Of Contents

    TABLE OF CONTENTS Important safeguards ................2 Introduction ....................4 Features ..................... 5 Assembling the monitor ................6 Wall hanging Standard ................7 The function of the interface ..............7 Front panel controls ................. 8 Control panel ....................8 Changing a monitor parameter ..............9 Hot keys ....................

  • Page 6: Important Safeguards

    IMPORTANT SAFEGUARDS 1. Installation cautions • Do not block any ventilation openings. • Always ensure that the monitor is located in a well-ventilated area to preventthe unit from overheating. • Only use accessories specified by the manufacturer or those sold with the product •...
  • Page 7 IMPORTANT SAFEGUARDS 8. Mains plug (2 pin/3 pin) • Do not remove the grounding or earth connection from the power supply / mains plug. • Always remember to unplug the monitor from the power supply under the following circumstances if the monitor will not be used for a long period of time, if the power supply cable or plug/connector is damaged or if the monitor housingis damaged or broken.

  • Page 8: Introduction

    INTRODUCTION This manual explains how to correctly install, operate and get the bestperformance from your monitor. Please read this user manual carefully before installing your monitor then keep it near your monitor for quick reference. First, please check that the contents of the box correspond with the following checklist: •...

  • Page 9: Features

    FEATURES • The monitor is designed for use in a small work area or for those who need more work space on the desk. • The convenient and user-friendly onscreen display allows for easy and accurate adjustments of screen size, position and screen color. •...

  • Page 10: Assembling The Monitor

    ASSEMBLING THE MONITOR The monitors are designed for use on a desktop. The arm of the monitor stand is shipped preinstalled on the monitor. To assemble the monitor: 1. Put a smooth pad or cloth on a level surface. Place the monitor on it facing downwards.

  • Page 11: Wall Hanging Standard

    WALL HANGING STANDARD The monitor’s installation surface is compatible with other types of VESA standard stands. Hole spacing: 100 x 100 mm Screw length: 8 to12 mm THE FUNCTION OF THE INTERFACE Service：USB display and service input. HDMI：HDMI signal input. DVI：DVI signal input.

  • Page 12: Front Panel Controls

    FRONT PANEL CONTROLS Control panel 1. POWER indicator Show both normal operation and power management status with power LED 2. POWER Switch the monitor on and off. 3. MENU Turn the OSD window on. Secondary Function: Turns the OSD window off and moved from sub menu to top menu in the OSD window.

  • Page 13: Changing A Monitor Parameter

    FRONT PANEL CONTROLS Changing a monitor parameter Press the MENU button on the front panel to obtain the OSD menu screen. 1. Use Up-Down buttons to select the menu. 2. Use AUTO button to select the submenus. 3. Use Up-Down buttons to select a submenu function. 4.

  • Page 14: Osd Function

    OSD FUNCTION Configure the monitor using the on-screen display (OSD) menus and submenus. Changes are immediately saved and implemented. VGA menu ● Video (Advanced Control) (Auto Config)
  • Page 15 OSD FUNCTION 1. Brightness Adjust the brightness of the image. 2. Contrast Adjust the contrast of the image, the difference between light and dark areason the screen. 3. Color Temperature Choose a different preset color temperature or set your own customized color parameters.(Normal/ Warm/ Cool/ User).

  • Page 16: Cam Menu

    OSD FUNCTION Cam menu ● Video (Advanced Control) 1. Auto Picture Select the picture mode (Standard/Movie/ECO/Personal/ Vivid). 2. Brightness Adjust the brightness of the image. 3. Contrast Adjust the contrast of the image, the difference between light and dark areason the screen.

  • Page 17: Hdmi Menu

    OSD FUNCTION Sharpness Adjust the display image quality (if the screen proceeds to scaling up). 7. Color Temperature Choose a different preset color temperature or set your own customizedcolor parameters (Normal/ Warm/ Cool/ User). 8. Advanced Control 8-1 Noise Reduction Reduce the noise in the picture due to poor reception or poor picture quality.
  • Page 18 OSD FUNCTION (Advanced Control) 1. Auto Picture Select the picture mode (Standard/Movie/ECO/Personal/ Vivid). 2. Brightness Adjust the brightness of the image. 3. Contrast Adjust the contrast of the image, the difference between light and dark areason the screen. 4. Color Adjust the color of the image.

  • Page 19: Dvi Menu

    OSD FUNCTION 7-3 DCR Turn DCR on or off. 7-4 DCC Turn DCC on or off. 7-5 Picture Format Select the aspect ratio (Just Scan/ Over Scan) DVI menu ● Video (Advanced Control)
  • Page 20 OSD FUNCTION 1. Auto Picture Select the picture mode (Standard/Movie/ECO/Personal/ Vivid). 2. Brightness Adjust the brightness of the image. 3. Contrast Adjust the contrast of the image, the difference between light and dark areason the screen. 4. Color Adjust the color of the image. 5.
  • Page 21 OSD FUNCTION ● Audio 1. Sound Mode Choose a different preset sound mode or your own customized sound. (Music/ Speech/ Personal/ Standard) 2. Balance Adjust the sound balance of the left and right speakers. 3. Bass When you select Personal mode, adjust the bass sound. 4.
  • Page 22 OSD FUNCTION ● Setting 1. Menu Language Select the OSD language. 2. Backlight Adjust the brightness of the image. 3. Menu Time Out Adjust the display time of the OSD menu (10 to 60 seconds). 4. Menu Transparency Adjust the OSD transparency. Blue Screen When there is no signal input, select the blue background color.
  • Page 23 OSD FUNCTION ● Child Lock 1. Keypad Lock Turn the keypad lock on or off. Keyboard lock unlock method:Long press "MENU" key for about 8 seconds, can be unlocked.

  • Page 24: Self-Diagnosis

    SELF-DIAGNOSIS If there is no image, the Self-Diagnosis screen will be displayed. The self-diagnosis function checks if the status of the monitor screen is No Signal, Out of Range or None Supported. The No Signal screen is displayed when the D-Sub signal connector is connected but the status of the monitor is on DPMS mode.
  • Page 25 Remote Control FUNCTION（optional） POWER Turns the monitor on from stand-by or off to stand-by mode. TV/AV (input source) Selects the signal source from multiple input sources. MUTE Turns the sound on and off. NUMBER Buttons LAST CH Not used. INFO Information display.

  • Page 26: Troubleshooting

    TROUBLESHOOTING Symptom Check Adjust Clock to set the screen position and adjust the Clock Picture is jittery value carefully until there is no noise displayed. Check if the power switch and computer power switch are in the On position. Check if the signal cable is correctly connected to thevideo No picture card.

  • Page 27: Specifications

    SPECIFICATIONS Items DS-D5032 Serial 32" (80.1 cm) Screen size Panel Max. Resolution 1920 x 1080 H: 30 kHz –80 kHz Frequency V: 50 Hz –76 Hz (H/V) VGA in (15 Pin D-Sub) HDMI in DVI in Interface BNC (in/out) PC Audio in Head phone out Speaker power 2 W x 2...
  • Page 28 SPECIFICATIONS...
  • Page 29 SPECIFICATIONS Items DS-D5040 Serial 40" (100.3cm) Screen size Panel Max. Resolution 1920 x 1080 Frequency H: 30 kHz –80 kHz (H/V) V: 50 Hz –76 Hz VGA in (15 Pin D-Sub) HDMI in DVI in Interface BNC (in/out) PC Audio in Head phone out Speaker power 2 W x 2...
  • Page 30 SPECIFICATIONS φ4...

This manual is also suitable for:

Ds-d5040 seriesDs-d5032fc-a
